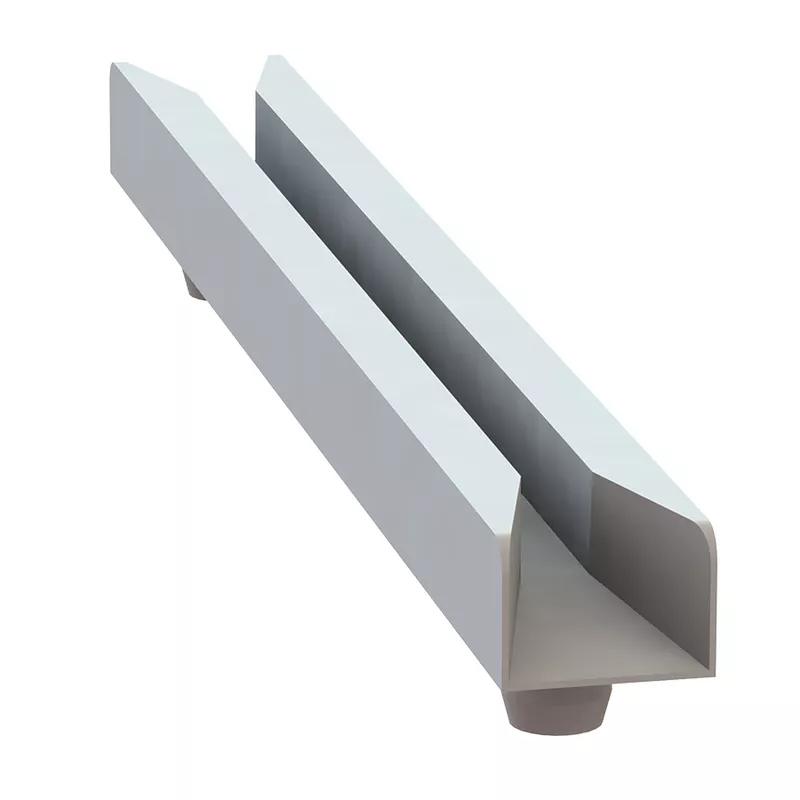

Horizontal Card Guide - Natural ; Polyamide 6.6 ; Accepts Panel Thickness1.6 mm | 0.063 in ; Overall Length 63.5 mm | 2.5 in
Snap-in horizontal tension card guide with tapered ends that makes PCB insertion easier and helps secure the PCB into place providing support in tight spaces. Manufactured with material rated UL94-V2
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.7216 |
| 10000 - 24999 | $0.656 |
| 25000 + | $0.6015 |
Useful Information
Documents
Specifications
Imperial
Metric
| Accepts Panel Thickness | 0.063 in |
|---|---|
| Distance Between Fixing Holes | 2 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness | 0.087 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness | 0.047 in |
| Overall Length | 2.5 in |
| Color | Natural |
| Full Material | Polyamide 6.6 |
| Mounting Method | Push-Fit |
| Material Flammability Standard | UL94 V-2 |
