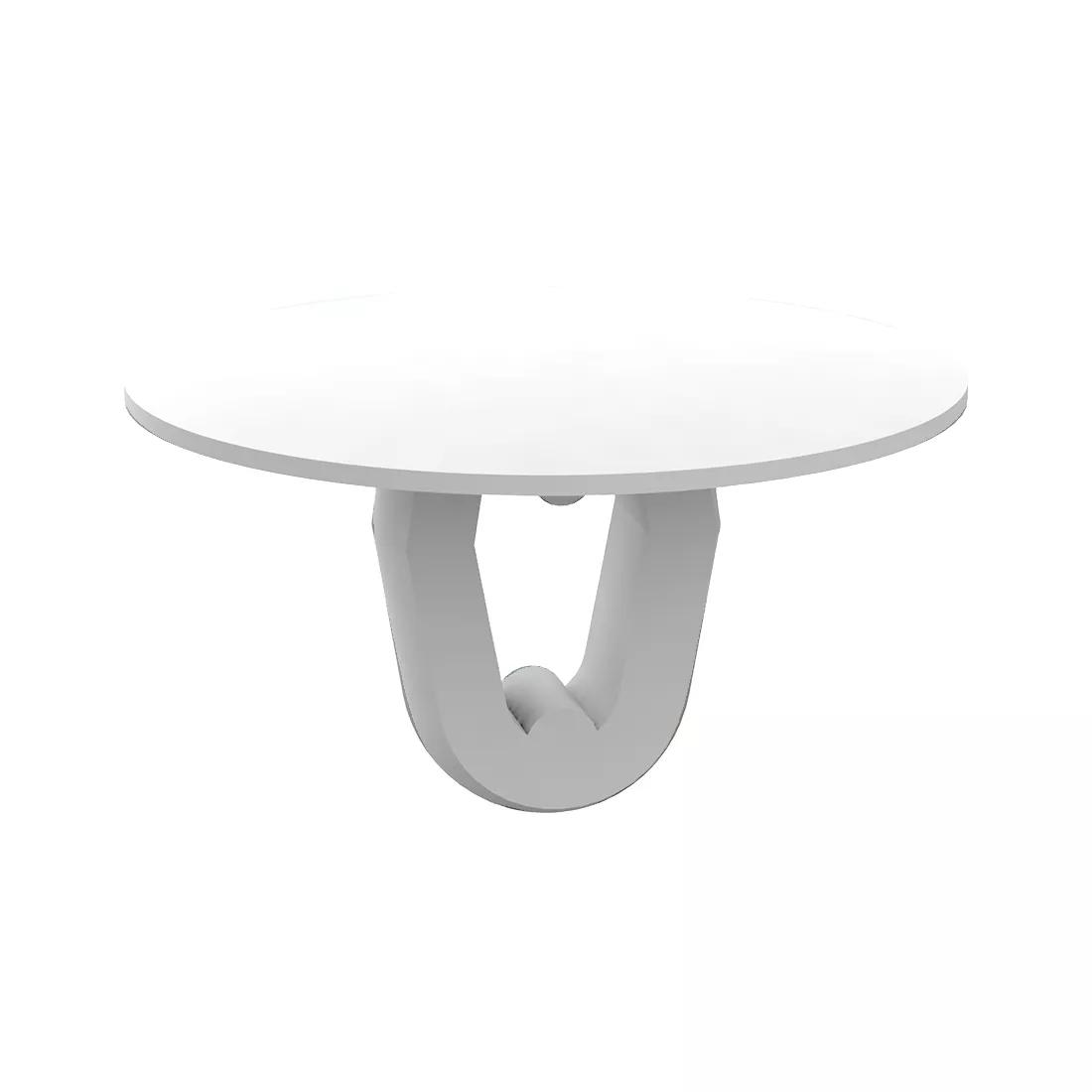

Canoe Clip - Natural Nylon; Compatible Hole Diameter Range 8.5 - 8.8 mm | 0.335 - 0.346 in; Compatible Panel Thickness Range 1.6 - 3.6 mm | 0.063 - 0.142 in
This Canoe Clip provides a fast way to assemble and secure materials together. For installation, snap the clip into the round panel hole and apply pressure to the head of the clip. It provides excellent electrical insulation, is removable and resilient to vibration, abrasion and corrosion.
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 2499 | $0.5599 |
| 2500 - 12499 | $0.5319 |
| 12500 + | $0.5053 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 11.4 mm |
|---|---|
| Head Diameter | 22.0 mm |
| Head Height | 1.3 mm |
| Compatible Hole Diameter Range | 8.5 - 8.8 mm |
| Compatible Panel Thickness Range | 1.6 - 3.6 mm |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Colour | Natural |
| Rivet Fitting Style | Push-In |
| Rivet Head Shape | Truss |
