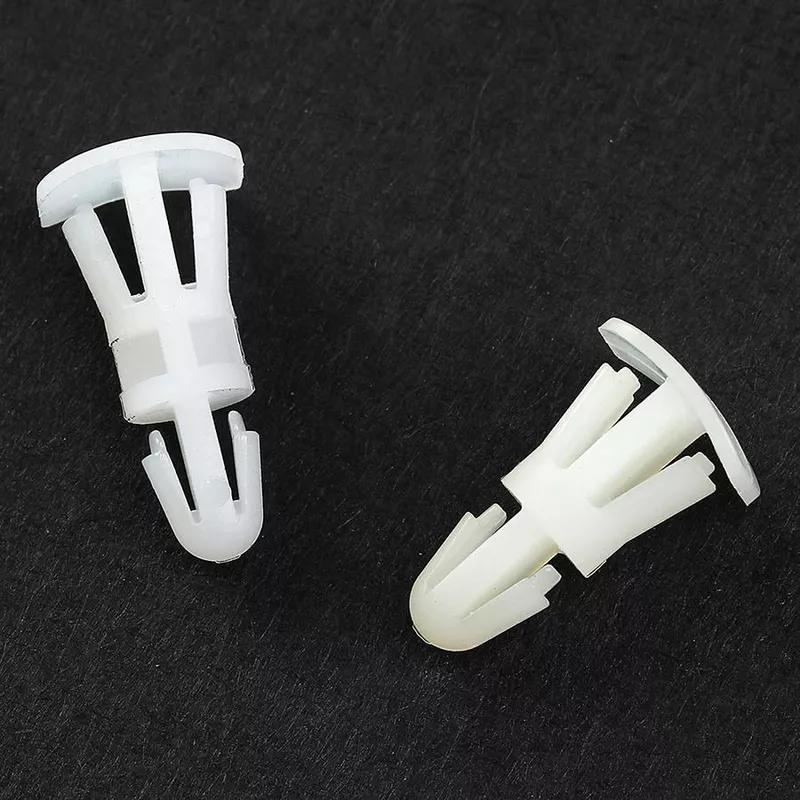

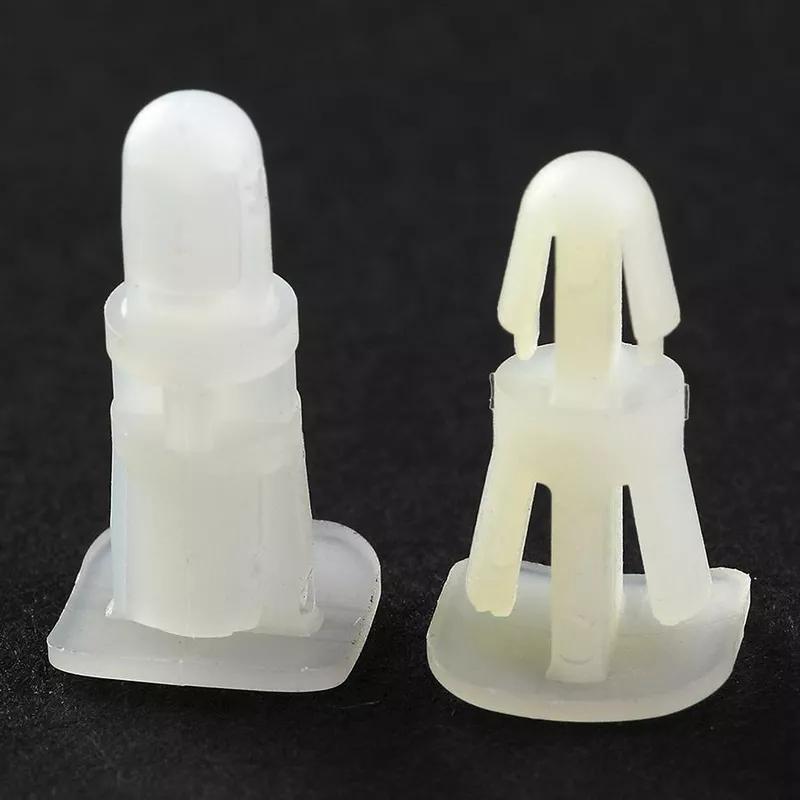

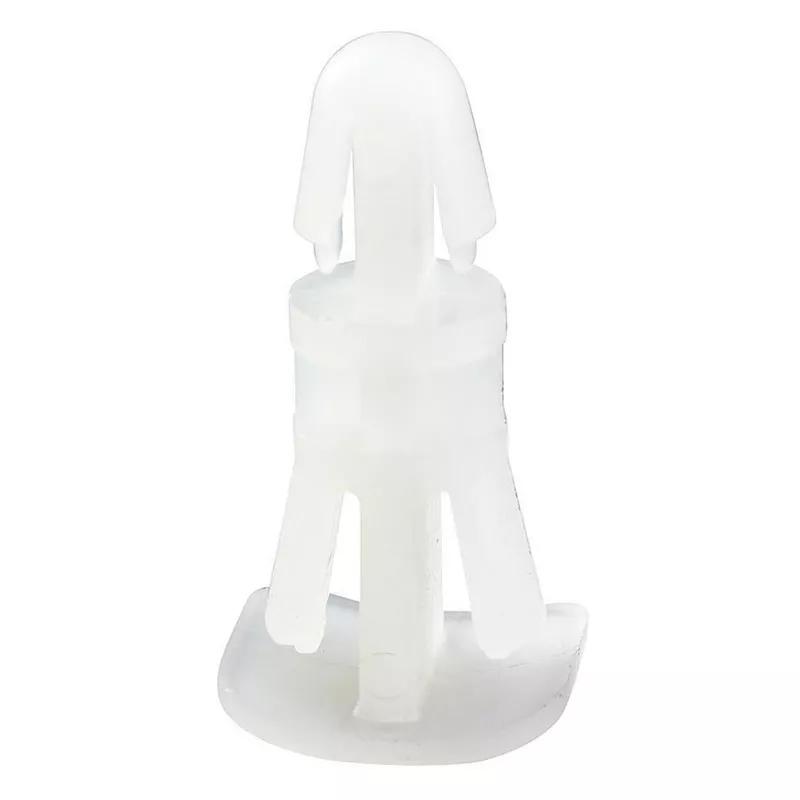

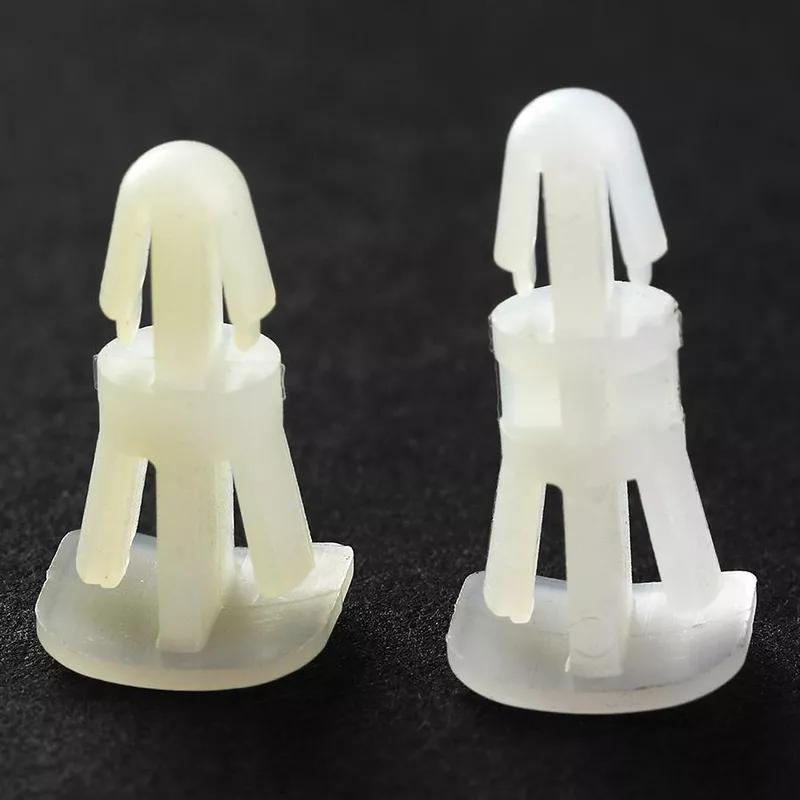

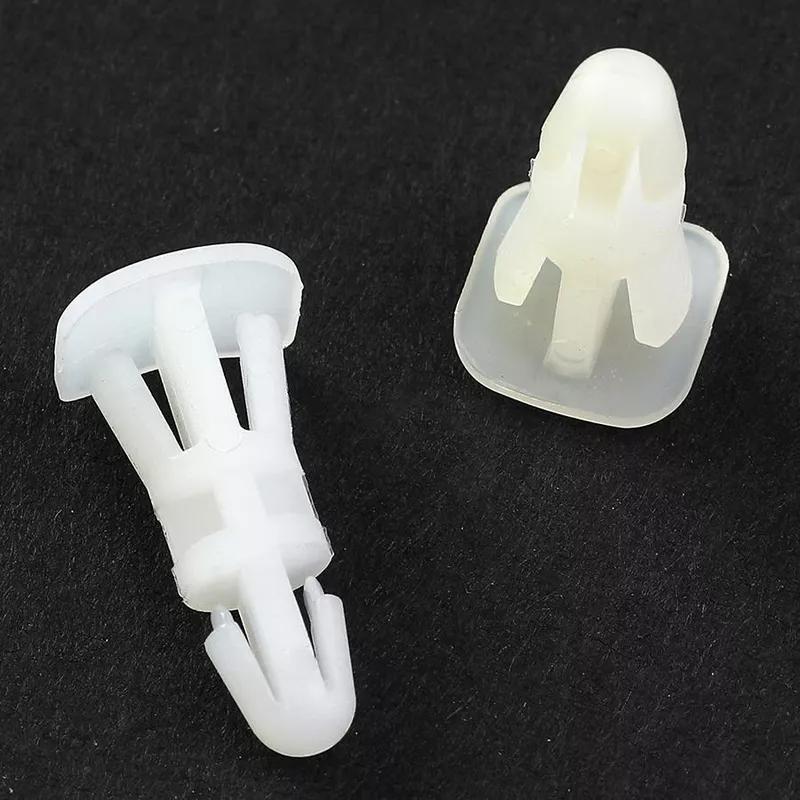

Reverse Locking Support - Snap-Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.062 in ; Spacer Length 10 mm | 0.394 in ; Style 2
Reverse mount locking PCB support is designed to be pushed through from the outside of the chassis. Locking push mount securely holds PCB in place.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.2276 |
| 10000 - 24999 | $0.207 |
| 25000 + | $0.1899 |
Useful Information
Specifications
Imperial
Metric
| Dome Length | 0.315 in |
|---|---|
| Dome Width | 0.315 in |
| Hole Diameter A | 0.157 in |
| Hole Diameter B | 0.217 in |
| Locking Head Height A | 0.177 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Maximum Panel Thickness B | 0.039 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness B | 0.020 in |
| Panel Thickness A Range | 0.063 in |
| Panel Thickness B Range | 0.020 - 0.039 in |
| Spacer Length | 0.394 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Snap Lock Fix |
