Reverse Locking Support - 15.9 mm | 0.625 in ; UL94 V-2 ; PA 6

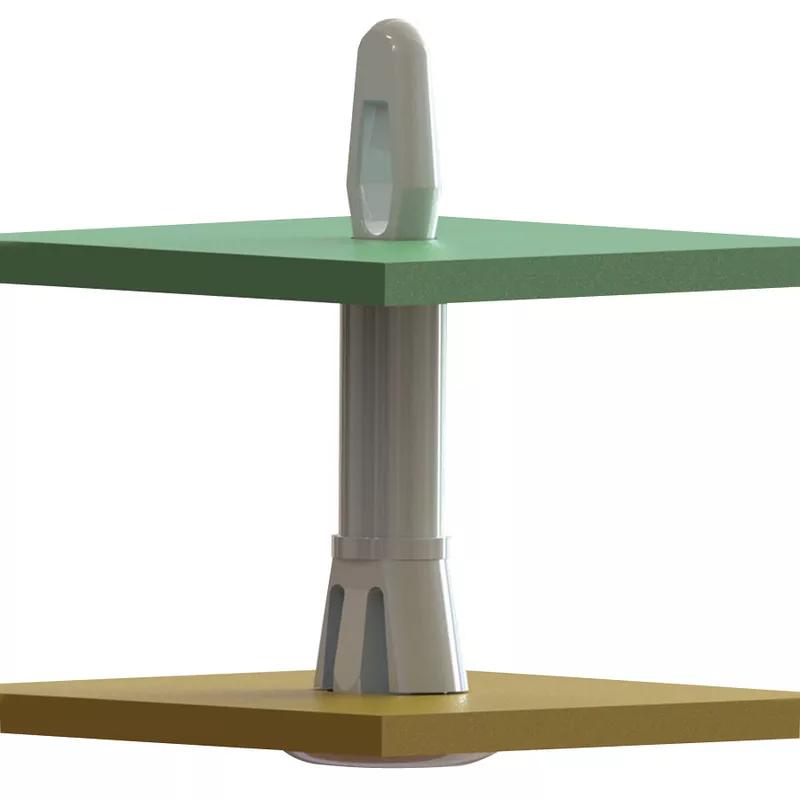

Reverse mount PCB support is designed to be pushed through from the outside of the chassis. Non-locking push mount securely holds PCB in place.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.3719 |
| 10000 - 24999 | $0.3381 |
| 25000 + | $0.3098 |
Useful Information
Specifications
Imperial
Metric

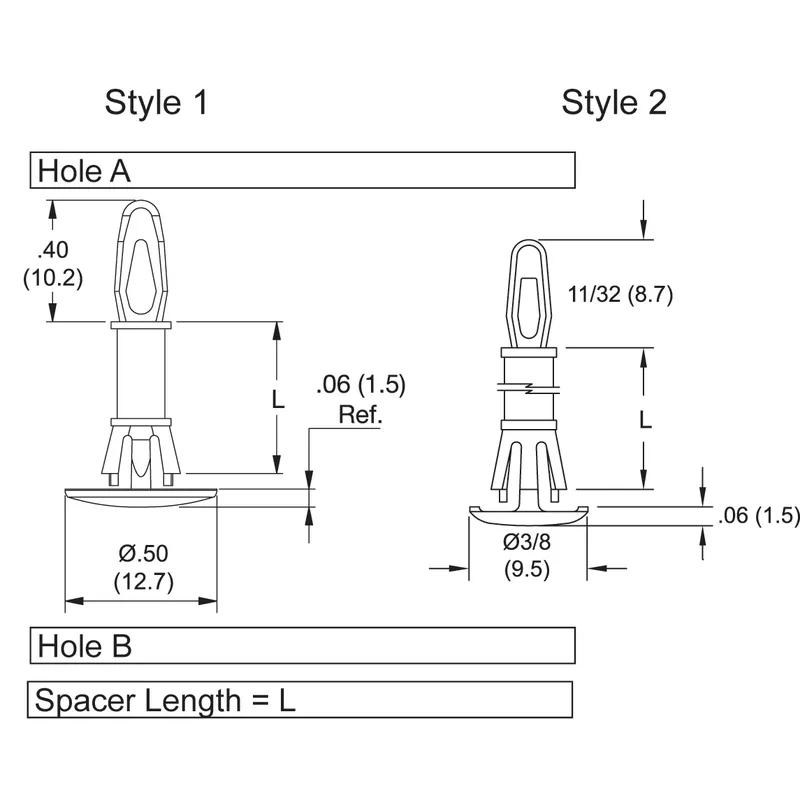

| Hole Diameter A | 0.157 in |
|---|---|
| Hole Diameter B | 0.213 in |
| Locking Head Height A | 0.402 in |
| Locking Head Height B | 0.059 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Maximum Panel Thickness B | 0.079 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness B | 0.047 in |
| Panel Thickness A Range | 0.063 in |
| Panel Thickness B Range | 0.047 - 0.079 in |
| Spacer Length | 0.626 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Fit Fix |
| Hole B Fix Type | Snap Lock Fix |
| Material | PA 6 |
| Material Flammability Standard | UL94 V-2 |
| Style | 1 |
