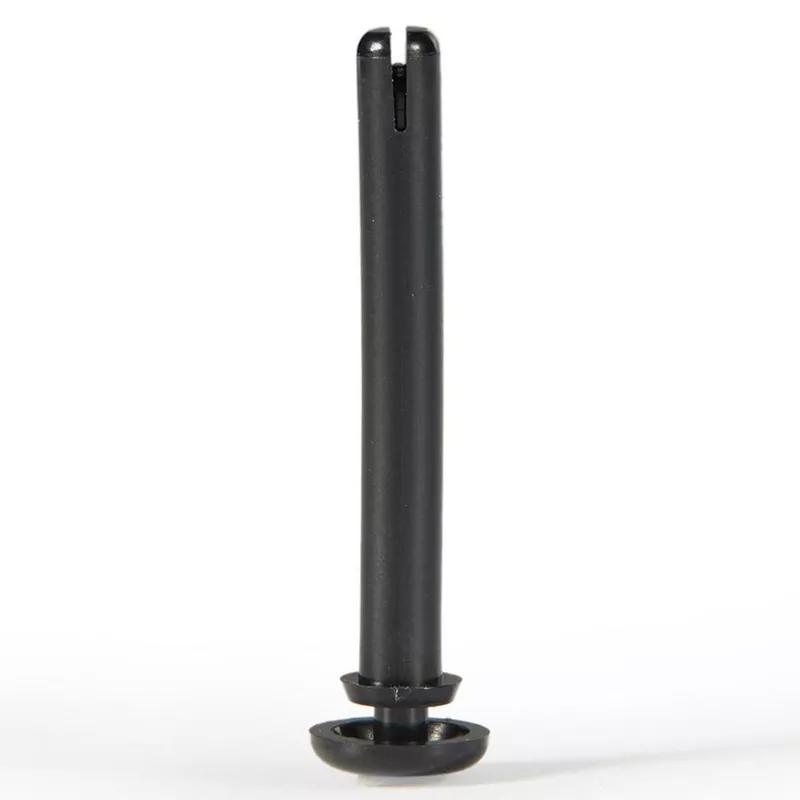

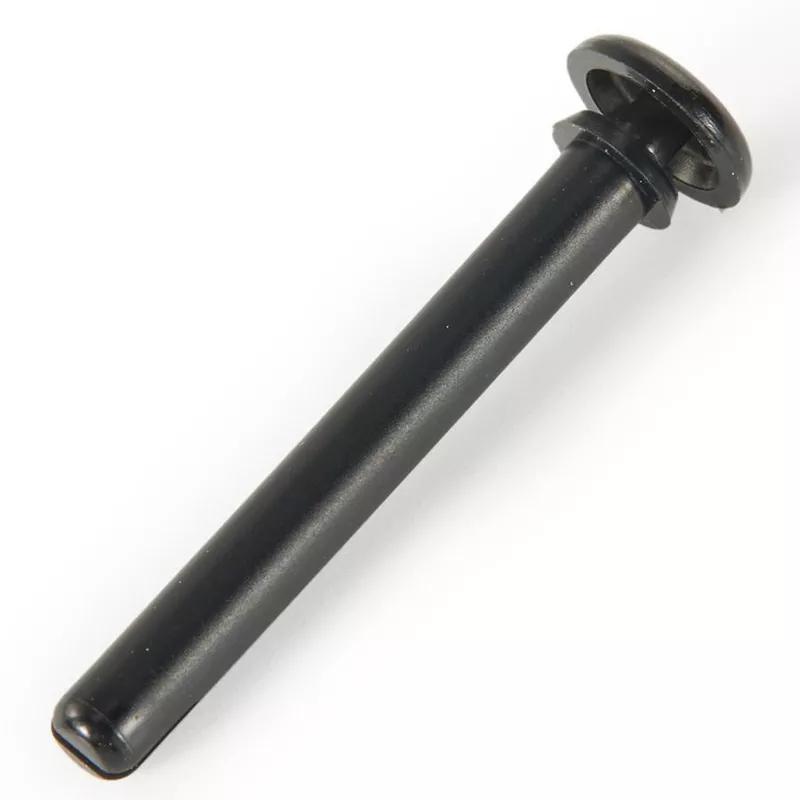

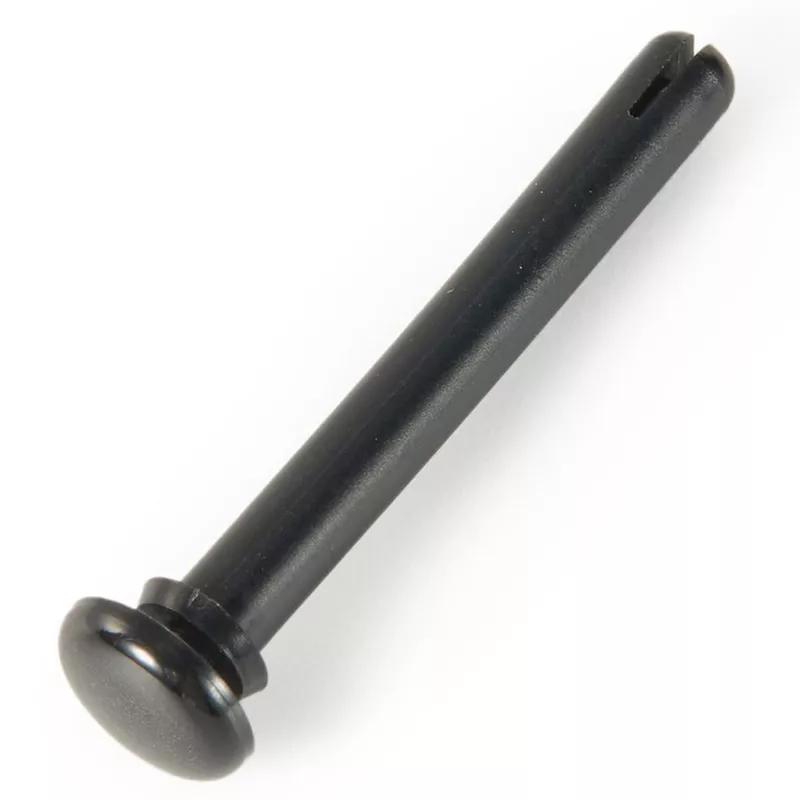

Snap Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in; Compatible Panel Thickness Range 20.5 - 21.5 mm | 0.807 - 0.846 in; Black; PA
Snap rivets are designed for assemblies requiring fast, economical fasteners with tool-free installation. These a have a domed head and are made from black Nylon giving them good thermal and electrical insulation properties. Rated to UL 94 V-2.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.4423 |
| 5000 + | $0.4203 |
Useful Information
Documents
Specifications
Imperial
Metric

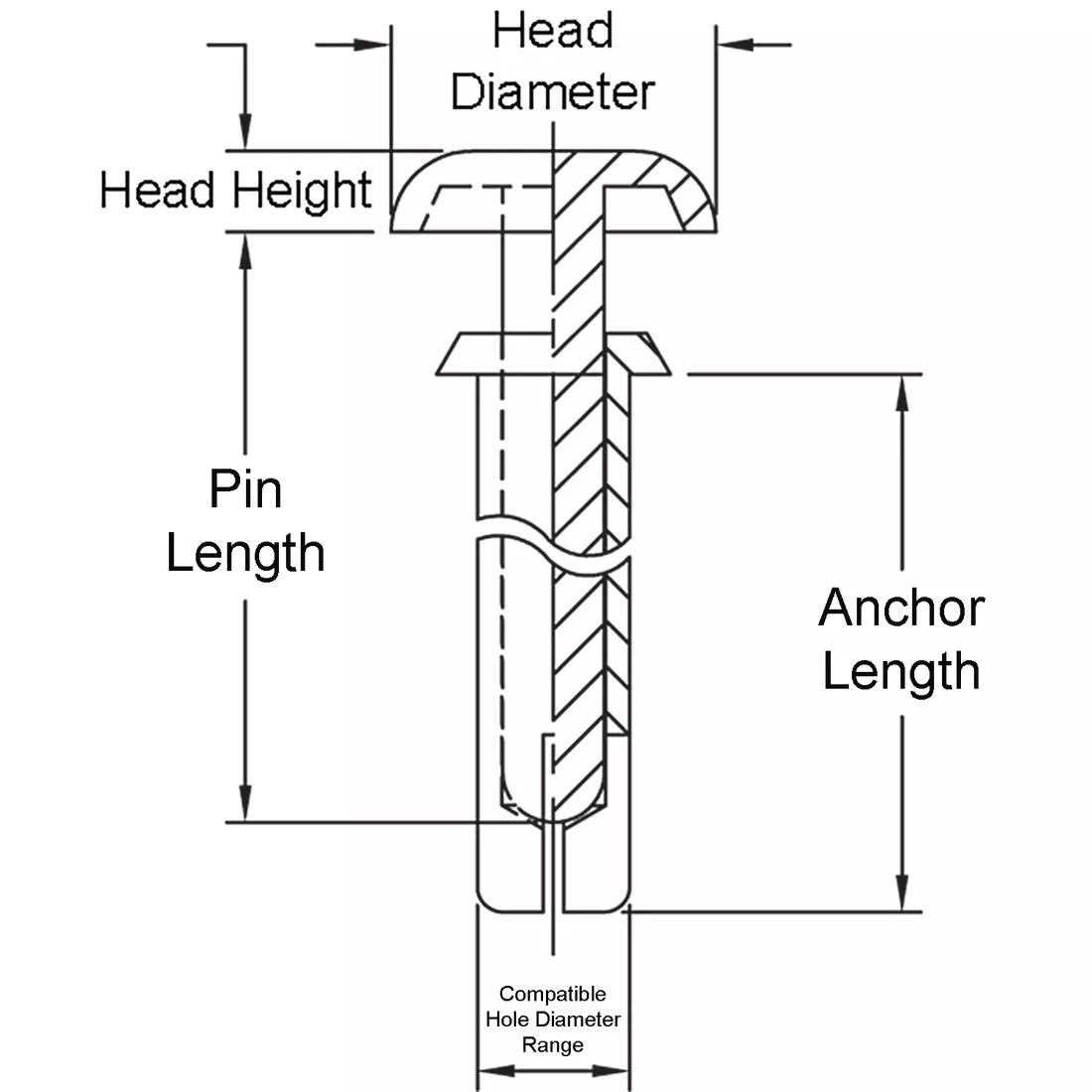

| Anchor Length | 23.0 mm |
|---|---|
| Pin Length | 24.0 mm |
| Pin Head Diameter | 6.4 mm |
| Pin Head Height | 1.6 mm |
| Head Diameter | 6.4 mm |
| Extraction Force | 8.0 kg |
| Colour | Black |
| Full Material | Polyamide |
| Rivet Type | Snap Rivet |
| Rivet Head Shape | Mushroom |
| Rivet Fitting Style | Push-In |
| Material Flammability Standard | UL94 V-2 |
| Commodity Code | 3926909790 |
