What are lift-off hinges?
Lift-off hinges allow doors, lids, or panels to be easily removed without the need to unscrew or unbolt the hinge components. These hinges are designed so that one part of the hinge can slide or lift off from the other, providing quick and convenient access. This guide is designed to give you a deeper understanding of lift-off hinges, covering:
How do lift-off hinges work?
Lift-off hinges are designed for easy removal. They consist of two parts:
● A fixed leaf attached to the stationary surface
● A removable leaf mounted to the door

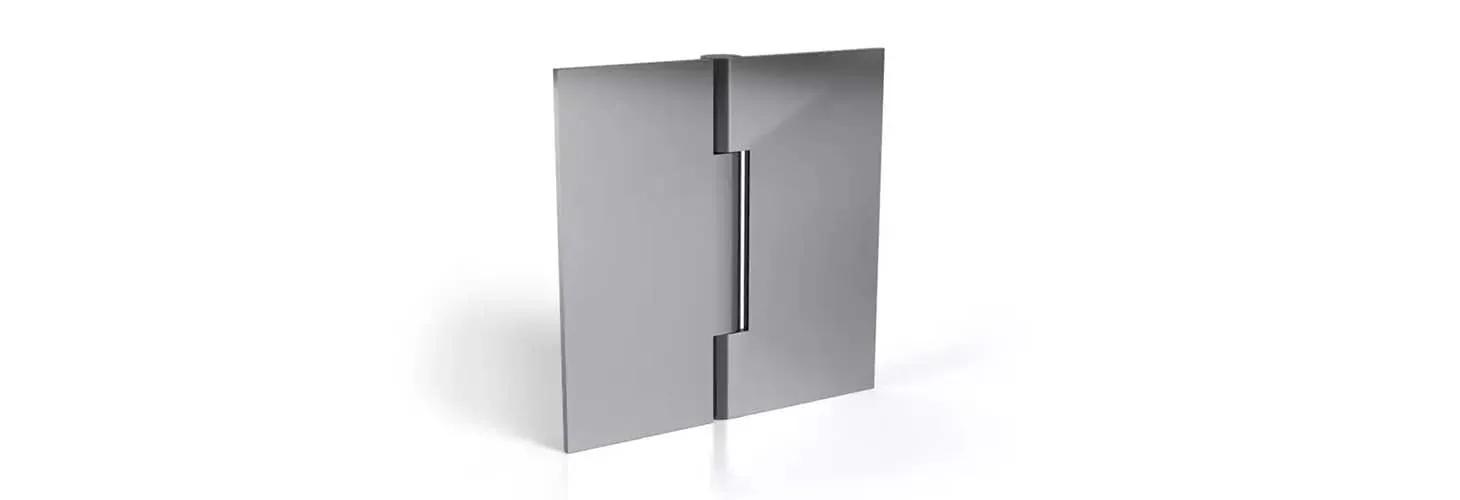

The fixed leaf contains a pin, while the removable leaf does not, as shown in the example here of a metal in-line lift-off hinge. This allows the door to be lifted off the hinge without needing to detach either leaf or a separate pin. By lifting the door or panel upwards, the two parts of the hinge disengage, allowing easy removal.
Reattachment is just as simple – the door or panel is aligned and lowered back onto the lift-off hinge. This functionality makes lift-off hinges particularly valuable where quick and easy access is essential.
Where to install lift-off hinges
Lift-off hinges are commonly used in applications where frequent removal is necessary or where ease of maintenance and accessibility are priorities. Just some examples include:
● Industrial machinery
Machine covers, panels and access doors
● Electrical and control panels
Cabinets, switchgear and panels
● Conveyor systems
Access doors and safety covers
● Buildings

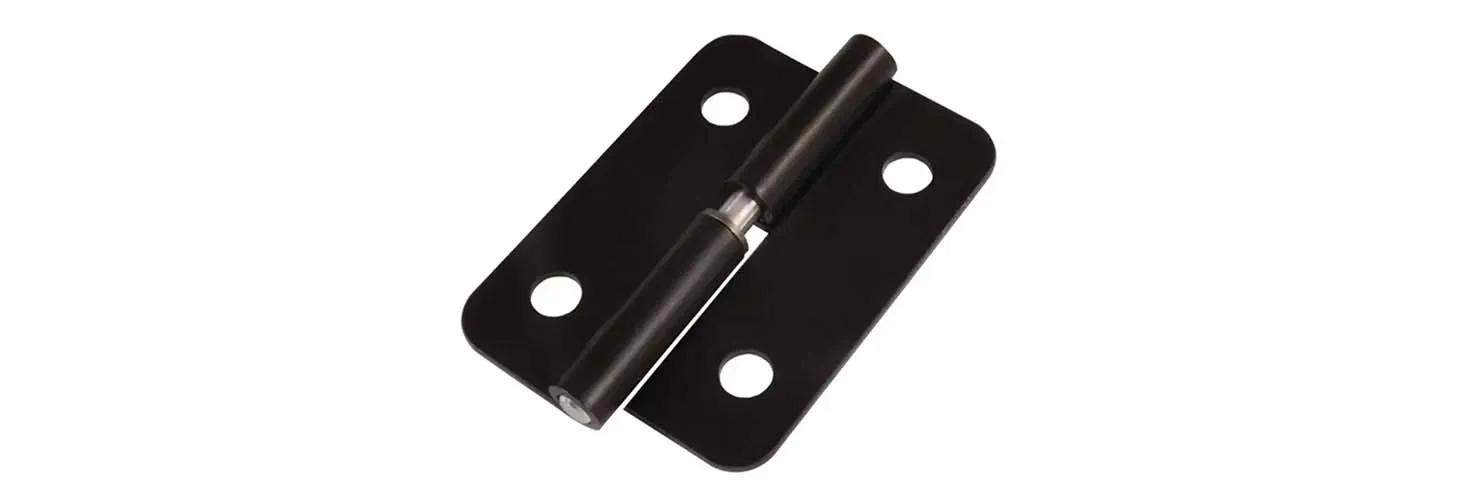

Removal of doors for large or frequent deliveries – lift-off flag hinges, as seen here, are especially convenient for this application
What are the benefits of lift-off hinges?
Lift-off hinges offer a range of advantages that make them an invaluable component. Their distinctive design and construction provide solutions to common challenges across various industries and applications.
● Quick removal
Lift-off hinges enable quick and tool-free removal of doors, panels, or lids, boosting efficiency in industrial and commercial settings.
● Easy accessibility
Facilitating easy removal and reattachment, a lift-off hinge improves access for maintenance, repairs, and cleaning.
● Simplified maintenance
Regular inspections and servicing become more efficient with lift-off hinges, reducing downtime and labour costs.
● Durability
Our own lift-off hinges are constructed from high-quality materials such as steel, stainless steel and zinc alloys, and can withstand harsh environments.
● Security
Lift-off flag hinges offer an added layer of security, as some can be welded on and removed from the inside, making it difficult for intruders to gain entry. It’s also worth noting that lift-off flag hinges offer a clean aesthetic when the door is closed and the hinge is concealed.
Standard hinges vs lift-off hinges
Standard hinges typically feature two plates, or leaves, joined by a pin, forming a permanent connection. These hinges allow doors or panels to swing open and closed but are not designed for frequent removal. Installation of standard hinges involves screwing or bolting them into place, with the intention that they remain fixed for the duration of the door or panel's lifespan. Removing or installing these hinges requires tools, which reflects their permanent nature and suitability for applications where the door or panel is not expected to be frequently removed. Let’s compare standard and lift-off hinges:
| Feature | Standard hinges | Lift-off hinges |
| Design | Two plates (leaves) joined by a pin | Two interlocking leaves, one with a pin that lifts off |
| Removal | Requires tools | Tool-free, lifts off vertically |
| Installation | Screwed or bolted into place | Screwed or bolted into place, then door easily lifts on |
| Functionality | Allows doors/panels to swing open and close | Allows doors/panels to swing open with easy option to remove and reattach doors or panels |
| Frequency of removal | Not designed for frequent removal | Designed for frequent removal |
| Applications | Doors, cabinets, fixed panels | Doors, cabinets, fixed panels |
| Load capacity | Supports various loads depending on the hinge size and type | Supports various loads depending on the hinge size and type |
| Alignment | Requires precise installation but remains fixed | Requires proper alignment for smooth lifting action |
| Maintenance | More challenging due to the need for tools | Easier maintenance with quick removal and reattachment |
| Space requirements | Needs horizontal space to open properly | Needs less space to open before being lifted off – ideal for enclosures in tight spaces |
Learn more about standard – and not so standard – hinges in our guide, Types of hinges and where to use them.
Download free CADs and try before you buy
Free CADs are available for most solutions, which you can download. If you’re not quite sure which lift-off hinge will work best for your application – lift-off flag hinge or screw-mount flag hinge, for example – our experts are always happy to advise you. Free samples of some products are also available – just ask us.
Whatever your requirements, you can depend on fast despatch.
