A guide to toggle latches
Toggle latches are essential components in many industries, known for their secure fastening, ease of use, and durability. The more you know about these fastening solutions and their applications, the better you can choose the right one for your project. We’ve put together this guide to help you understand toggle latches, along with alternative industrial latches. We’ll cover:
Key industry applications: where are toggle latches used?
Alternatives to toggle latches
What are toggle latches?
They’re mechanical devices that securely attach two surfaces when closed. This can be panels, or even objects. When opened, the surfaces separate. Toggle latches, also known as draw latches, are commonly used in industrial environments such as for flaps, covers, or machine cladding.
Toggle latches are designed to withstand stresses, ensuring a secure and reliable fastening even in high-vibration environments. Some toggle latches even come with anti-vibration features, such as a sprung-loaded mechanism or locking mechanism, that help to absorb the shock and vibrations.
How do toggle latches work?
Toggle latches have locking mechanisms, or lever mechanisms that secures and opens the latch. They use a calibrated operating system of levers and pivots. The toggle action has an over-center lock point, which ensures sturdy locking when fully closed.
Tension is generated when the loop is hooked onto the catch plate and the lever is pressed down. Once the toggle reaches a certain point, it clamps down, creating a secure fastening. To release the latch, the lever is lifted and the tension is released, allowing the toggle to disengage from the hook.
Types of toggle latches
Understanding your options can help you choose the right toggle latch for your specific needs.
Draw latches and keepers – plastics and rubber
Adjustable draw latches include rubber draw latches and stainless steel toggle latches. These snap-down draw latches feature a concealed keeper that is fixed beneath the latch, providing a low-profile design. Our adjustable latches are available with or without padlocking options.
Draw latches and keepers – over-center compression
Our over-center draw latch, securely closes doors and panels while preventing noise, panel movement, and rattling caused by vibrations.
The over-center draw latch design features a low profile and a concealed keeper fixed beneath the latch, contributing to its sleek appearance. Over-center latches are easy to use and provide effective gasket compression. Includes both locking and non-locking options.
Key industry applications: where are toggle latches used?
Toggle latches are widely used across various industries due to their versatility and secure fastening capabilities. Key applications include securing panels and enclosures in automotive and aerospace manufacturing, fastening doors and hatches in marine and industrial settings.
They also provide quick-release latch mechanisms in packaging and electronics. Their reliability makes many of them ideal as industrial latches for use in machinery, HVAC systems, and even consumer products like toolboxes and storage containers.
Examples of applications typically include:
● Industrial cabinets and machinery covers
● Engine panels and valve boxes
● Exhaust systems and ductwork
● Toolboxes and transport cases
● Flaps and container lids
● HVAC panels and enclosures
● Trade fair and exhibition construction materials
● Marine and transport industry applications
● Industrial doors and gates
If your application is furniture, you might find a more appropriate solution in our Guide to furniture and cabinet locks
Alternatives to toggle latches
Depending on your application, you might consider other types of latches. You can learn more in our Guide to latches. For now, here are alternatives to toggle latches:
Sliding snap latches
Slide latches offer a simple and quick-release mechanism for panel doors and provide a clean, flush appearance. Ideal for small metal machinery covers. Easy Installation.
Rotary latches
Rotary latches offer a convenient push-to-close operation, making them ideal for applications that require secure yet easy access. They’re hand-actuated, allowing users to manually engage or release the latch without the need for additional tools.
For added security and functionality, a separate striker bolt is typically required, which ensures proper alignment and locking. These industrial latches are commonly used in automotive, industrial, and enclosure applications due to their reliability and ease of use.
To help you learn more, our experts have put together A guide to rotary latches.
Slam action slide latches
These latches work with a spring system to lock and release, providing a quick and secure closure. They’re compatible with two different types of strikers, offering flexibility in installation and use across various applications. Ideal for situations where speed and convenience are essential, such as in doors, panels, or enclosures that require frequent access. Our range of push-to-close latches and catches also include quarter-turn slam-shut latches and snap-in magnetic catches.

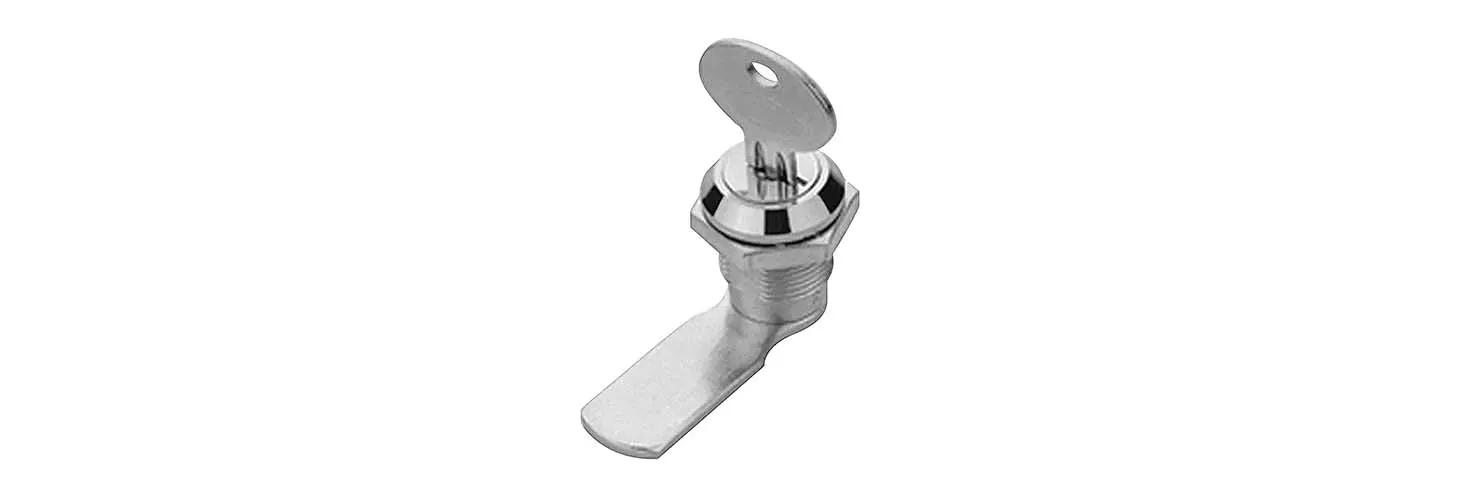

Cam locks
Cam locks are locking levers commonly used in cabinet and furniture construction. Their locking mechanisms secure doors, lockers, safety boxes, office equipment, and many other applications. Our range includes compression cam latches, quarter-turn cam locks, and more.
You can learn about these popular locks in our guide, How to choose and size cam locks and latches.
Download free CADs
Free CADs are available for most solutions, which you can download. If you’re not quite sure which toggle latch or other fastening solutions will work best for your application, our experts are always happy to advise you.
