Caps & Plugs – The Design Engineer's Guide
Protect vital parts for more efficient processes with caps and plugs
Protect your application with caps and plugs designed to withstand just about any environment. Free samples on selected products let you try before you buy, and free CAD downloads help you perfect your design.
While this is intended as an overview of caps and plugs that suit particular applications, you can go more in depth with our Ultimate Guide to Caps and Plugs.
EQUIPMENT MANUFACTURING
Electric cable enclosures • HVAC components • Industrial generator parts • Outdoor utility cabinet
Ensure smooth assembly and transit by protecting critical internal and external profiles from damage while maintaining quality.
Protect your design with:
- Fully threaded to 13.6 mm/ 0.535 in
- LDPE material
- Also used in hydraulic and pneumatic industries
- Knurled head for easy grip
- Service temperature range: -40°F – 149°F (-40°C – 65°C)
- Suitable as NPT thread plug, and UNF
- LDPE material
- When tab is pulled, cap splits open for quick removal
METAL FABRICATION
Data cabinet • Sheet metal • Furniture
Increase customer satisfaction with a professional finish by masking holes and contact points with easy-to-fit caps and plugs.
Guard your product’s holes with:
High-Temperature Silicone Tapered Plugs
- High temperature rating: 482°F (250°C)
- Durometer (Shore A) 55 + 5
- Excellent chemical resistance
- Reusable
- Flexibility allows slight variations in the sizes to mask
- Available as a solid plug
- Available with a hollow core to aid in compression; less material needed also makes this cost effective
- High temperature rating: 482°F (250°C)
- Durometer (Shore A) 55 + 5
- Masks threaded or unthreaded through holes
- Pull tap enables easy insertion and fast removal from tight holes
VEHICLES
Cars • Trucks • Trains
Protect key components from potential debris contamination and safeguard vital threads from damage during storage and shipment to the final assembly plant.
Protect your design with precision:

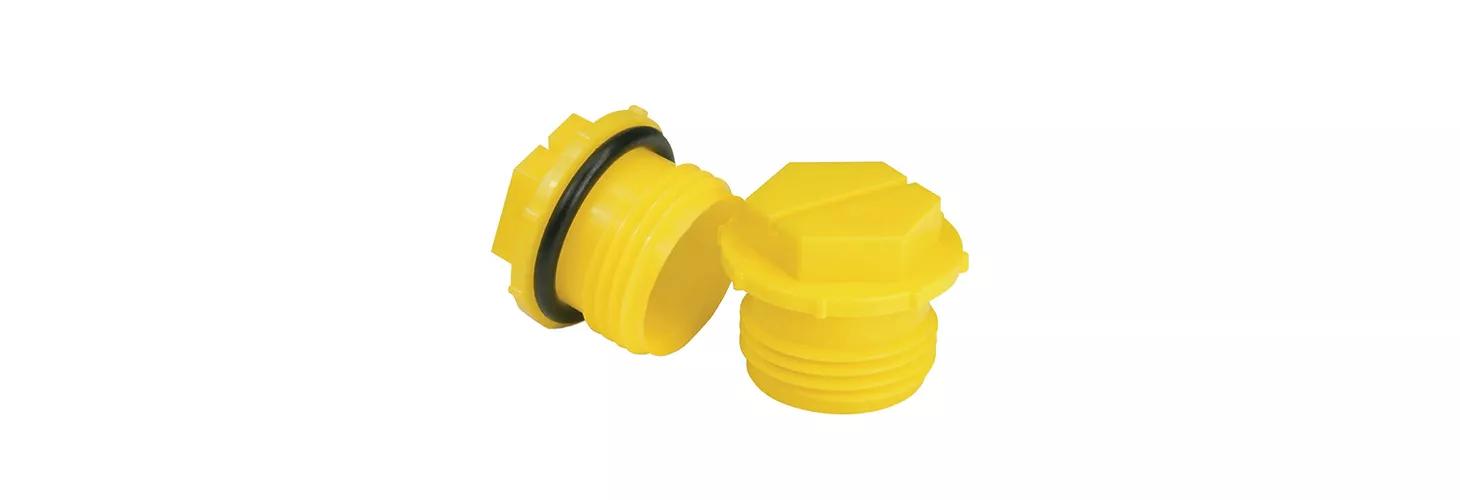

Threaded O-ring Plug - UNF Threads
- Can be applied or removed by hand, hex wrench or screwdriver
- Compressing flange lip and o-ring provide water-tight seal for superior leakage protection
- Available in nylon and polypropylene; nylon withstands higher temperatures: -40°F – 266°F (-40°C – 130°C)
- Plugs multiple inner diameters
- Caps multiple outside diameters
- LDPE material
- Tapered caps and plugs made of LDPE
- Compatible cap thread sizes: BSP 3/8
- Compatible plug thread sizes: M20
- Flexible PE material allows for easier fitting on pipes
- Operating temperature range: 32°F – 149°F (0°C – 65°C)
HOSES AND HYDRAULICS
Tractors • Excavators • Mining
Minimize fluid spills and maintain hose integrity while ensuring constant machinery uptime and user safety.
Give your design specialist hose-fitting protection with:
- Available in all common hydraulic coupling sizes
- Also suitable for protecting round components
- LDPE material
- Rigid design allows easy application and removal
- HDPE caps are resistant to solvents and reduce potential shearing
- Protect standard threaded fittings with or without O-ring
Download free CADs and try before you buy
Free CADs are available for most solutions, which you can download. You can also request free samples to make sure you’ve chosen exactly what you need. If you’re not quite sure which solution will work best for your application, our experts are always happy to advise you.
Whatever your requirements, you can depend on fast despatch. Request your free samples or download free CADs now.
