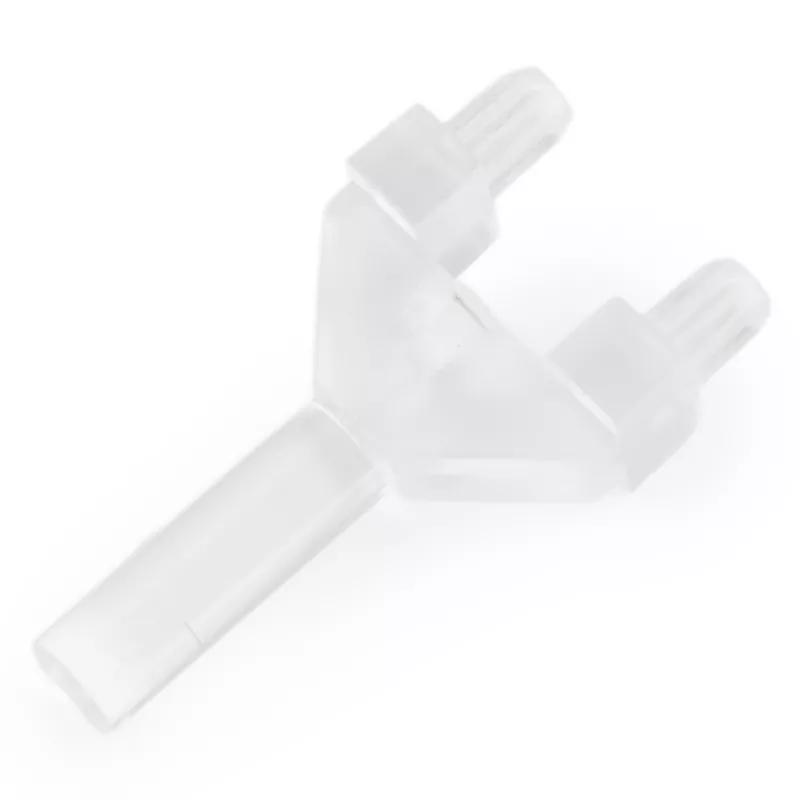

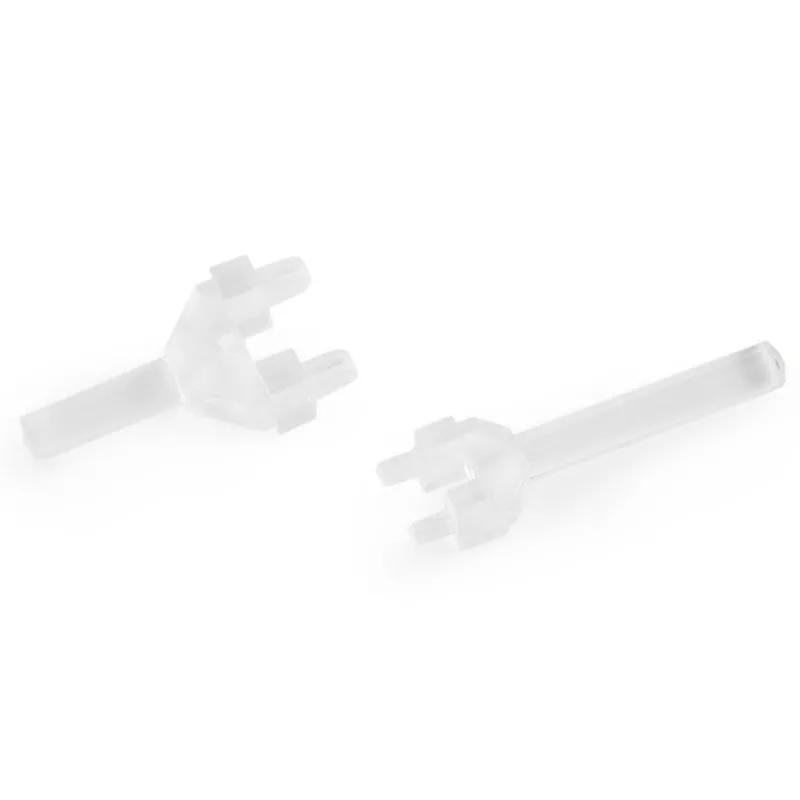

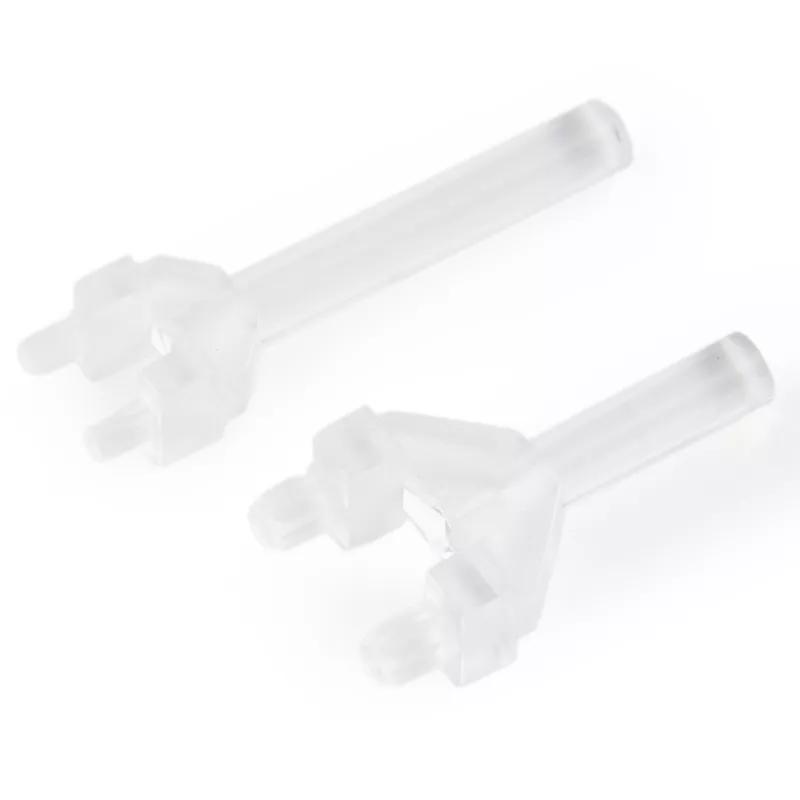

LED Light Pipe - 1.5 mm | 0.059 in ; 6.4 mm | 0.252 in
Clear vertical light pipes designed to transport light from PCB mounted LED on to a display panel. This item has a domed top.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.3712 |
| 10000 - 24999 | $0.3489 |
| 25000 + | $0.3267 |
Useful Information
Specifications
Imperial
Metric
| Hole Diameter | 0.059 in |
|---|---|
| Hole Spacing Length | 0.185 in |
| Maximum Operating Temperature | 266 °F |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness | 0.031 in |
| Overall Width | 0.252 in |
| Pipe Diameter | 0.118 in |
| Pipe Length | 0.858 in |
| Stud Length | 0.098 in |
| Color | Clear |
| Full Material | Polycarbonate |
| Head Shape | Dome |
| Material | PC |
| Material Flammability Standard | UL94 V-0 |
| Package Quantity | 1000 |
| Style | 2 |
