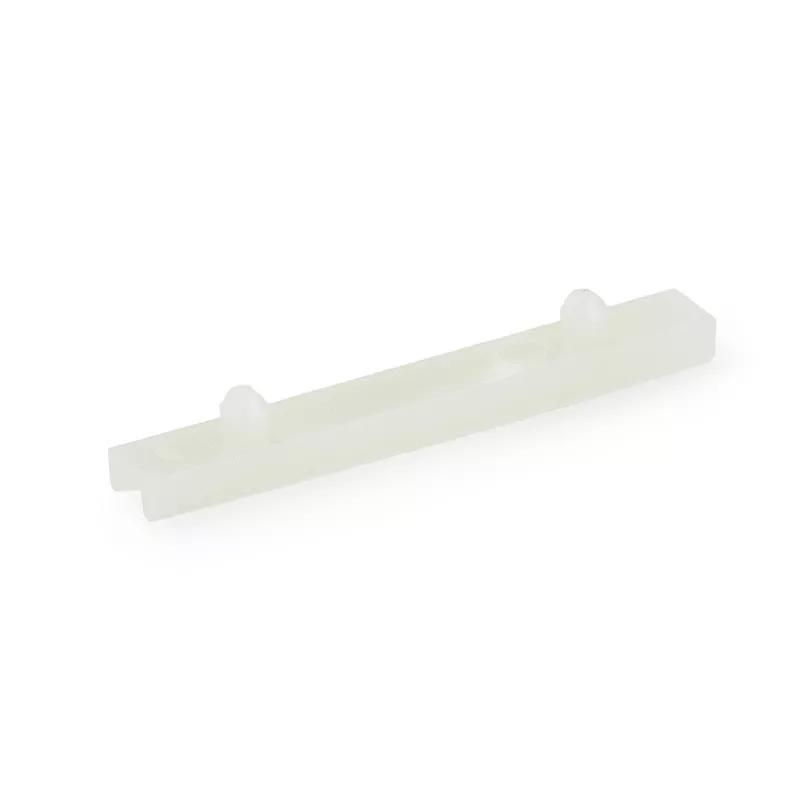

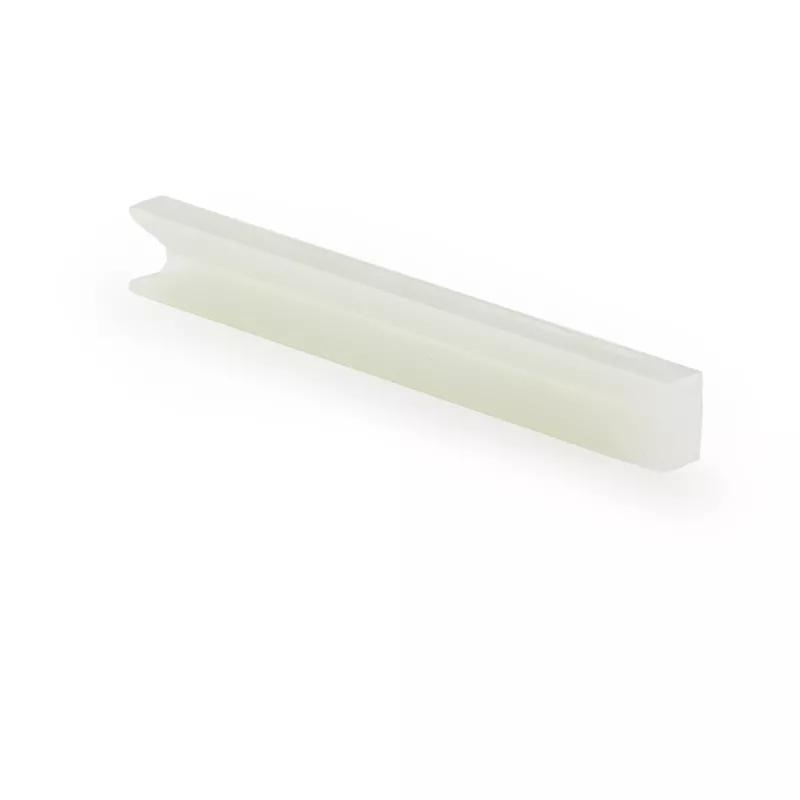

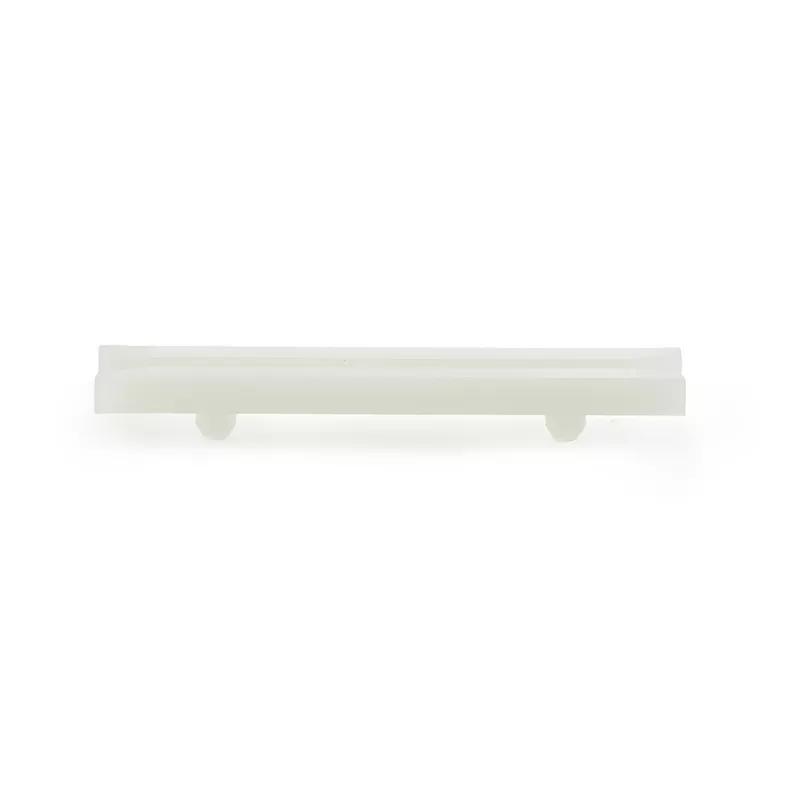

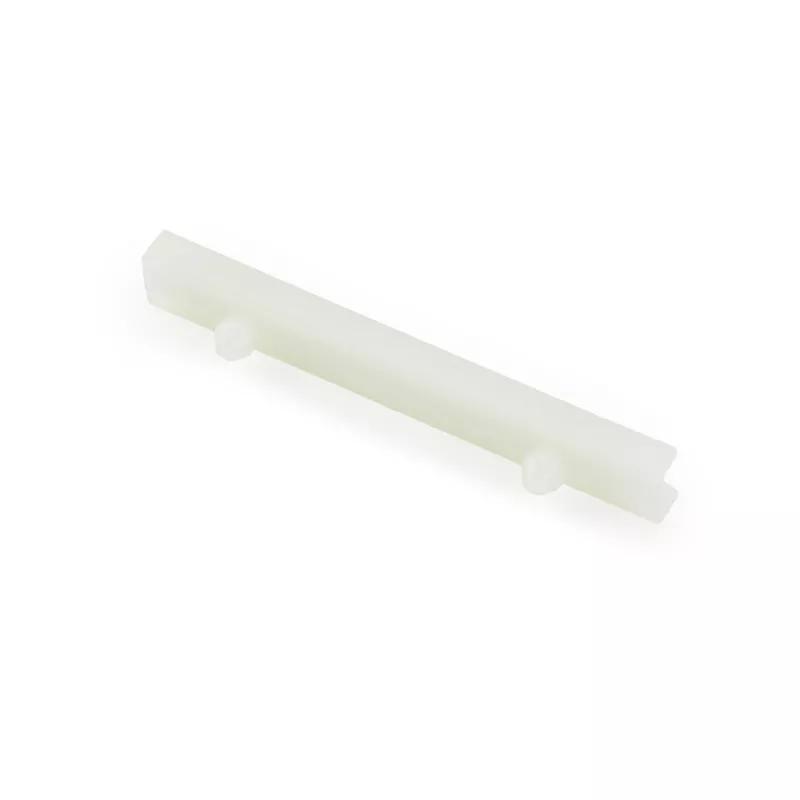

Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.062 in ; Overall Length 63.5 mm | 2.500 in
Snap-in horizontal tension card guide with tapered ends that makes PCB insertion easier and helps secure the PCB into place providing support in tight spaces. Manufactured with material rated UL94-V2
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.6516 |
| 10000 - 24999 | $0.6124 |
| 25000 + | $0.5734 |
Useful Information
Documents
Specifications
Imperial
Metric
| Accepts Panel Thickness | 0.062 in |
|---|---|
| Distance Between Fixing Holes | 1.5 in |
| Maximum Operating Temperature | 194 °F |
| Maximum Panel Thickness | 0.091 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness | 0.047 in |
| Overall Length | 2.5 in |
| Color | Natural |
| Full Material | Polyamide 66 |
| Material Flammability Standard | UL94 V-2 |
| Mounting Method | Push Fit |
| Style | 1 |
