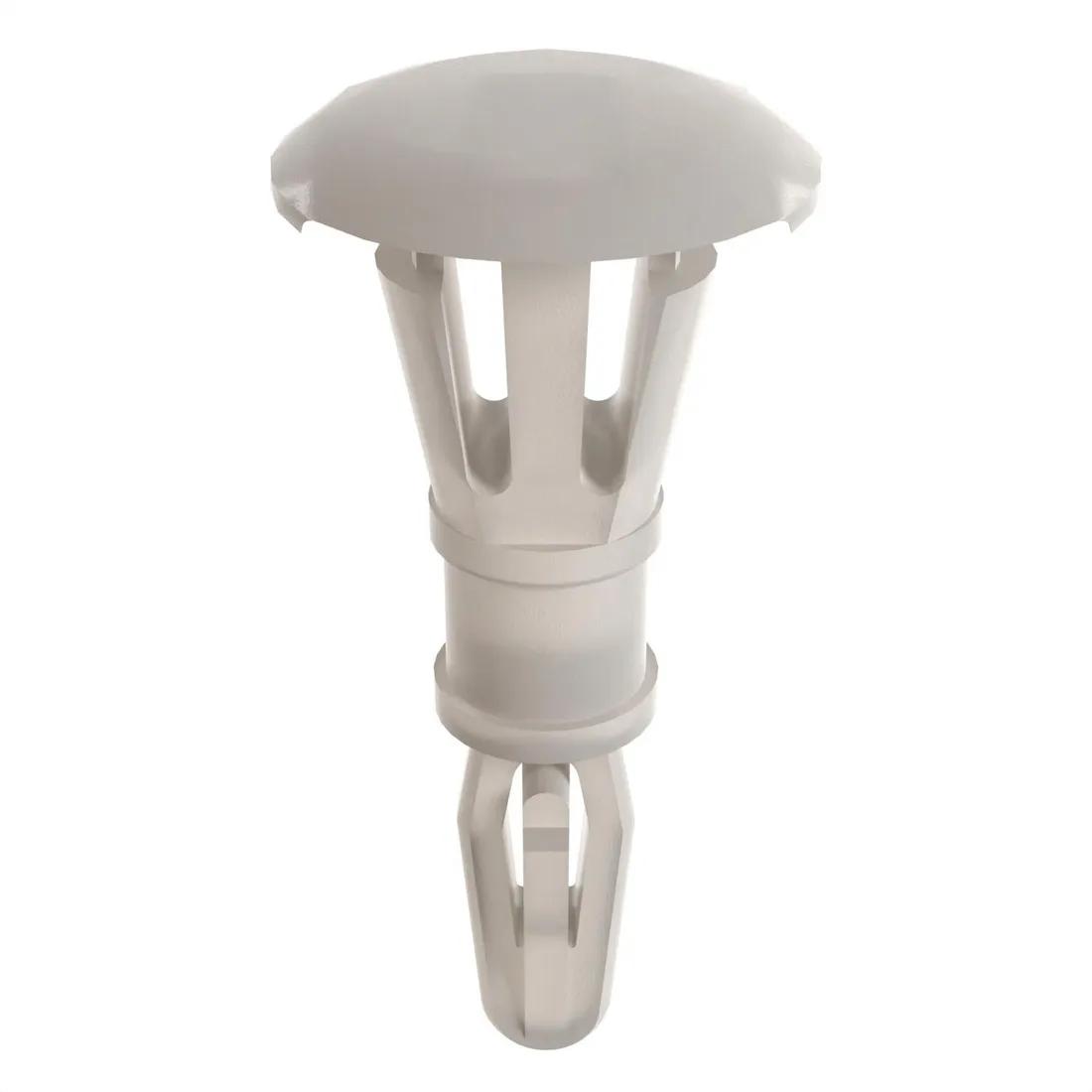

Reverse Locking Support - Hole Diameter A 3.2 mm | 0.125 in ; Hole Diameter B 4.7 mm | 0.187 in - Spacer Length 9.5 mm | 0.375 in ; Style 1
Reverse mount locking PCB support is designed to be pushed through from the outside of the chassis. Locking push mount securely holds PCB in place.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.2868 |
| 10000 - 24999 | $0.2086 |
| 25000 + | $0.1913 |
Useful Information
Specifications
Imperial
Metric
| Hole Diameter A | 0.126 in |
|---|---|
| Hole Diameter B | 0.189 in |
| Locking Head Height A | 0.343 in |
| Locking Head Height B | 0.059 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Maximum Panel Thickness B | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness B | 0.059 in |
| Panel Thickness A Range | 0.063 in |
| Panel Thickness B Range | 0.059 - 0.063 in |
| Spacer Length | 0.374 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Snap Lock Fix |
| Material | PA 6 |
| Material Flammability Standard | UL94 V-2 |
