Home // PCB Mounting Pillars // PCB Support Pillars - Snap-In/Anti-Rotation/No Nose

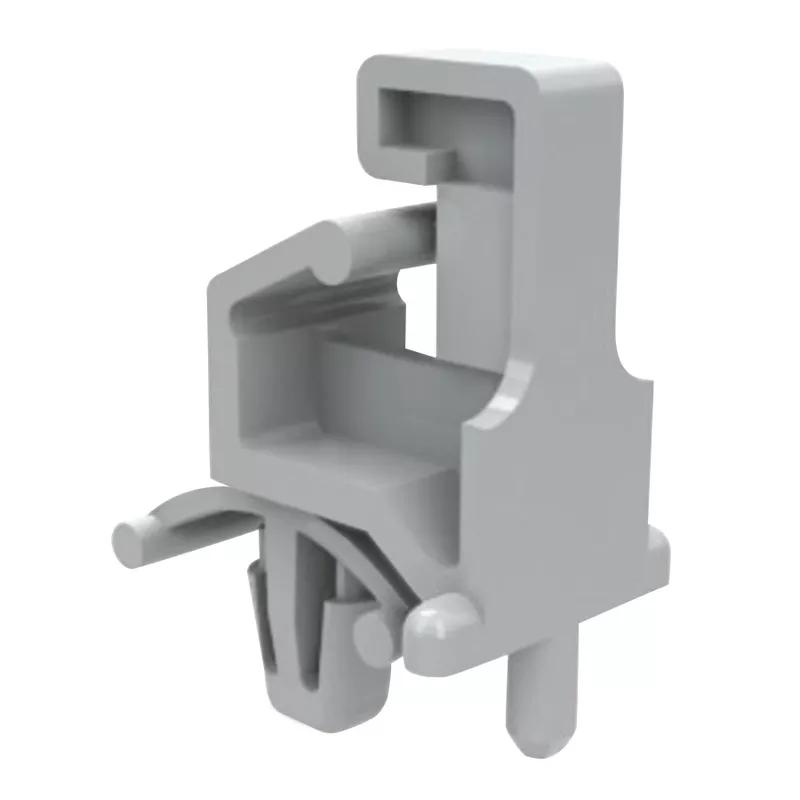

P160192_Edge_Locking_Support-Snap_In_Anti-Rotation_No_Nose_Photo1

PCB Support Pillars - Snap-In/Anti-Rotation/No Nose

In stock

These are edge locking supports that require no hole in the top board. They have an integrated locking pin on the bottom to prevent rotation. The UBM grips the PC Board on the side and the UBMC grips the board and is easily released. They have a wide base that minimizes rocking.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Spacer Length All
5 results

Sort by

None
Product SKUs information
Item Code Price range Availability Spacer Length View
$0.2799 - $0.3359 33600 In stock
0.484 in
$0.2874 - $0.418 8500 In stock
0.61 in
$0.2799 - $0.3359 46500 In stock
0.484 in
$0.2874 - $0.3449 1500 In stock
0.61 in
$0.299 - $0.3586 25000 In stock
0.866 in
Edge Locking Support - ; 12.3 mm | .484 in

UBM-12.3M-01

Price Range
$0.3359 - $0.2799

Stock Levels
33600 In stock
Attributes
  • Locking Head Height A
    0.154 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.091 in
  • Maximum Panel Thickness B
    0.091 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Edge Locking Support - ; 15.5 mm | .610 in

UBM-15.5M-01

Price Range
$0.418 - $0.2874

Stock Levels
8500 In stock
Attributes
  • Locking Head Height A
    0.154 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.091 in
  • Maximum Panel Thickness B
    0.091 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Edge Locking Support - ; 12.3 mm | .484 in

UBMC-12.3M-01

Price Range
$0.3359 - $0.2799

Stock Levels
46500 In stock
Attributes
  • Locking Head Height A
    0.177 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.091 in
  • Maximum Panel Thickness B
    0.091 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Edge Locking Support - ; 15.5 mm | .610 in

UBMC-15.5M-01

Price Range
$0.3449 - $0.2874

Stock Levels
1500 In stock
Attributes
  • Locking Head Height A
    0.177 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.091 in
  • Maximum Panel Thickness B
    0.091 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Edge Locking Support - ; 22 mm | .866 in

UBM-22.0M-01

Price Range
$0.3586 - $0.299

Stock Levels
25000 In stock
Attributes
  • Locking Head Height A
    0.154 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.091 in
  • Maximum Panel Thickness B
    0.091 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
