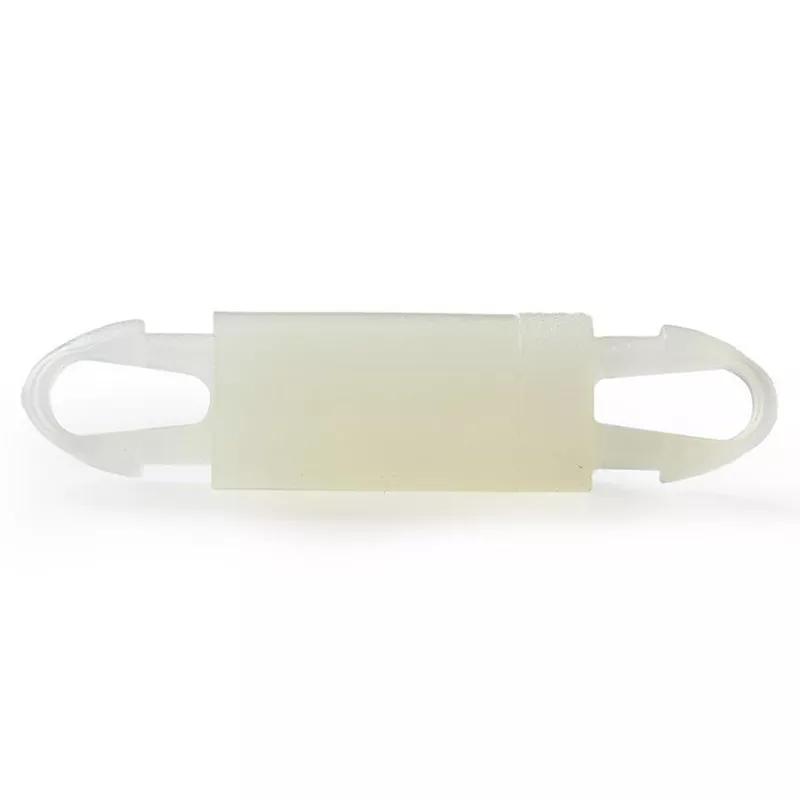

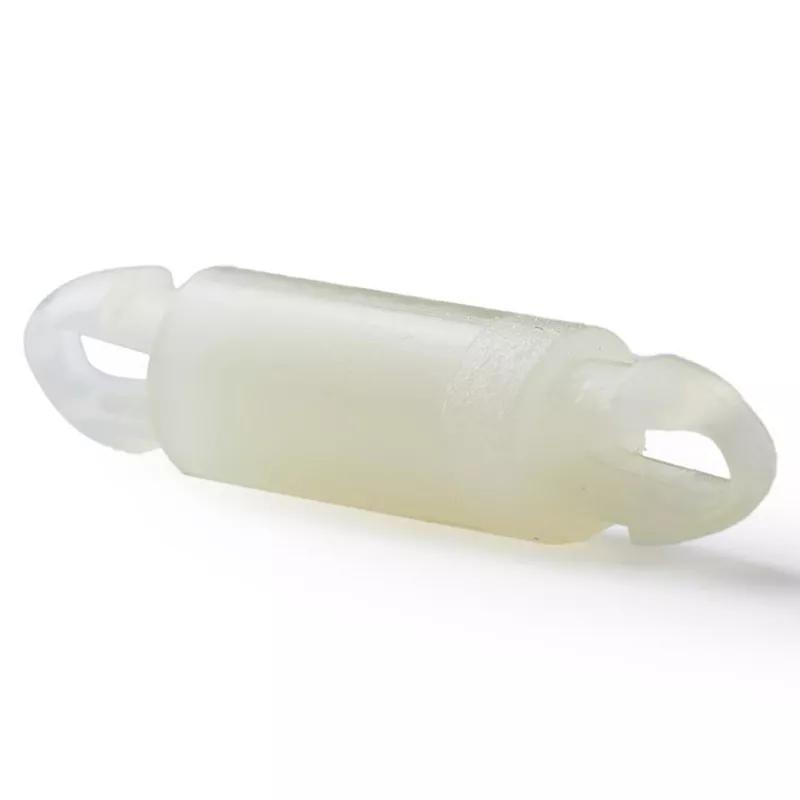

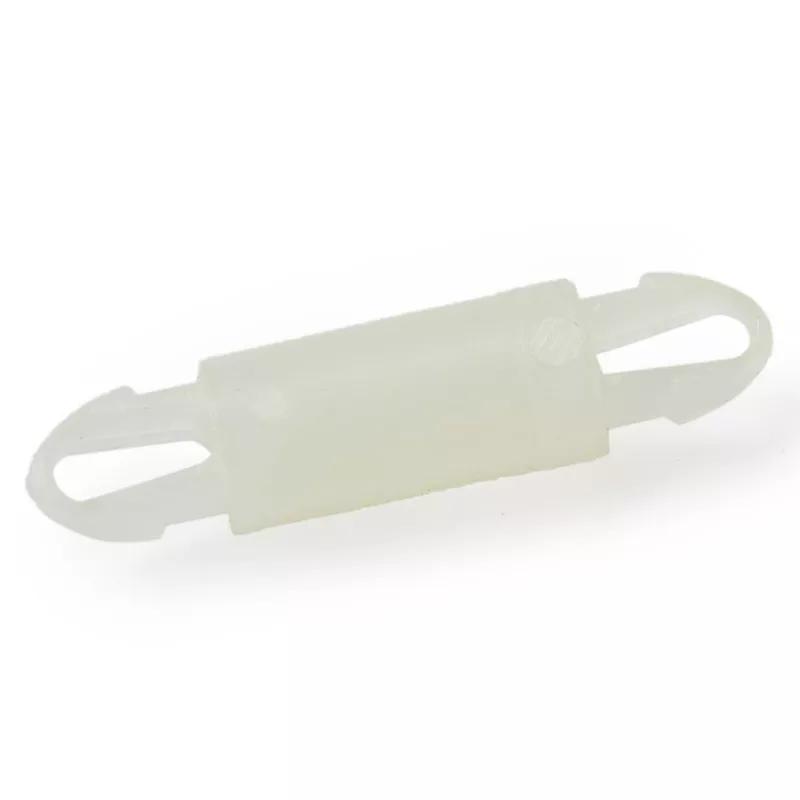

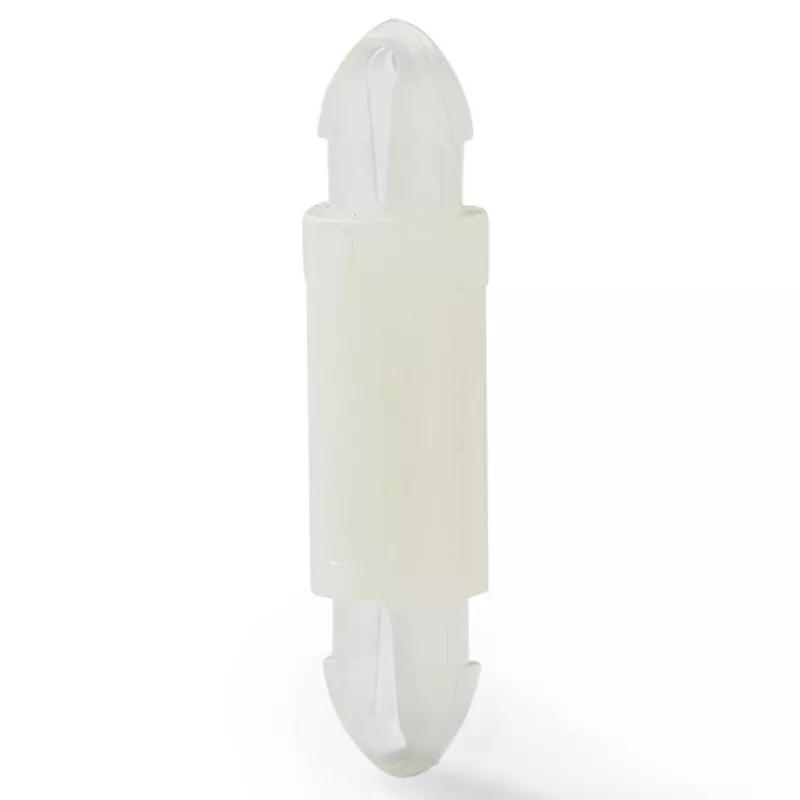

PCB Support - Locking Teardrop Fix ; Spacer Length 10 mm | 0.394 in ; Style 2
Type 2 MDLSP2. This double locking circuit board support allows to firmly stack two boards at the desired distance without the need of extra tools, saving on assembly times. Made from nautral Nylon 6/6, RMS-01.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.2379 |
| 10000 - 24999 | $0.2282 |
| 25000 + | $0.2196 |
Useful Information
Specifications
Imperial
Metric
| Body Diameter | 0.181 in |
|---|---|
| Hole Diameter A | 0.138 in |
| Hole Diameter B | 0.138 in |
| Locking Head Height A | 0.118 in |
| Locking Head Height B | 0.118 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.067 in |
| Maximum Panel Thickness B | 0.067 in |
| Minimum Operating Temperature | -40 °F |
| Panel Thickness A Range | 0.067 in |
| Panel Thickness B Range | 0.067 in |
| Spacer Length | 0.394 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Locking Teardrop Fix |
| Hole B Fix Type | Locking Teardrop Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Style | 2 |
