PCB Support - Pull Mount Fix ; Pull Mount Fix ; Black ; EPDM ; 15.9 mm | 0.625 in

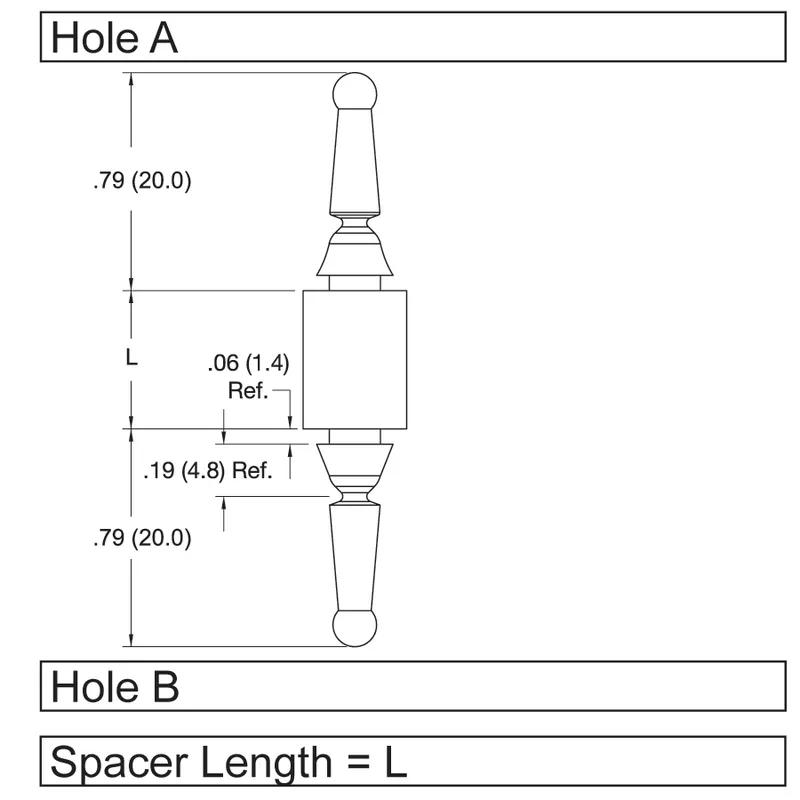

This rubber PC Support has a 15.9 mm | 0.625 in long spacer. Pull mount ends are easily fed into .187 in diameter holes in a .093 in maximum panel thickness and pulled into a locked position. Once installed, the ends are easily cut off leaving .19 in low profile mounting ends.
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.4585 |
| 10000 - 24999 | $0.4168 |
| 25000 + | $0.3823 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.374 in |
|---|---|
| Hole Diameter A | 0.187 in |
| Hole Diameter B | 0.187 in |
| Locking Head Height A | 0.190 in |
| Locking Head Height B | 0.189 in |
| Maximum Operating Temperature | 194 °F |
| Maximum Panel Thickness A | 0.086 in |
| Maximum Panel Thickness B | 0.086 in |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 194 °F |
| Panel Thickness A Range | 0.086 in |
| Panel Thickness B Range | 0.086 in |
| Spacer Length | 0.625 in |
| Color | Black |
| Full Material | Ethylene Propylene Diene Monomer |
| Hole A Fix Type | Pull Mount Fix |
| Hole B Fix Type | Pull Mount Fix |
| Material | EPDM |
