N/A - Locking Bayonet Nose Fix ; Locking Two Prong Fix ; Natural ; Nylon ; 3.2 mm | 0.125 in

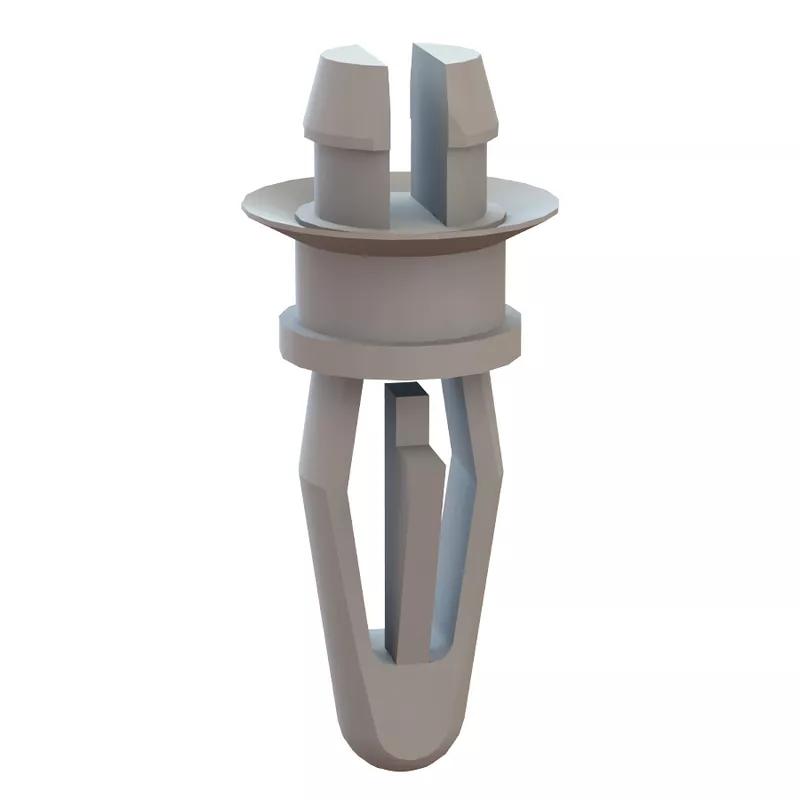

These Snap Fit Bayonet Nose/Locking Two Prong Cupped PCB Supports mount into and holes. The spacer length is and they are made of ,
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1421 |
| 10000 - 24999 | $0.1364 |
| 25000 + | $0.1312 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.187 in |
|---|---|
| Hole Diameter A | 0.156 in |
| Hole Diameter B | 0.156 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.062 in |
| Maximum Panel Thickness B | 0.062 in |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Panel Thickness A Range | 0.062 in |
| Panel Thickness B Range | 0.062 in |
| Spacer Length | 0.125 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Locking Bayonet Nose Fix |
| Hole B Fix Type | Locking Two Prong Fix |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
