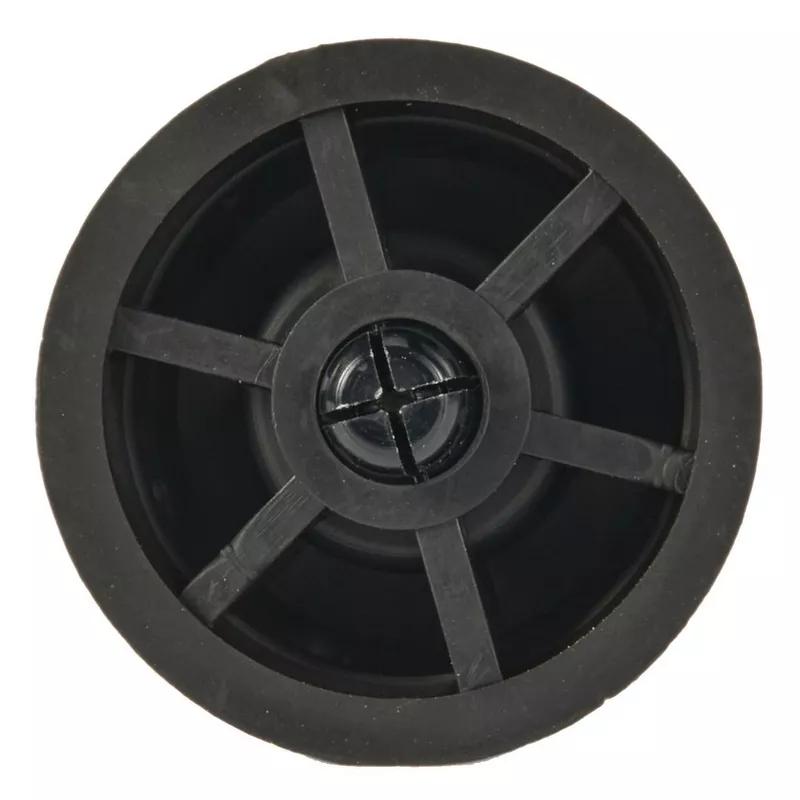

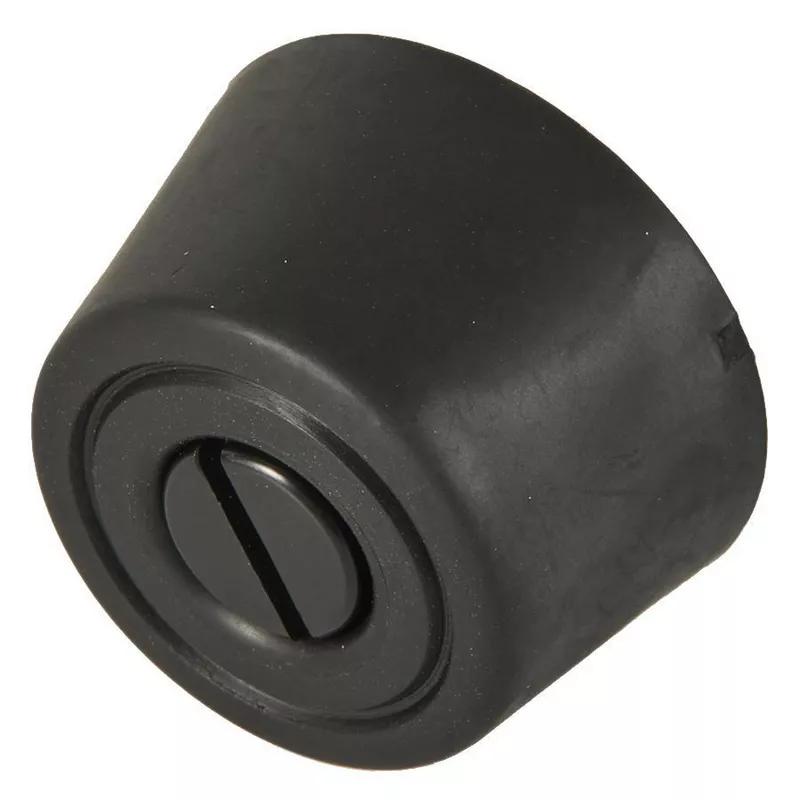

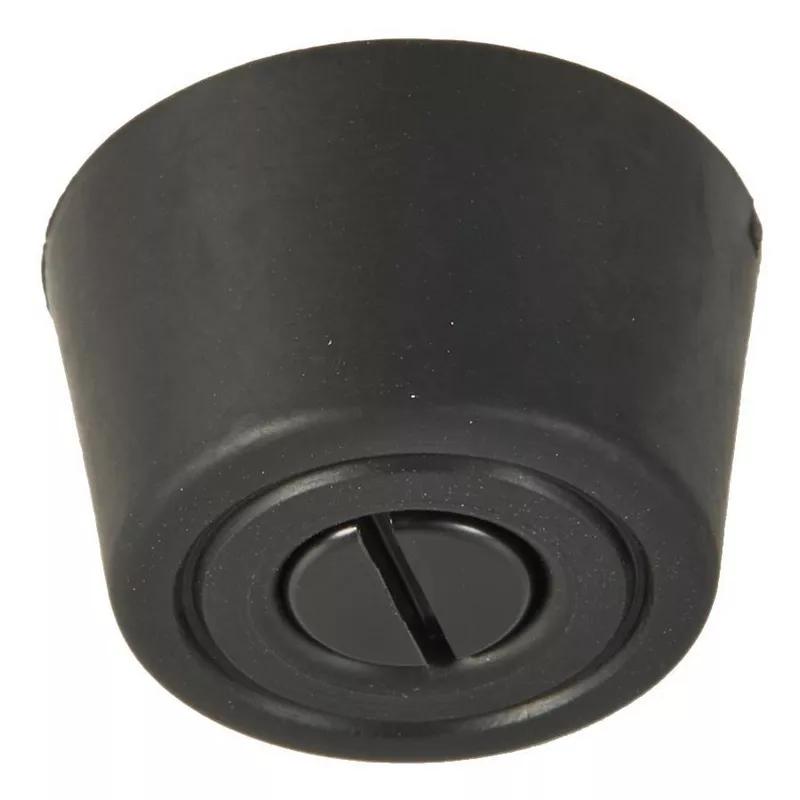

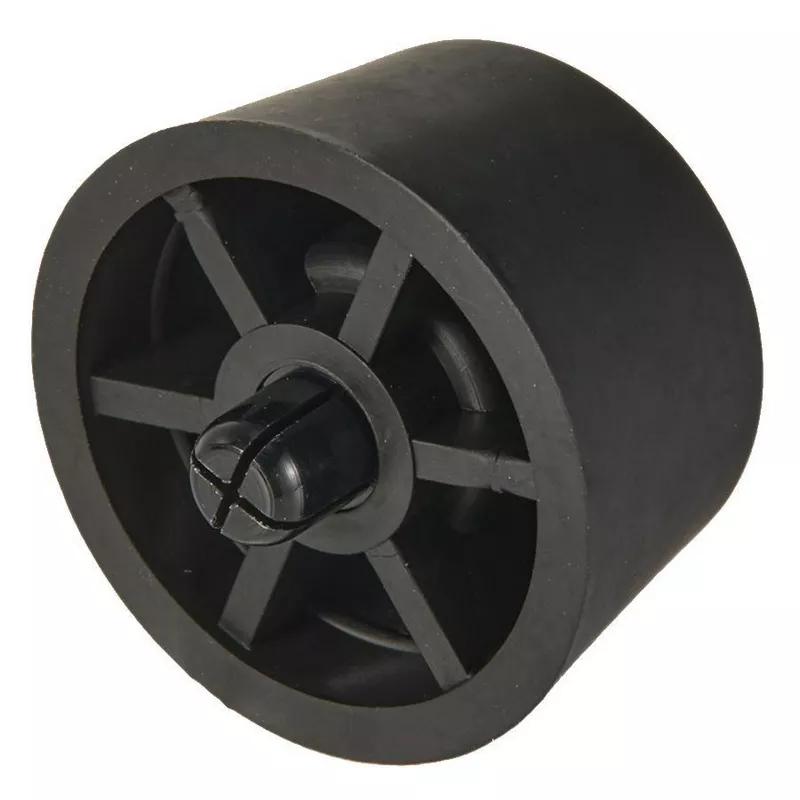

Rivet Mount Feet - TPE ; Height 14.0 mm | 0.551 in ;Base Diameter 24.1 mm | 0.950 in ; Minimum Compatible Hole Diameter - 5 mm | 0.197 in ; Minimum Panel Thickness - 1 mm | 0.039 in
Fast Foot made from TPE (-50 to 95°C), and the Rivet/Screw material is Acetal (-40 to 95°C) - both rated UL94 HB. The Grommet material is UL94 V2 rated PA6 (-50 to 115°C) (the grommet is sold seperately). Colour is black. Ideal for wooden cabinets, equipment enclosures, free-standing electrical/electronic equipment.
Loading...
| Quantity | Unit price |
|---|---|
| 100 - 9999 | $1.2895 |
| 10000 - 24999 | $0.6331 |
| 25000 + | $0.5805 |
Useful Information
Documents
Specifications
Imperial
Metric
| Base Diameter | 0.945 in |
|---|---|
| Base Height | 0.551 in |
| Compatible Hole Diameter Range | 0.197 - 0.201 in |
| Compatible Hole Diameter | 0.201 in |
| Maximum Compatible Hole Diameter | 0.201 in |
| Maximum Panel Thickness | 0.091 in |
| Minimum Compatible Hole Diameter | 0.197 in |
| Minimum Panel Thickness | 0.039 in |
| Base Full Material | Thermoplastic Elastomer |
| Base Material | Elastomer |
| Base Shape | Round |
| Color | Black |
| Full Material | Thermoplastic Elastomer |
