Push-In Rivets - Bevelled Head
Push-In Rivets - Bevelled Head - Line Drawing
alt3
ASSET_REFERENCE_PRIMARY_APP
Push-In Rivets - Bevelled Head - Line Drawing

Push-In Rivets - Bevelled Head

In stock

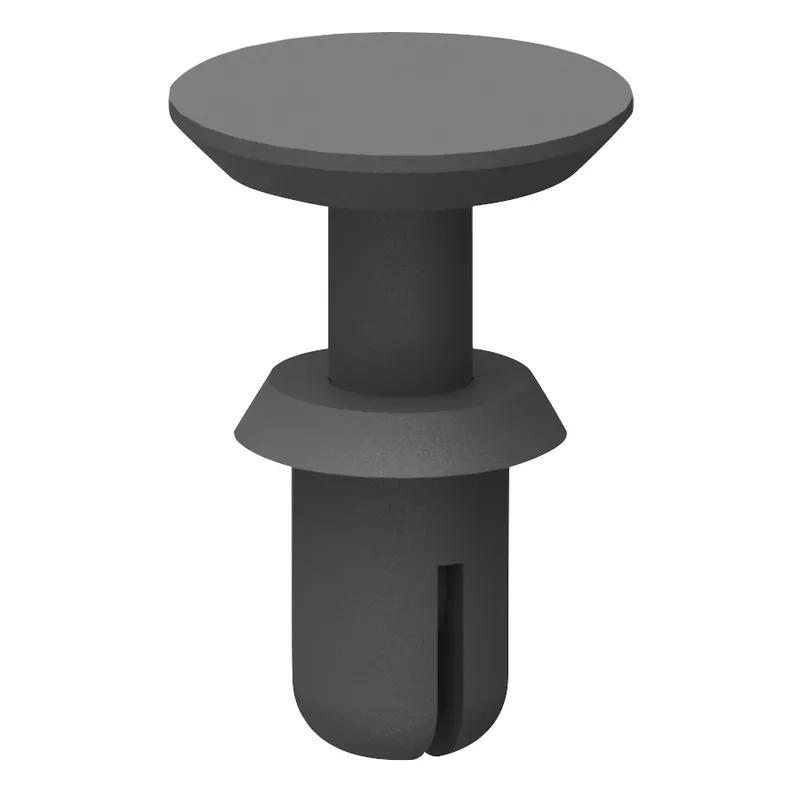

Push In Rivet has a bevelled head design. The bevel design helps facilitates efficient assembly and removal.

The rivet is installed by quickly and easily inserting it into the work piece. Press down on the pin, which engages the "H-shaped" grommet. Once the pin is inserted into the grommet, the grommet legs expand and lock the rivet assembly firmly into position. Once the rivet assembly is installed, the head of the pin protrudes from the panel surface, but gives a nice clean and finished look nonetheless.

  • Material: Nylon 6
  • UL94 V2 Flame Rated
  • Colors: Black
  • Tool-free installation
  • Can be removed after installation

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
13 results

Sort by

None
Product SKUs information
Item Code Price range Availability Compatible Hole Diameter Head Height Head Diameter Compatible Panel Thickness Range View
$0.1631 - $0.3033 1000 In stock
0.039 in
0.252 in
0.118 - 0.157 in
$0.1826 - $0.3475 2000 In stock
0.039 in
0.252 in
0.295 - 0.335 in
$0.1762 - $0.3295 22000 In stock
0.039 in
0.236 in
0.157 - 0.177 in
$0.1762 - $0.3344 1000 In stock
0.039 in
0.252 in
0.256 - 0.295 in
SRH-3035 $0.1479 - $0.2757 58970 In stock
0.039 in
0.252 in
0.039 - 0.079 in
$0.1746 - $0.3245 Request the lead time here
0.039 in
0.236 in
0.197 - 0.256 in
$0.1631 - $0.3033 17000 In stock
0.146 in
0.039 in
0.252 in
0.087 - 0.122 in
$0.1664 - $0.3099 12000 In stock
0.039 in
0.236 in
0.157 - 0.197 in
$0.1428 - $0.2707 2000 In stock
0.039 in
0.252 in
0.039 - 0.079 in
$0.1826 - $0.3409 Request the lead time here
0.039 in
0.236 in
0.177 - 0.217 in
SRH-3045 $0.1555 - $0.2886 4000 In stock
0.039 in
0.252 in
0.079 - 0.118 in
$0.1712 - $0.318 1000 In stock
0.039 in
0.236 in
0.118 - 0.157 in
$0.1522 - $0.2886 1000 In stock
0.039 in
0.236 in
0.217 - 0.256 in
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 3 - 4 mm | 0.118 - 0.157 in Anchor Length 5.6 mm | 0.220 in

SRH-3055

Price Range
$0.3033 - $0.1631

Stock Levels
1000 In stock
Attributes
  • Anchor Length
    0.220 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.118 - 0.157 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 7.5 - 8.5 mm | 0.295 - 0.335 in Anchor Length 10 mm | 0.394 in

SRH-3100

Price Range
$0.3475 - $0.1826

Stock Levels
2000 In stock
Attributes
  • Anchor Length
    0.394 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.295 - 0.335 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.6 - 3.7 mm | 0.142 - 0.146 in Compatible Panel Thickness Range 4 - 4.5 mm | 0.157 - 0.177 in Anchor Length 6 mm | 0.236 in

SRH-3560

Price Range
$0.3295 - $0.1762

Stock Levels
22000 In stock
Attributes
  • Anchor Length
    0.236 in
  • Head Diameter
    0.236 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.157 - 0.177 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 6.5 - 7.5 mm | 0.256 - 0.295 in Anchor Length 9 mm | 0.354 in

SRH-3090

Price Range
$0.3344 - $0.1762

Stock Levels
1000 In stock
Attributes
  • Anchor Length
    0.354 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.256 - 0.295 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 1 - 2 mm | 0.039 - 0.079 in Anchor Length 3.5 mm | 0.138 in

SRH-3035

Price Range
$0.2757 - $0.1479

Stock Levels
58970 In stock
Attributes
  • Anchor Length
    0.138 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.039 - 0.079 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 5 - 6.5 mm | 0.197 - 0.256 in Anchor Length 8 mm | 0.315 in

SRH-3080

Price Range
$0.3245 - $0.1746

Stock Levels
Request the lead time here
Attributes
  • Anchor Length
    0.315 in
  • Head Diameter
    0.236 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.197 - 0.256 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Rivet Push-In Rivet - Compatible Hole Diameter Range 3.6 - 3.7 mm | 0.142 - 0.146 in; Compatible Panel Thickness Range 2.2 - 3.1 mm | 0.087 - 0.122 in; Anchor Length 0.2 mm | 0.008 in

SRH-3545

Price Range
$0.3033 - $0.1631

Stock Levels
17000 In stock
Attributes
  • Anchor Length
    0.008 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Hole Diameter
    0.146 in
  • Compatible Panel Thickness Range
    0.087 - 0.122 in
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap N/A - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 4 - 5 mm | 0.157 - 0.197 in Anchor Length 6.5 mm | 0.256 in

SRH-3065

Price Range
$0.3099 - $0.1664

Stock Levels
12000 In stock
Attributes
  • Anchor Length
    0.256 in
  • Head Diameter
    0.236 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.157 - 0.197 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.6 - 3.7 mm | 0.142 - 0.146 in Compatible Panel Thickness Range 1 - 2 mm | 0.039 - 0.079 in Anchor Length 3.5 mm | 0.138 in

SRH-3535

Price Range
$0.2707 - $0.1428

Stock Levels
2000 In stock
Attributes
  • Anchor Length
    0.138 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.039 - 0.079 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap N/A - Compatible Hole Diameter Range 3.6 - 3.7 mm | 0.142 - 0.146 in Compatible Panel Thickness Range 4.5 - 5.5 mm | 0.177 - 0.217 in Anchor Length 7.2 mm | 0.283 in

SRH-3570

Price Range
$0.3409 - $0.1826

Stock Levels
Request the lead time here
Attributes
  • Anchor Length
    0.283 in
  • Head Diameter
    0.236 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.177 - 0.217 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in Compatible Panel Thickness Range 2 - 3 mm | 0.079 - 0.118 in Anchor Length 4.5 mm | 0.177 in

SRH-3045

Price Range
$0.2886 - $0.1555

Stock Levels
4000 In stock
Attributes
  • Anchor Length
    0.177 in
  • Head Diameter
    0.252 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.079 - 0.118 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.6 - 3.7 mm | 0.142 - 0.146 in Compatible Panel Thickness Range 3 - 4 mm | 0.118 - 0.157 in Anchor Length 5.6 mm | 0.220 in

SRH-3555

Price Range
$0.318 - $0.1712

Stock Levels
1000 In stock
Attributes
  • Anchor Length
    0.220 in
  • Head Diameter
    0.236 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.118 - 0.157 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
Black UL94 V-2 Nylon Bevelled Snap Push-In Rivet - Compatible Hole Diameter Range 3.6 - 3.7 mm | 0.142 - 0.146 in Compatible Panel Thickness Range 5.5 - 6.5 mm | 0.217 - 0.256 in Anchor Length 8 mm | 0.315 in

SRH-3580

Price Range
$0.2886 - $0.1522

Stock Levels
1000 In stock
Attributes
  • Anchor Length
    0.315 in
  • Head Diameter
    0.236 in
  • Head Height
    0.039 in
  • Compatible Panel Thickness Range
    0.217 - 0.256 in
  • Operating Temperature Range
    -40 - 239 °F
Quick View
View Product >
