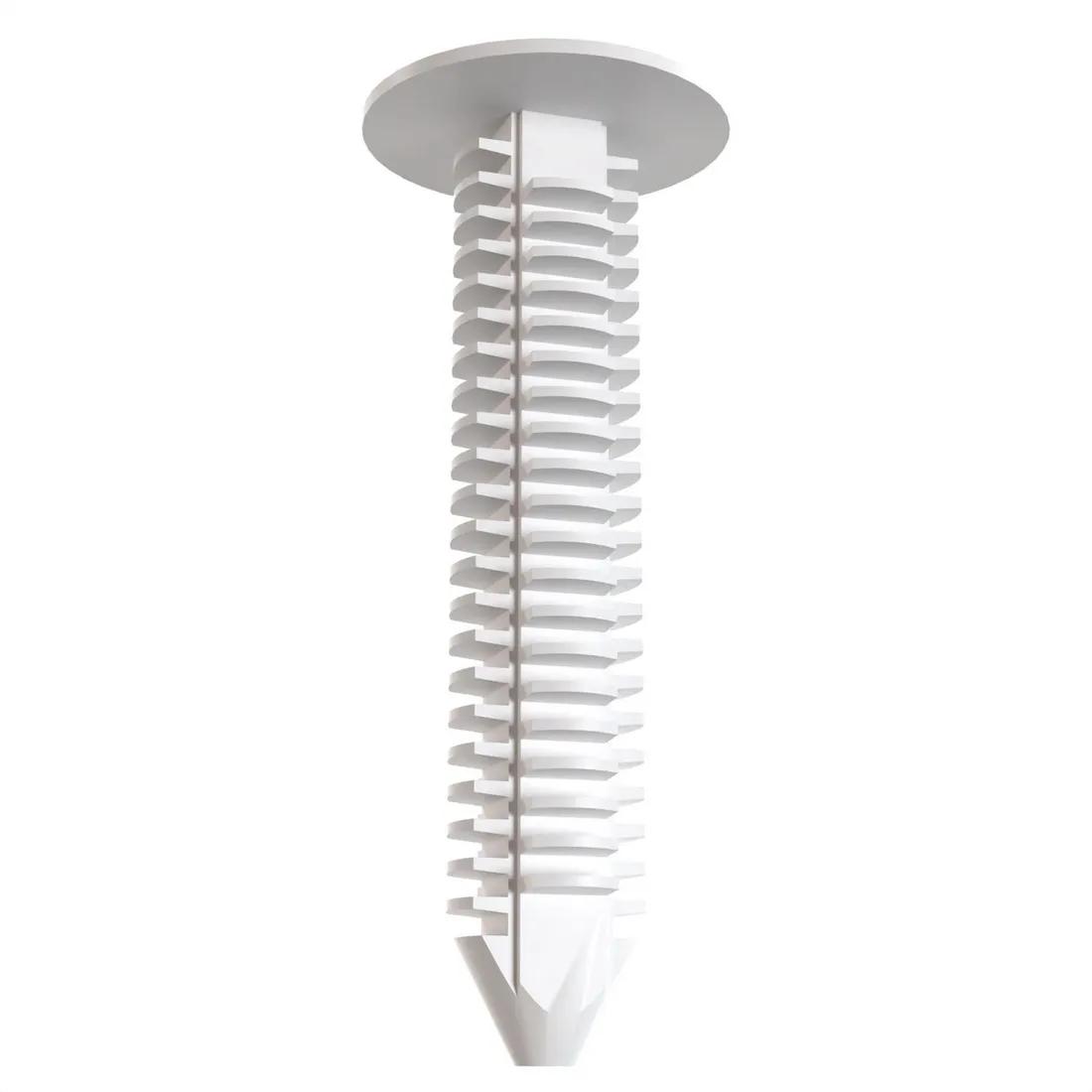

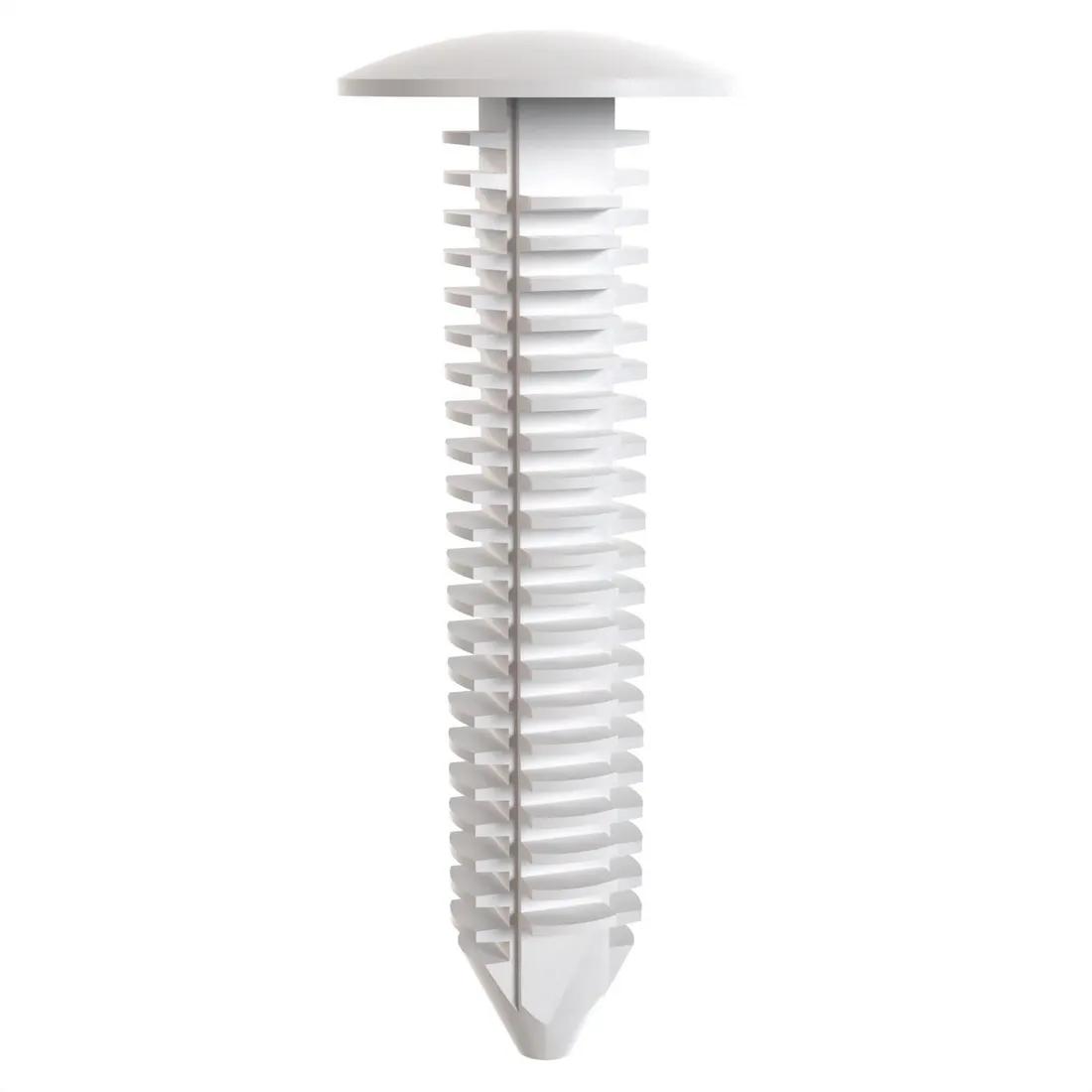

Barbed Rivet -; Compatible Hole Diameter 5.9 mm | 0.232 in; Compatible Panel Thickness Range 2.0 - 19.0 mm | 0.079 - 0.748 in;Natural;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Ideal for threaded, non-threaded, drilled or punched holes.
Loading...
| Quantity | Unit price |
|---|---|
| 100 - 499 | $0.5375 |
| 500 - 999 | $0.4141 |
| 1000 + | $0.3317 |
Useful Information
Specifications
Imperial
Metric
| Anchor Length | 0.945 in |
|---|---|
| Head Diameter | 0.669 in |
| Head Height | 0.047 in |
| Compatible Hole Diameter Range | 0.232 - 0.283 in |
| Compatible Panel Thickness Range | 0.079 - 0.748 in |
| Overall Height | 0.992 in |
| Color | Natural |
| Full Material | Nylon 6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | Type 1 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
