Fir Tree -; Compatible Hole Diameter 4.8 mm | 0.188 in; Compatible Panel Thickness Range 0.6 - 9.3 mm | 0.024 - 0.366 in;Black;Nylon

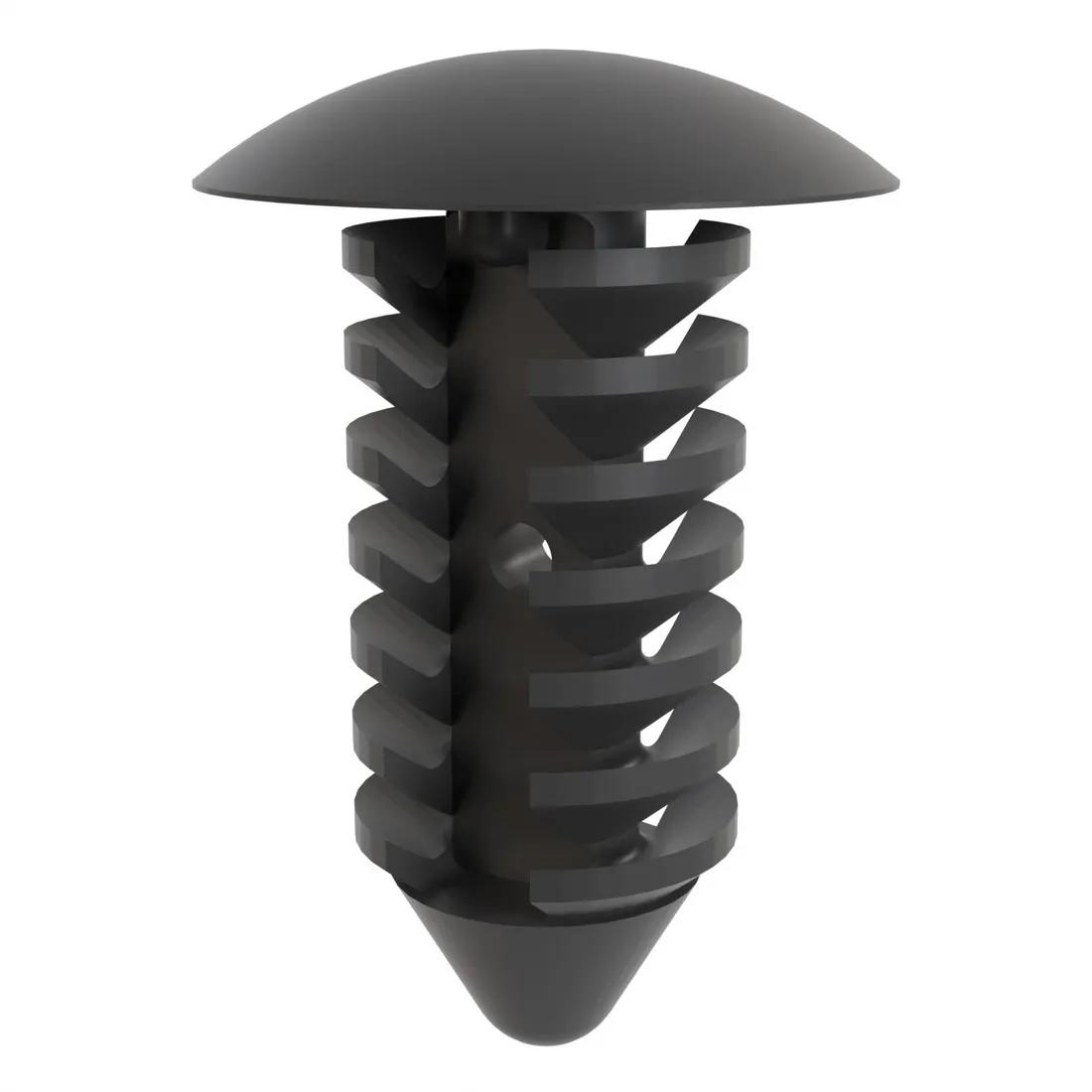

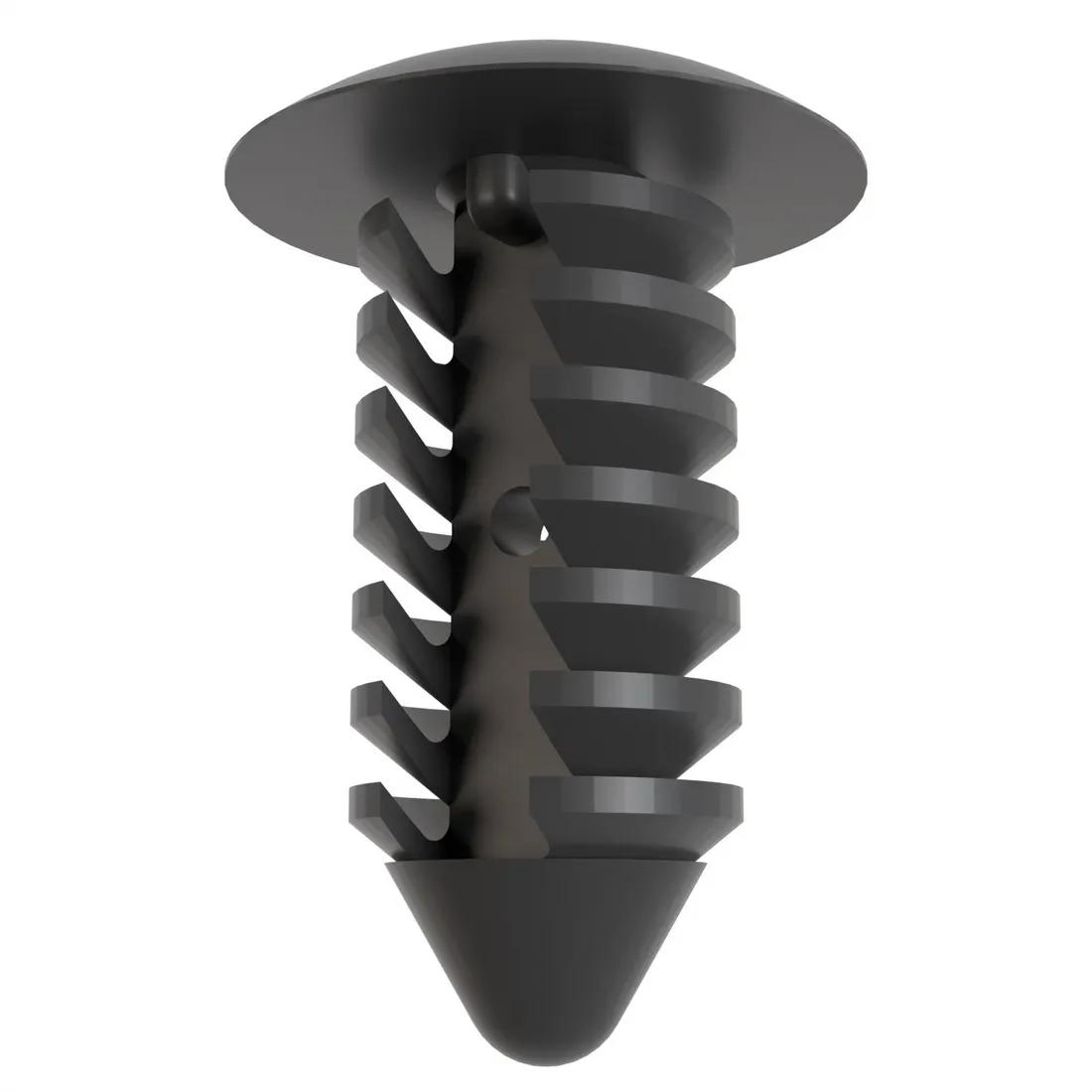

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Ideal for threaded, non-threaded, drilled or punched holes. Designed to be non-removable.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.0694 |
| 5000 - 9999 | $0.0625 |
| 10000 - 14999 | $0.0562 |
| 15000 - 19999 | $0.0506 |
| 20000 + | $0.0456 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.5 in |
|---|---|
| Head Diameter | 0.374 in |
| Head Height | 0.071 in |
| Compatible Hole Diameter Range | 0.189 - 0.187 in |
| Compatible Panel Thickness Range | 0.024 - 0.366 in |
| Overall Height | 0.571 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Fir Tree |
| Type | Type 1 |
| Rivet Head Shape | Mushroom |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
