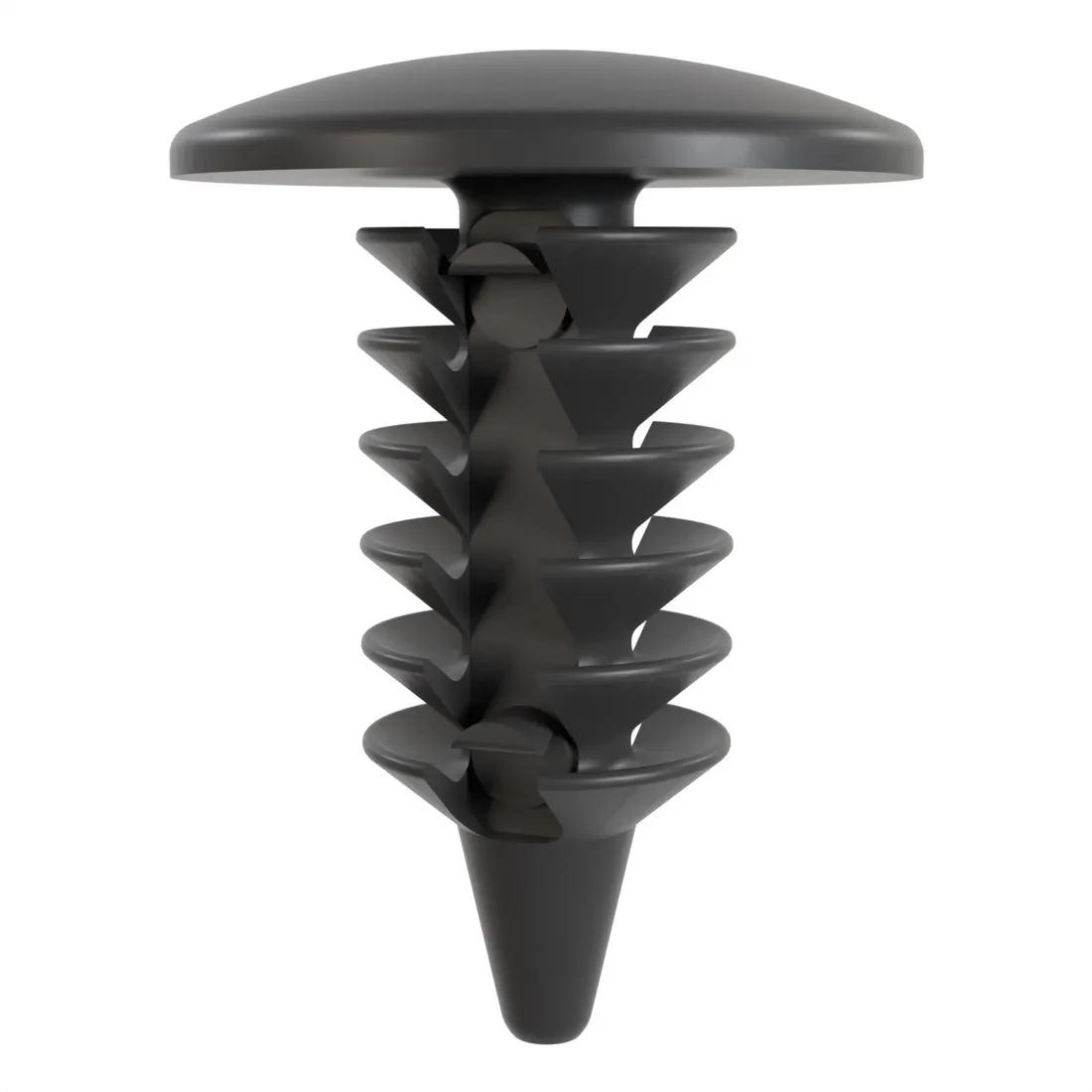

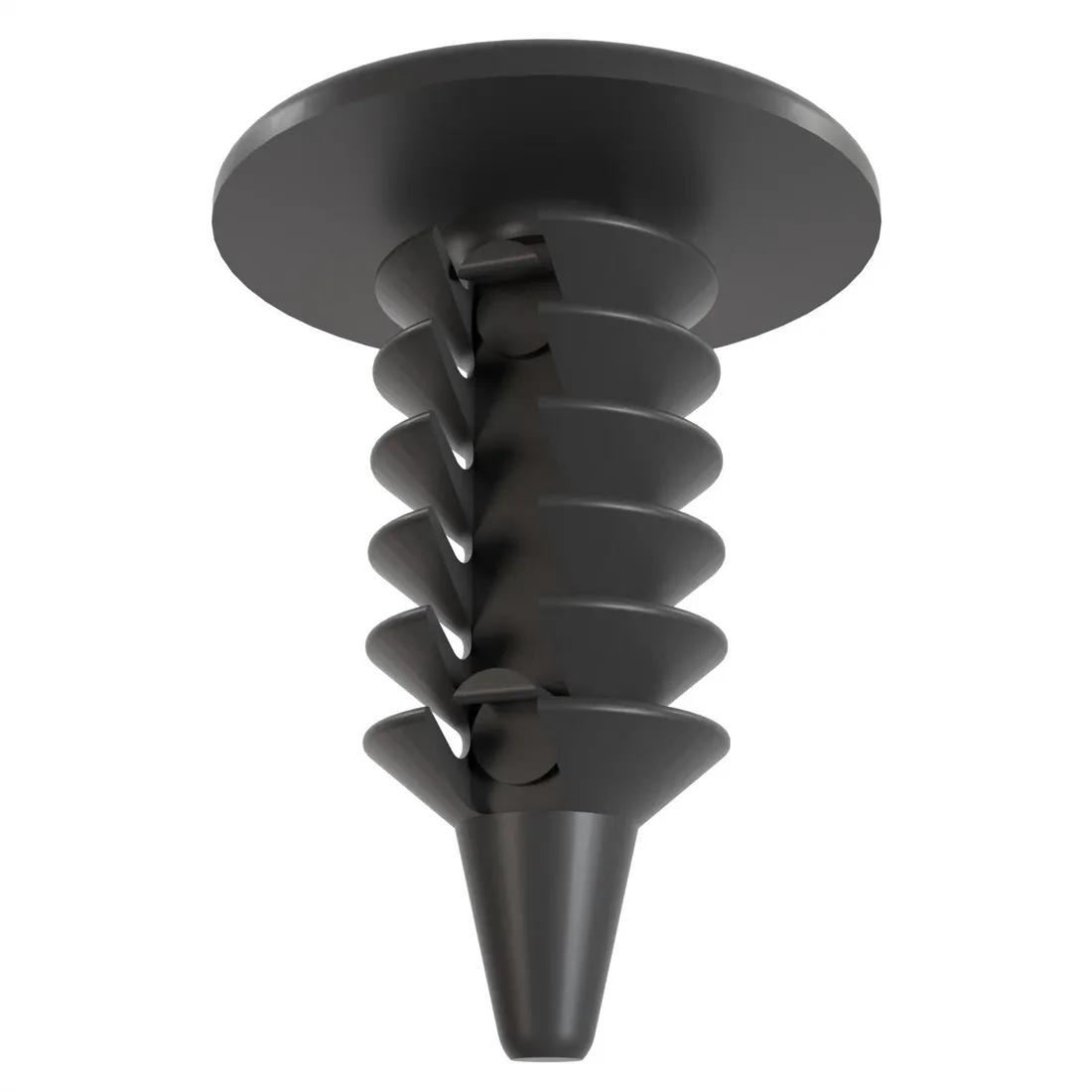

Barbed Rivet -; Compatible Hole Diameter 5.5 mm | 0.218 in; Compatible Panel Thickness Range 1.5 - 14.2 mm | 0.059 - 0.559 in;Black;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Ideal for threaded, non-threaded, drilled or punched holes. Designed to be non-removable.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.082 |
| 5000 - 9999 | $0.0738 |
| 10000 - 14999 | $0.0664 |
| 15000 - 19999 | $0.0598 |
| 20000 + | $0.0538 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.776 in |
|---|---|
| Head Diameter | 0.65 in |
| Head Height | 0.091 in |
| Compatible Hole Diameter Range | 0.217 - 0.218 in |
| Compatible Panel Thickness Range | 0.059 - 0.559 in |
| Overall Height | 0.862 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | Type 1 |
| Rivet Head Shape | Mushroom |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
