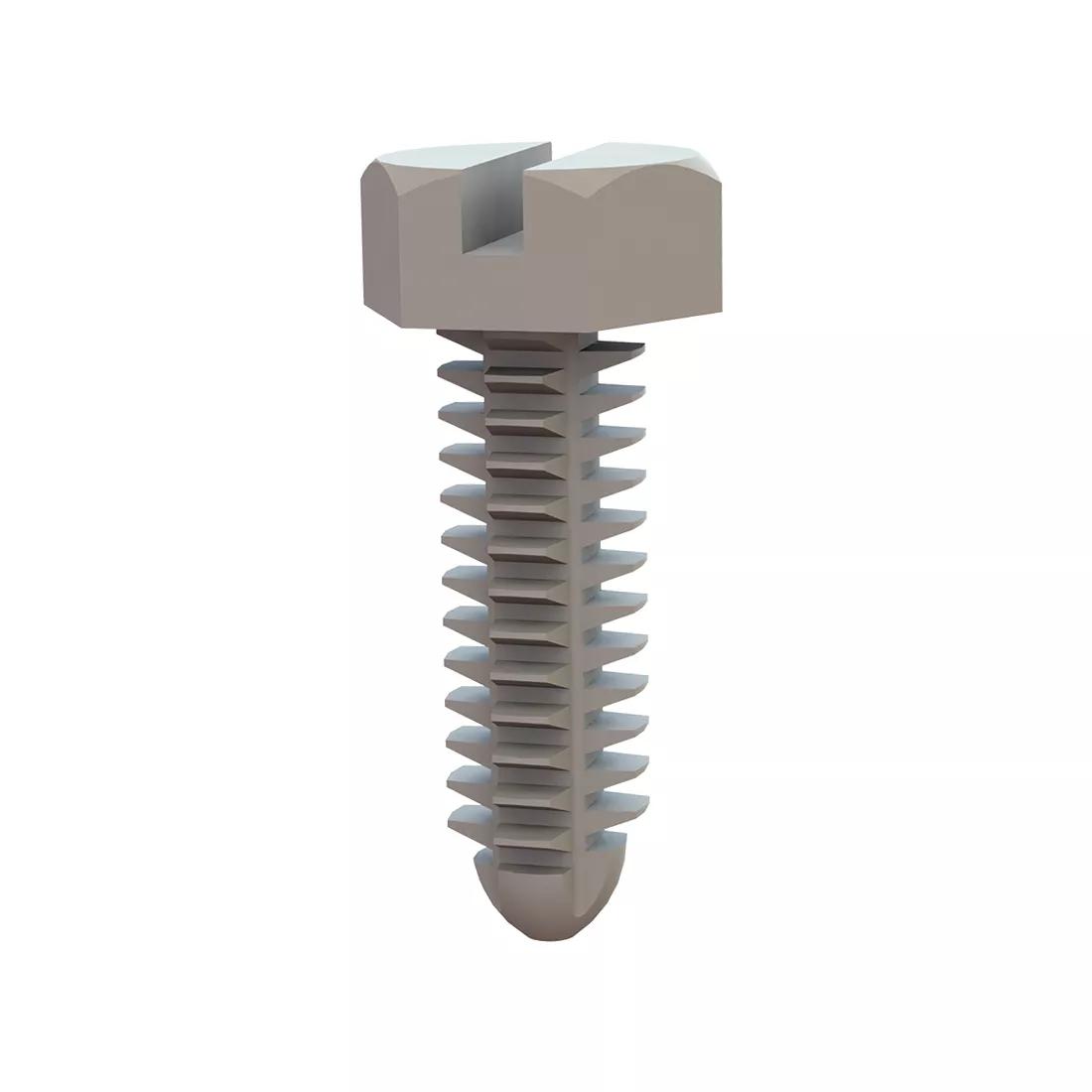

Push-In Rivet - Natural; Nylon; Compatible Panel Thickness Range 2.3 - 4.4 mm | 0.092 - 0.175 in
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Resistant to corrosion, oil, abrasion and most chemicals.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.0896 |
| 5000 - 9999 | $0.0807 |
| 10000 - 24999 | $0.0726 |
| 25000 + | $0.0653 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.750 in |
|---|---|
| Head Diameter | 0.370 in |
| Head Height | 0.175 in |
| Compatible Hole Diameter Range | 0.203 in |
| Compatible Panel Thickness Range | 0.092 - 0.175 in |
| Operating Temperature Range | -40 - 185 °F |
| Screw Size | 1/4-20 |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed |
| Type | 1 |
| Rivet Head Shape | Hexagonal |
| Drive Type | Slotted Drive |
| Head Style | Slotted Hex |
| Rivet Fitting Style | Push-In |
