Barbed Rivet -; Compatible Hole Diameter 5.2 mm | 0.203 in; Compatible Panel Thickness Range 23.6 mm | 0.929 in;Natural;Nylon

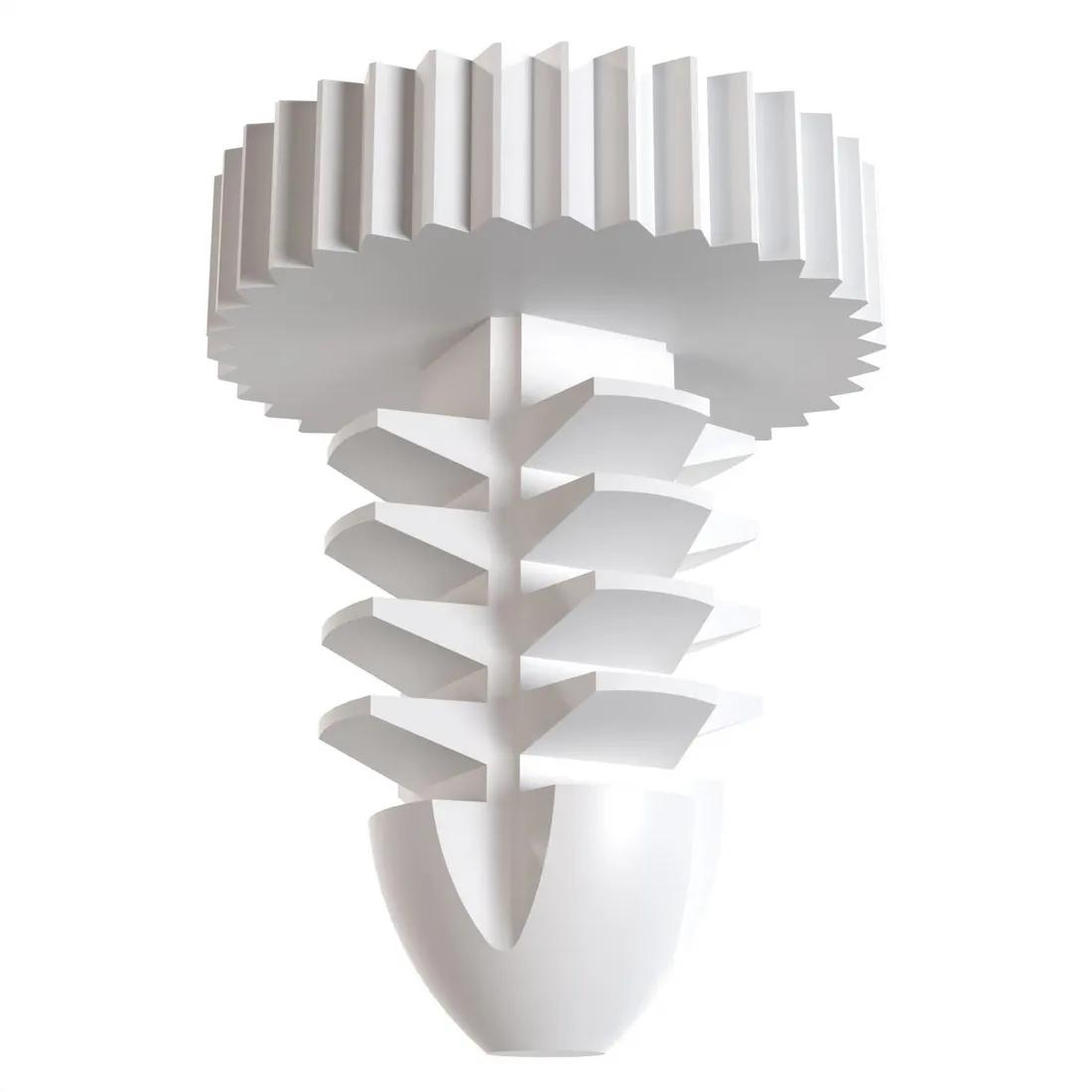

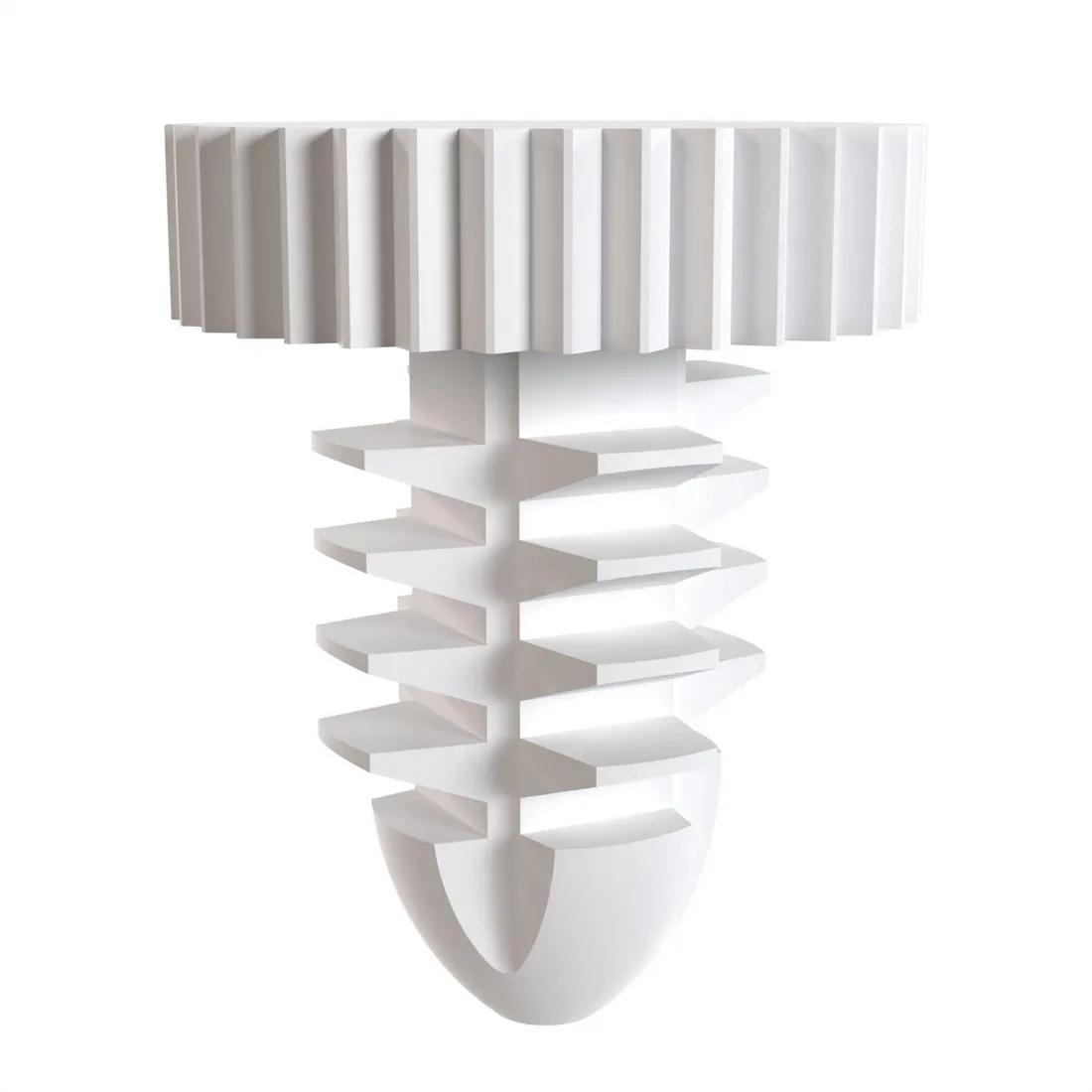

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.0608 |
| 5000 - 9999 | $0.0547 |
| 10000 - 24999 | $0.0493 |
| 25000 + | $0.0443 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.374 in |
|---|---|
| Head Diameter | 0.374 in |
| Head Height | 0.094 in |
| Compatible Hole Diameter Range | 0.205 - 0.203 in |
| Compatible Panel Thickness Range | 0.929 in |
| Overall Height | 0.469 in |
| Screw Size | 1/4-20 |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | 1 |
| Rivet Head Shape | Flat |
| Drive Type | Non Slotted Drive |
| Head Style | Knurled |
| Rivet Fitting Style | Push-In |
