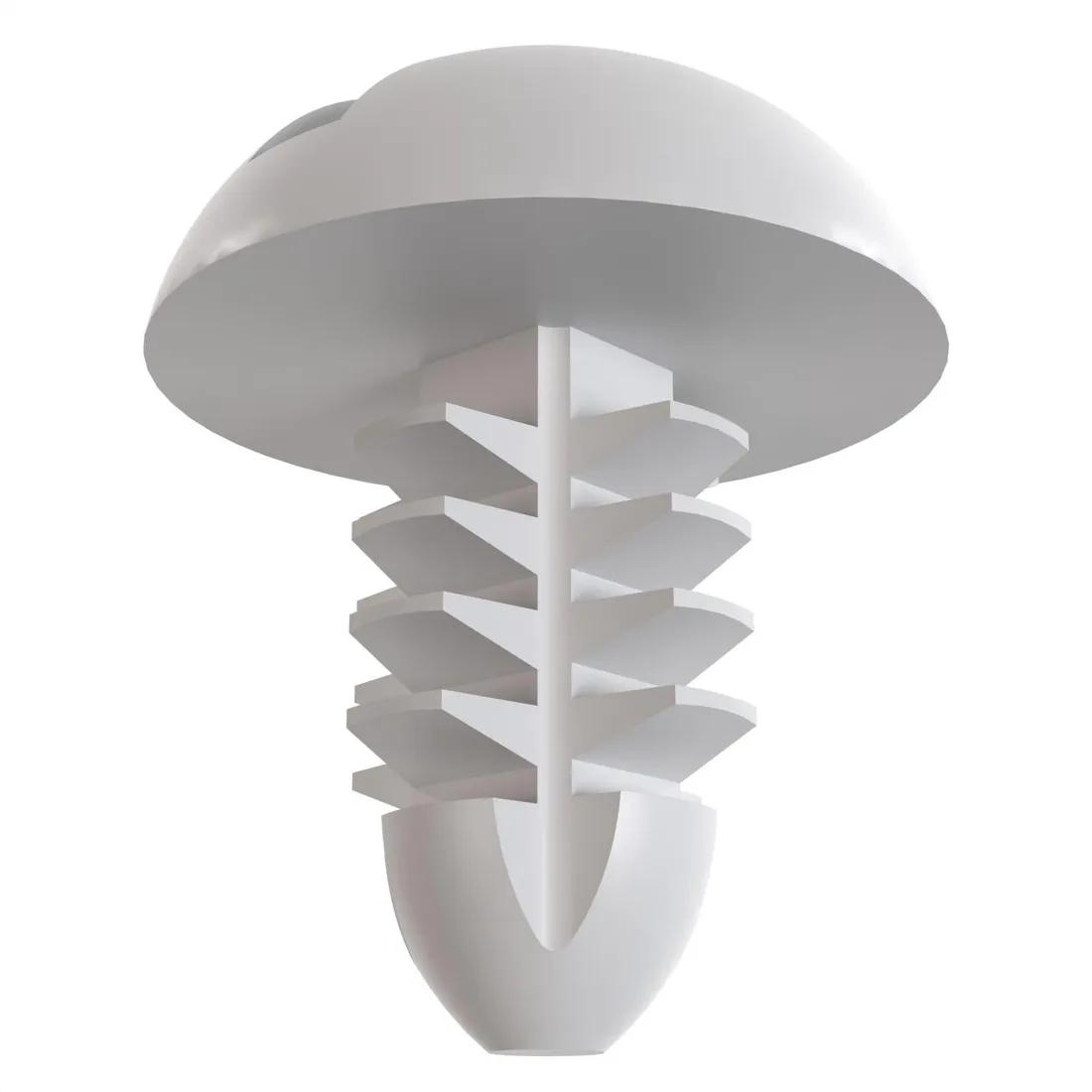

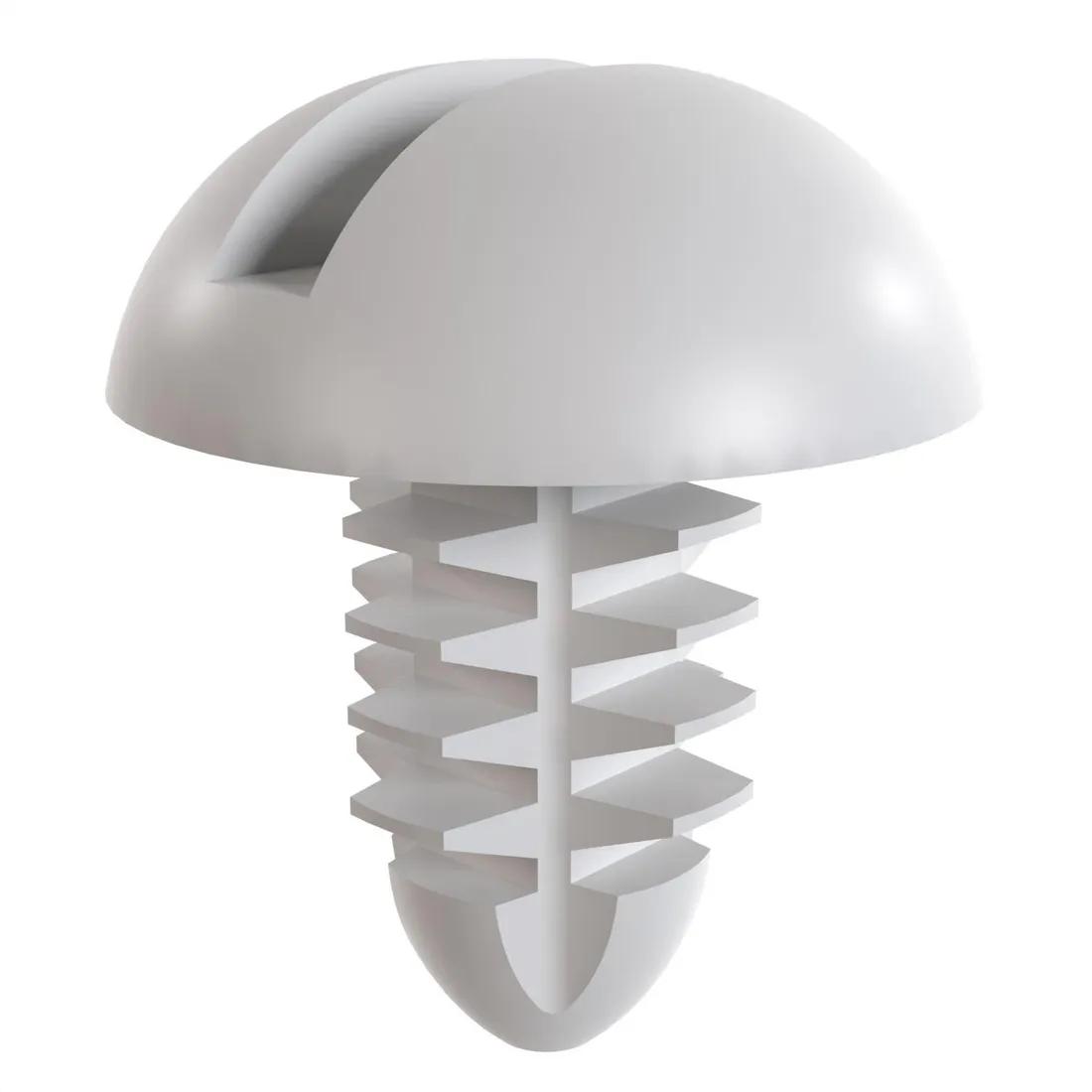

Barbed Rivet -; Compatible Hole Diameter 5.2 mm | 0.203 in; Compatible Panel Thickness Range 12.7 mm | 0.5 in;Natural;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Resistant to corrosion, oil, abrasion, and most chemicals.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.0887 |
| 5000 - 9999 | $0.0798 |
| 10000 - 24999 | $0.0718 |
| 25000 + | $0.0647 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.5 in |
|---|---|
| Head Diameter | 0.449 in |
| Head Height | 0.161 in |
| Compatible Hole Diameter Range | 0.205 - 0.203 in |
| Compatible Panel Thickness Range | 0.5 in |
| Slot Depth | 0.075 in |
| Overall Height | 0.661 in |
| Screw Size | 1/4-20 |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | 1 |
| Rivet Head Shape | Round |
| Drive Type | Slotted Drive |
| Head Style | Slotted Round |
| Rivet Fitting Style | Push-In |
