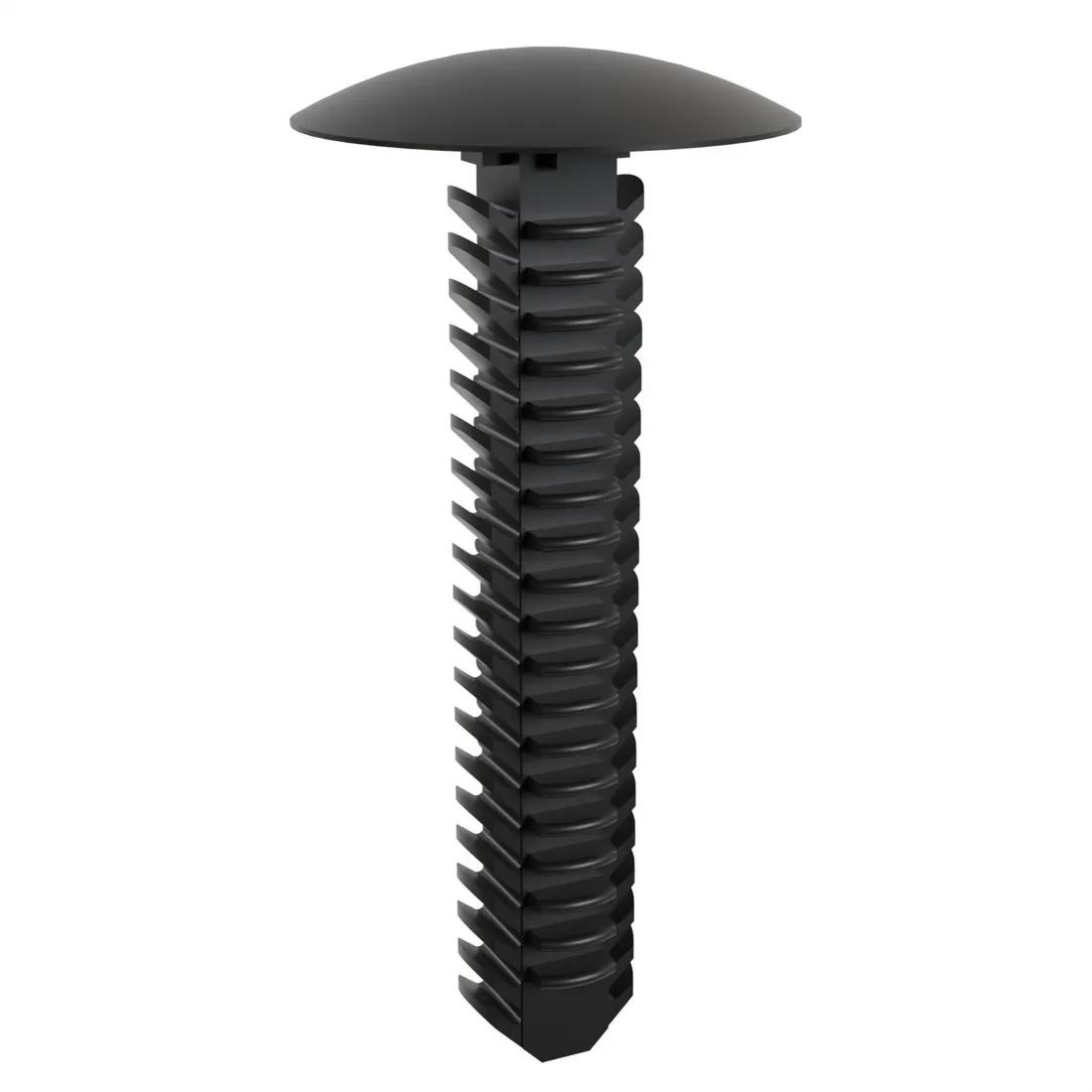

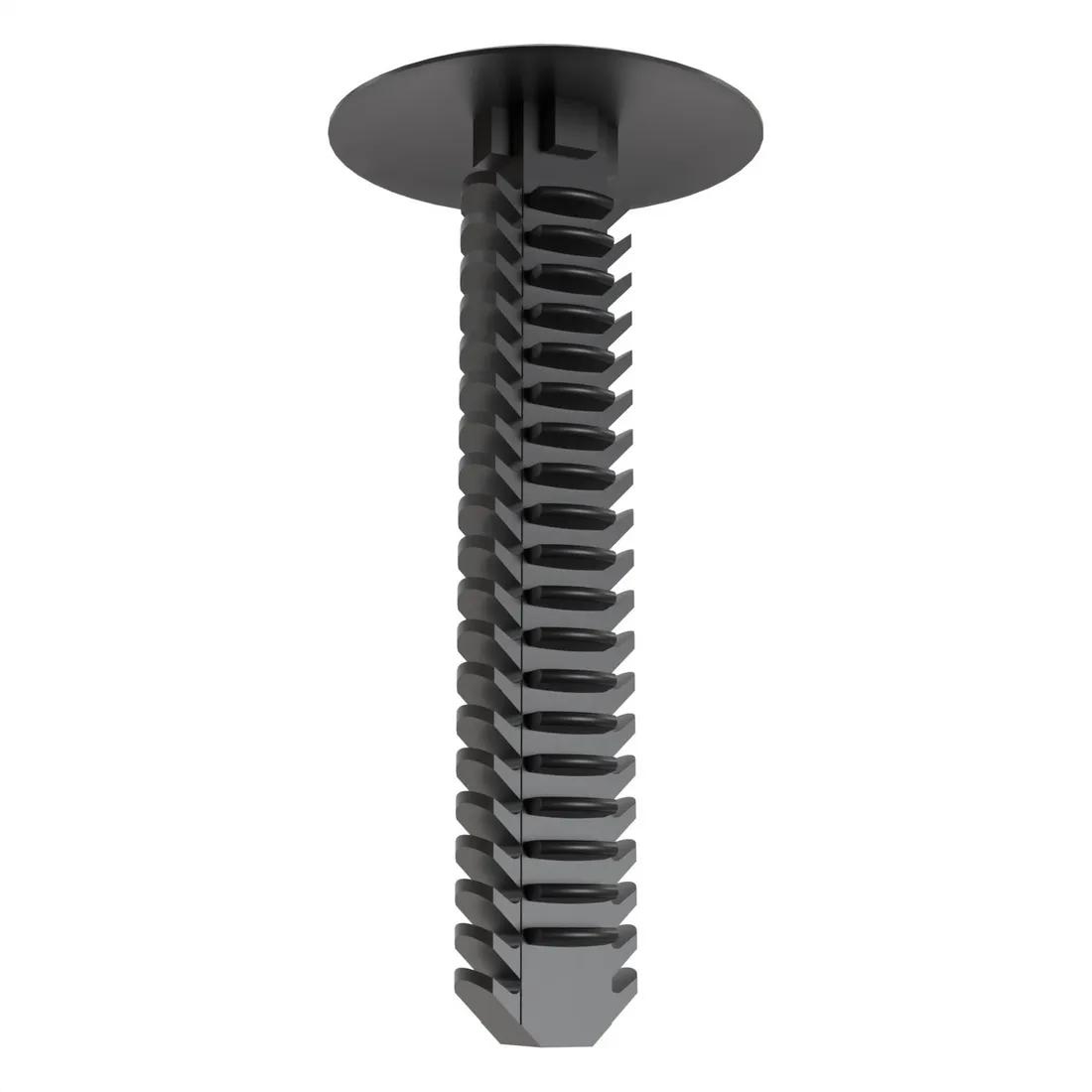

Fir Tree -; Compatible Hole Diameter 7.9 mm | 0.312 in; Compatible Panel Thickness Range 1.6 - 38.1 mm | 0.063 - 1.5 in;Black;PA
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.2638 |
| 5000 - 9999 | $0.2374 |
| 10000 - 14999 | $0.2136 |
| 15000 - 19999 | $0.1923 |
| 20000 + | $0.1731 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 1.417 in |
|---|---|
| Head Diameter | 0.874 in |
| Head Height | 0.098 in |
| Compatible Hole Diameter Range | 0.311 in |
| Compatible Panel Thickness Range | 0.063 - 1.5 in |
| Overall Height | 1.516 in |
| Color | Black |
| Full Material | Polyamide 66 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Fir Tree |
| Type | 1 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
