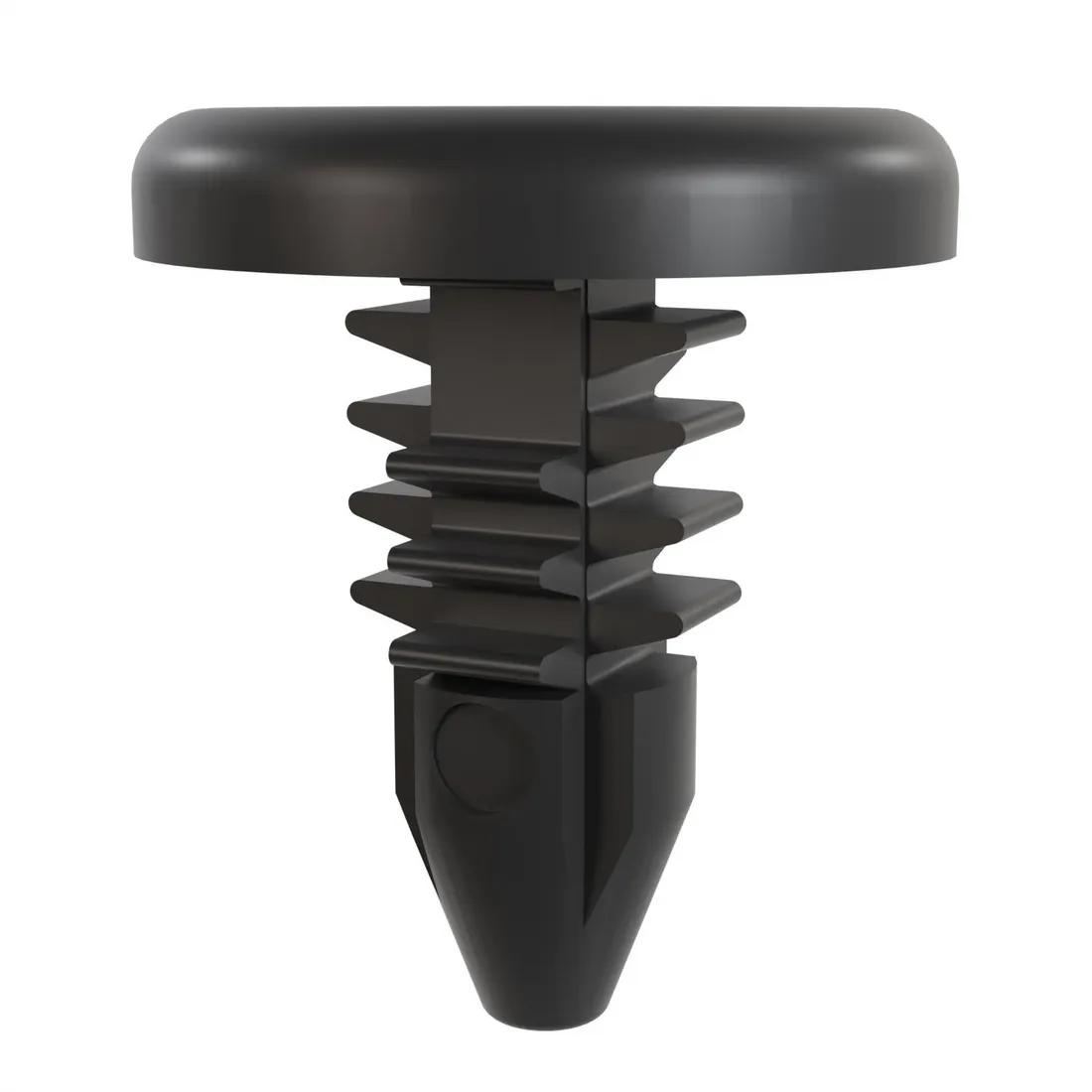

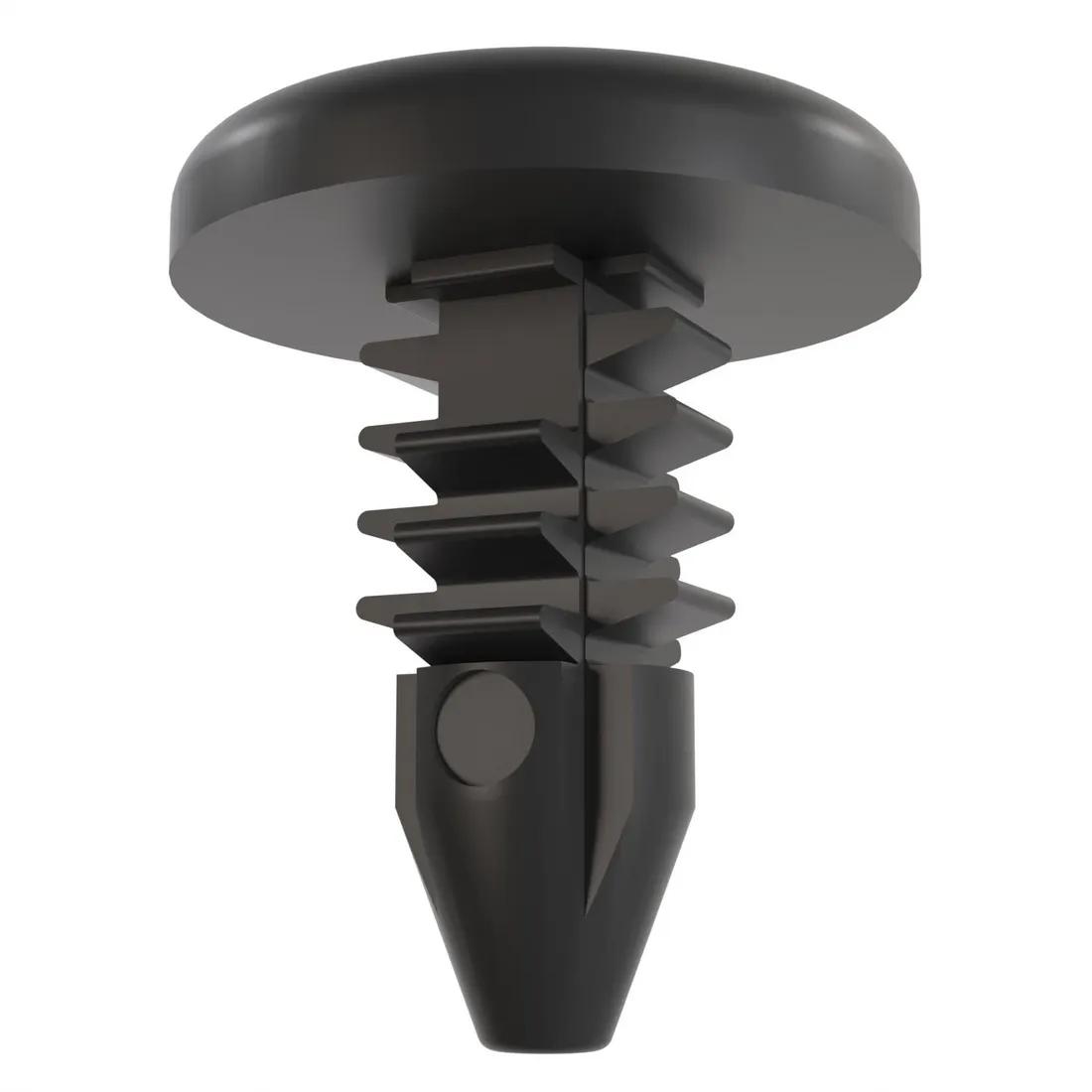

Barbed Rivet -; Compatible Hole Diameter 4.6 mm | 0.182 in; Compatible Panel Thickness Range 0.9 - 5.3 mm | 0.035 - 0.209 in;Black;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.0324 |
| 5000 - 9999 | $0.0291 |
| 10000 - 24999 | $0.0262 |
| 25000 + | $0.0236 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.437 in |
|---|---|
| Head Diameter | 0.437 in |
| Head Height | 0.075 in |
| Compatible Hole Diameter Range | 0.193 - 0.192 in |
| Compatible Panel Thickness Range | 0.035 - 0.209 in |
| Overall Height | 0.512 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | 1 |
| Rivet Head Shape | Flat |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
