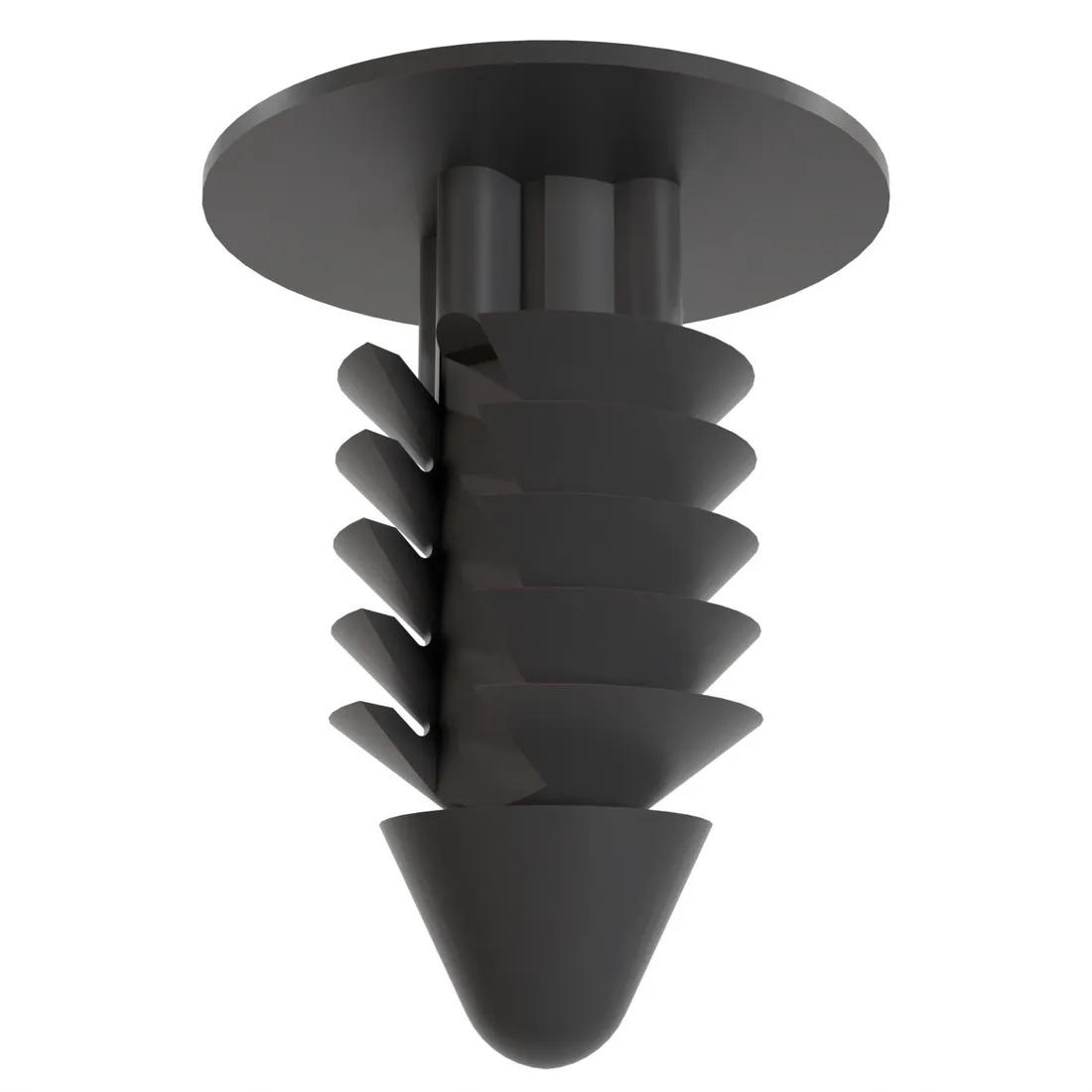

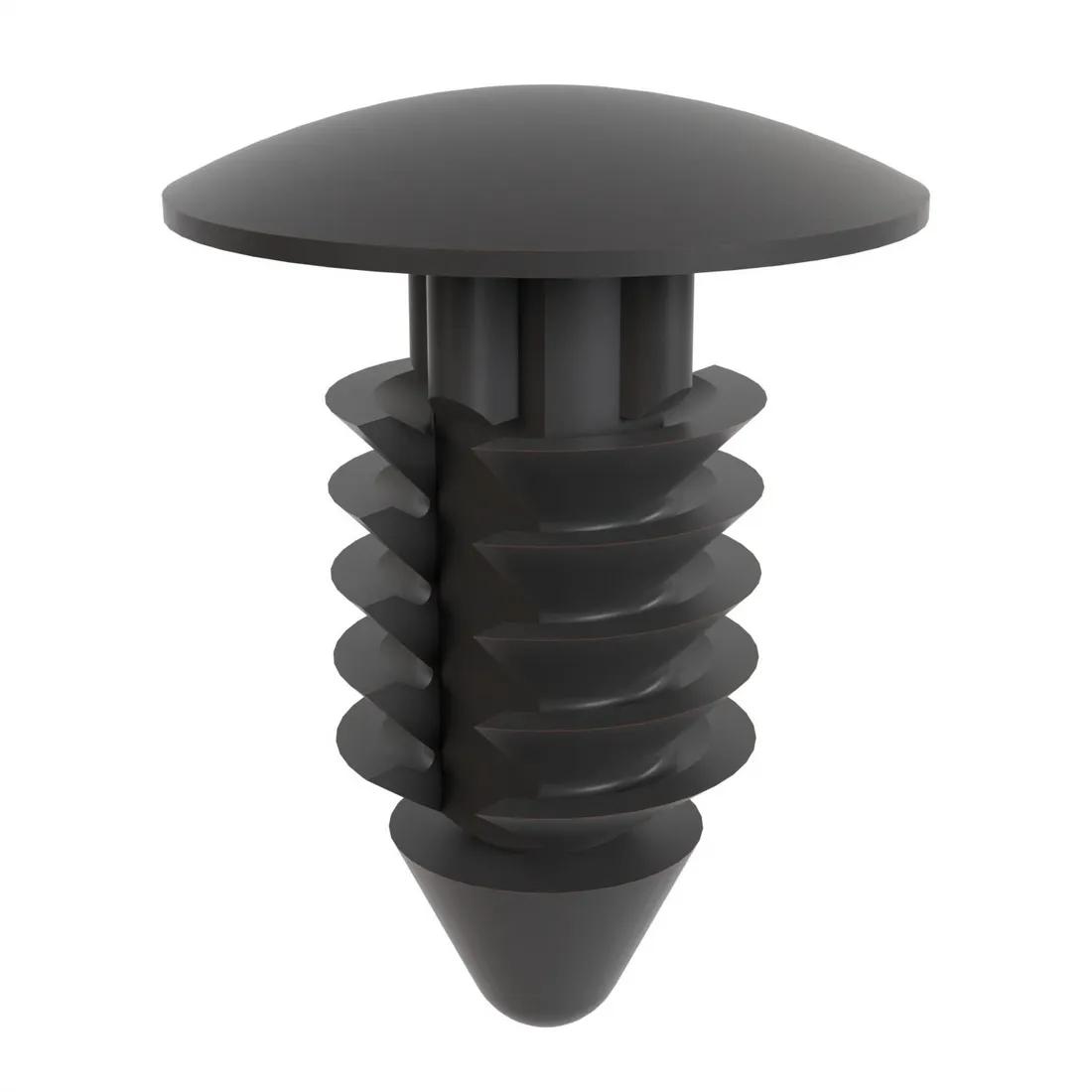

Barbed Rivet -; Compatible Hole Diameter 4.8 mm | 0.189 in; Compatible Panel Thickness Range 0.6 - 9.2 mm | 0.024 - 0.363 in;Black;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Ideal for threaded, non-threaded, drilled or punched holes.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1374 |
| 10000 + | $0.1174 |
Useful Information
Specifications
Imperial
Metric
| Anchor Length | 0.5 in |
|---|---|
| Head Diameter | 0.374 in |
| Head Height | 0.071 in |
| Compatible Hole Diameter Range | 0.189 in |
| Compatible Panel Thickness Range | 0.024 - 0.362 in |
| Overall Height | 0.571 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Barbed Rivet |
| Type | Type 1 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
