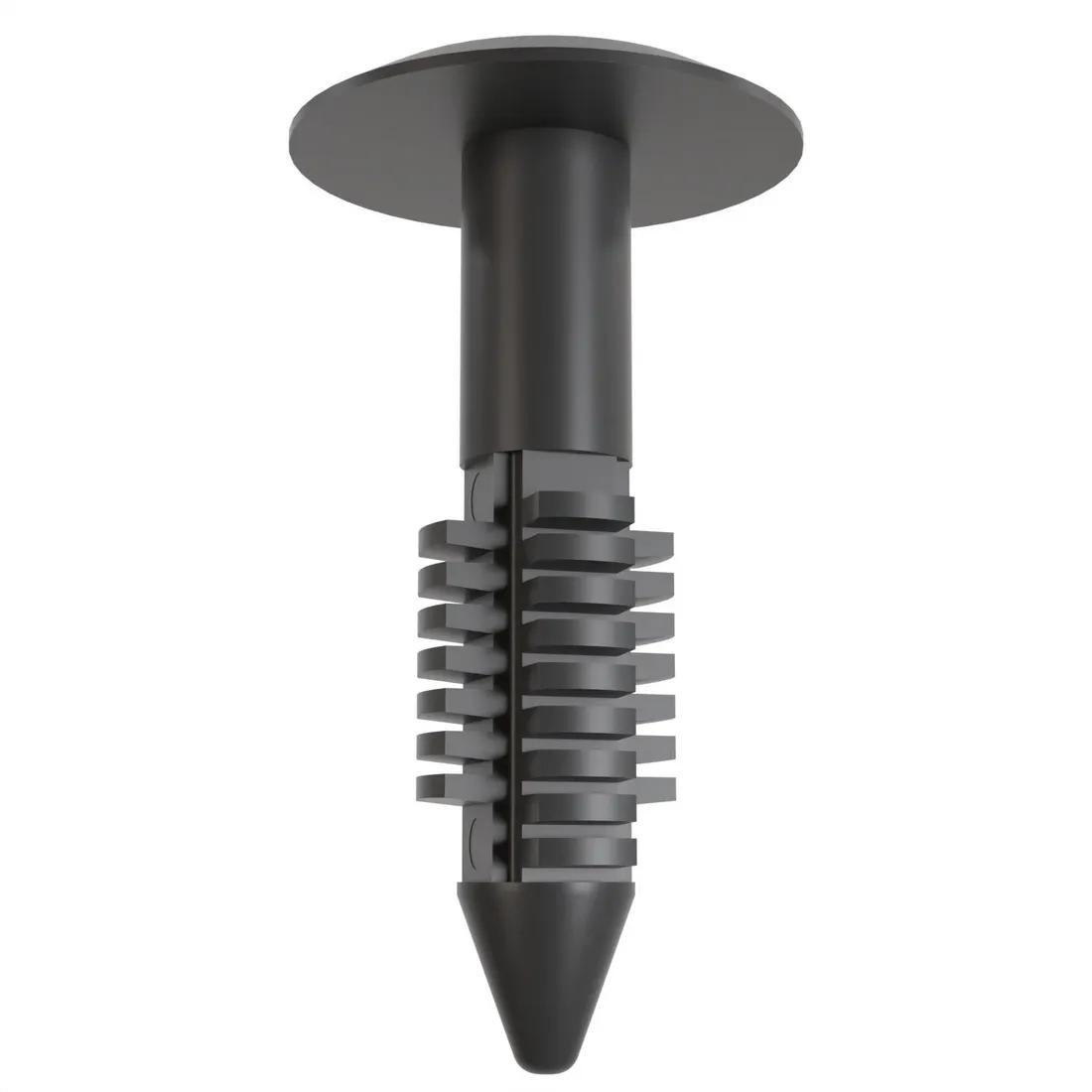

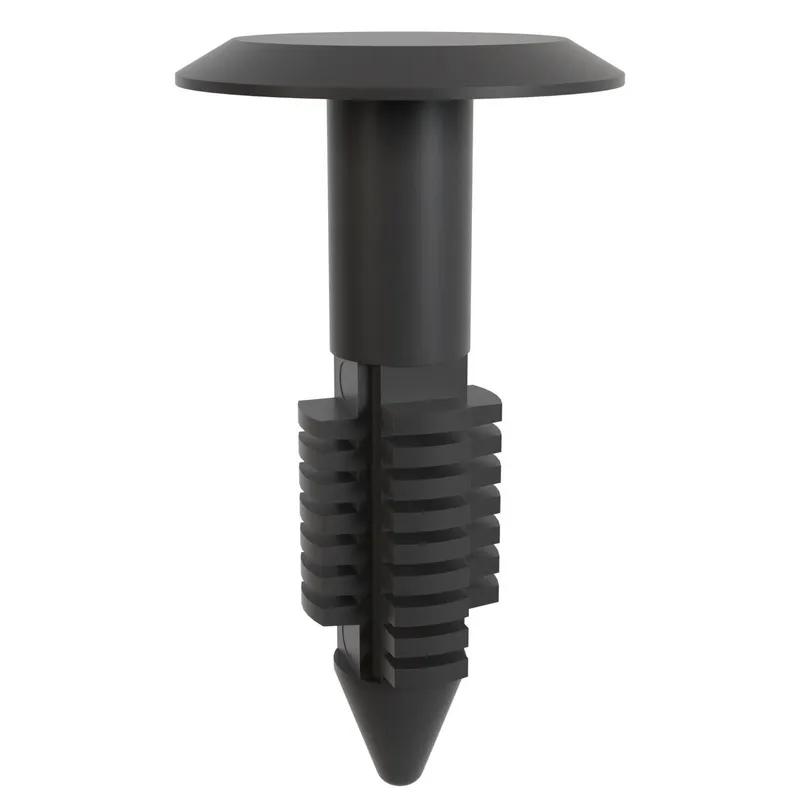

Fir Tree -; Compatible Hole Diameter 7.1 mm | 0.281 in; Compatible Panel Thickness Range 19.7 - 43.8 mm | 0.776 - 1.724 in;Black;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
WARNING: This product can expose you to chemicals including lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.3165 |
| 5000 - 9999 | $0.2506 |
| 10000 - 24999 | $0.2159 |
| 25000 - 49999 | $0.1913 |
| 50000 + | $0.1665 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 2 in |
|---|---|
| Head Diameter | 0.65 in |
| Head Height | 0.063 in |
| Compatible Hole Diameter Range | 0.28 in |
| Compatible Panel Thickness Range | 0.776 - 1.724 in |
| Overall Height | 2.063 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Fir Tree |
| Type | 1 |
| Rivet Head Shape | Pan |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
