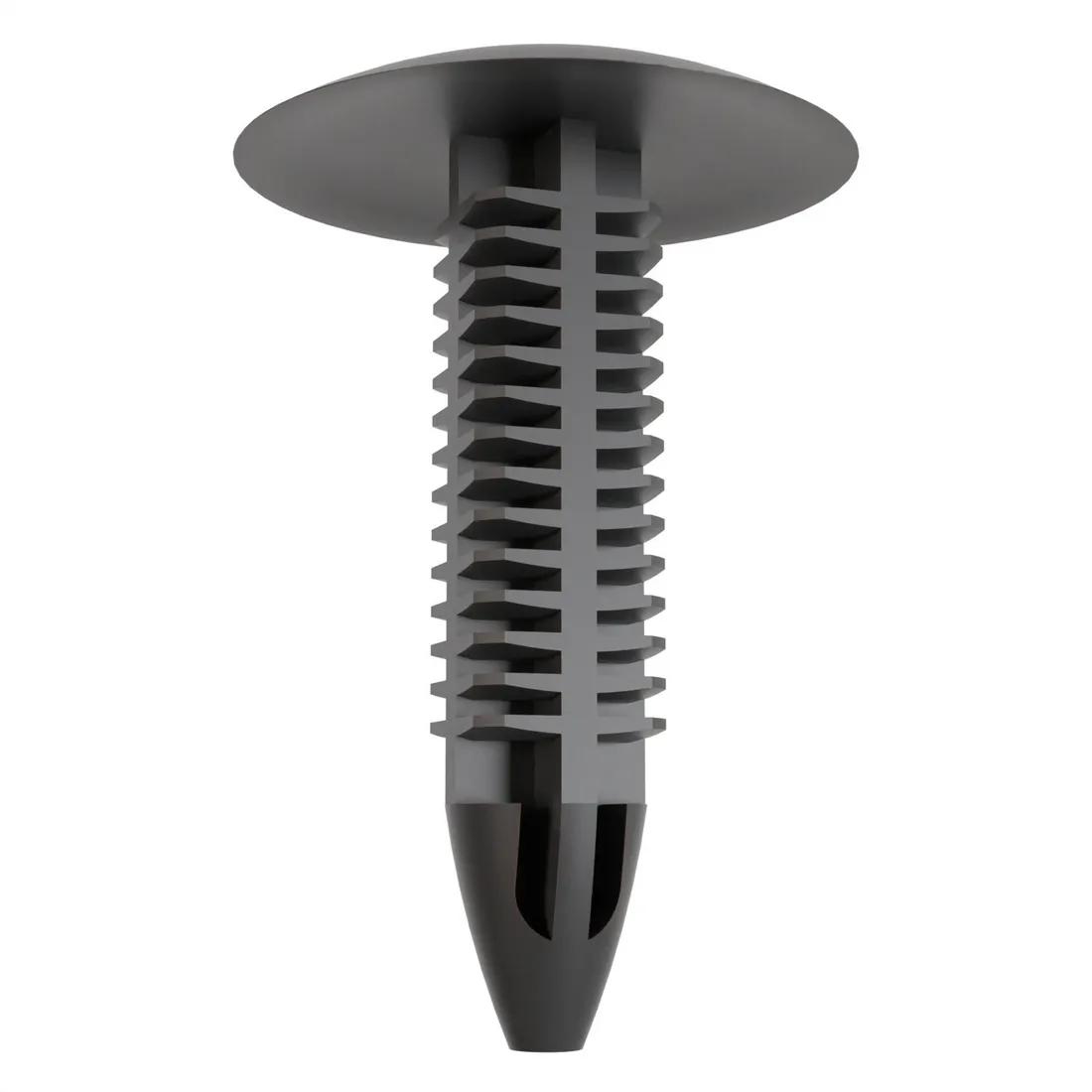

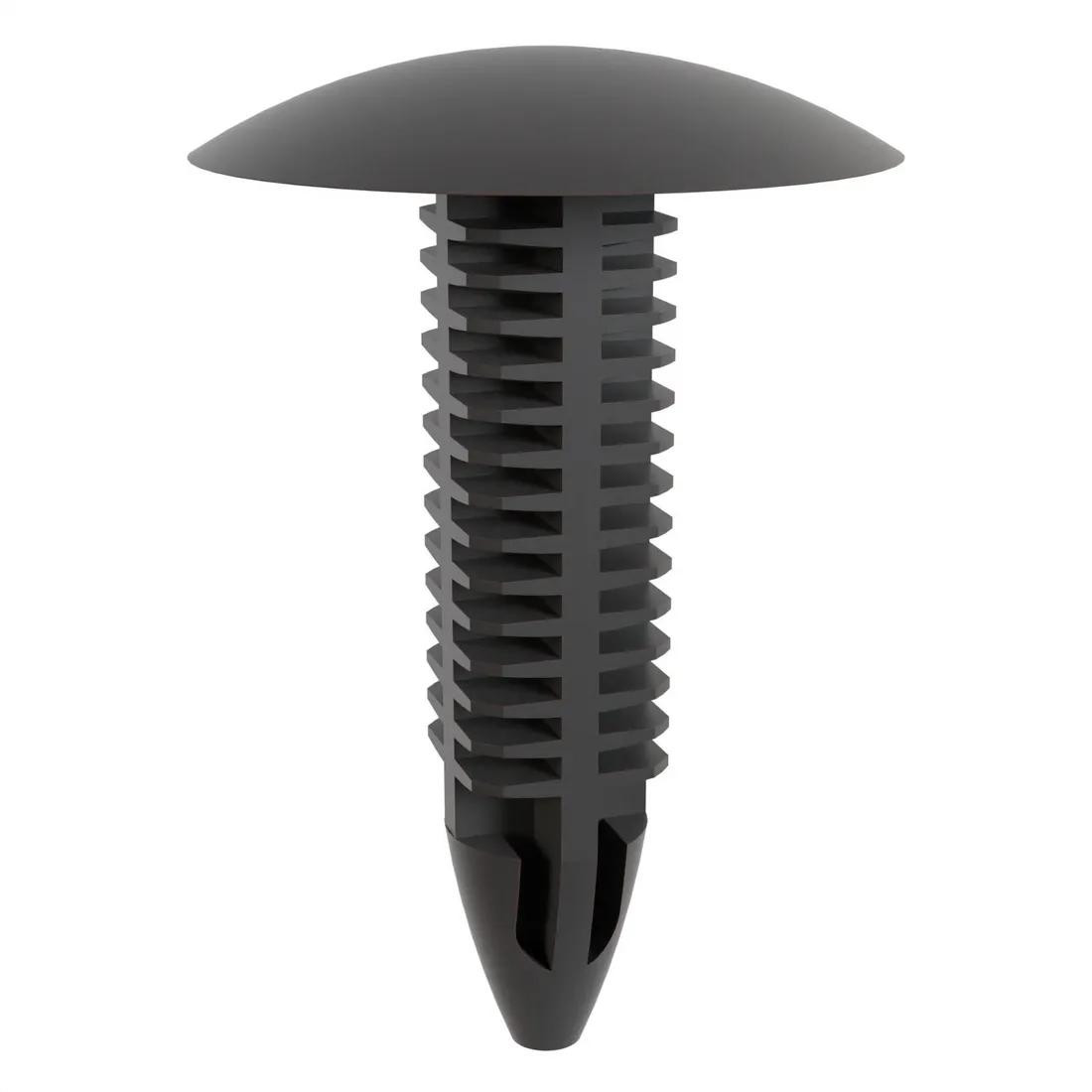

Fir Tree -; Compatible Hole Diameter 7 mm | 0.276 in; Compatible Panel Thickness Range 2 - 15 mm | 0.079 - 0.591 in;Black;Nylon

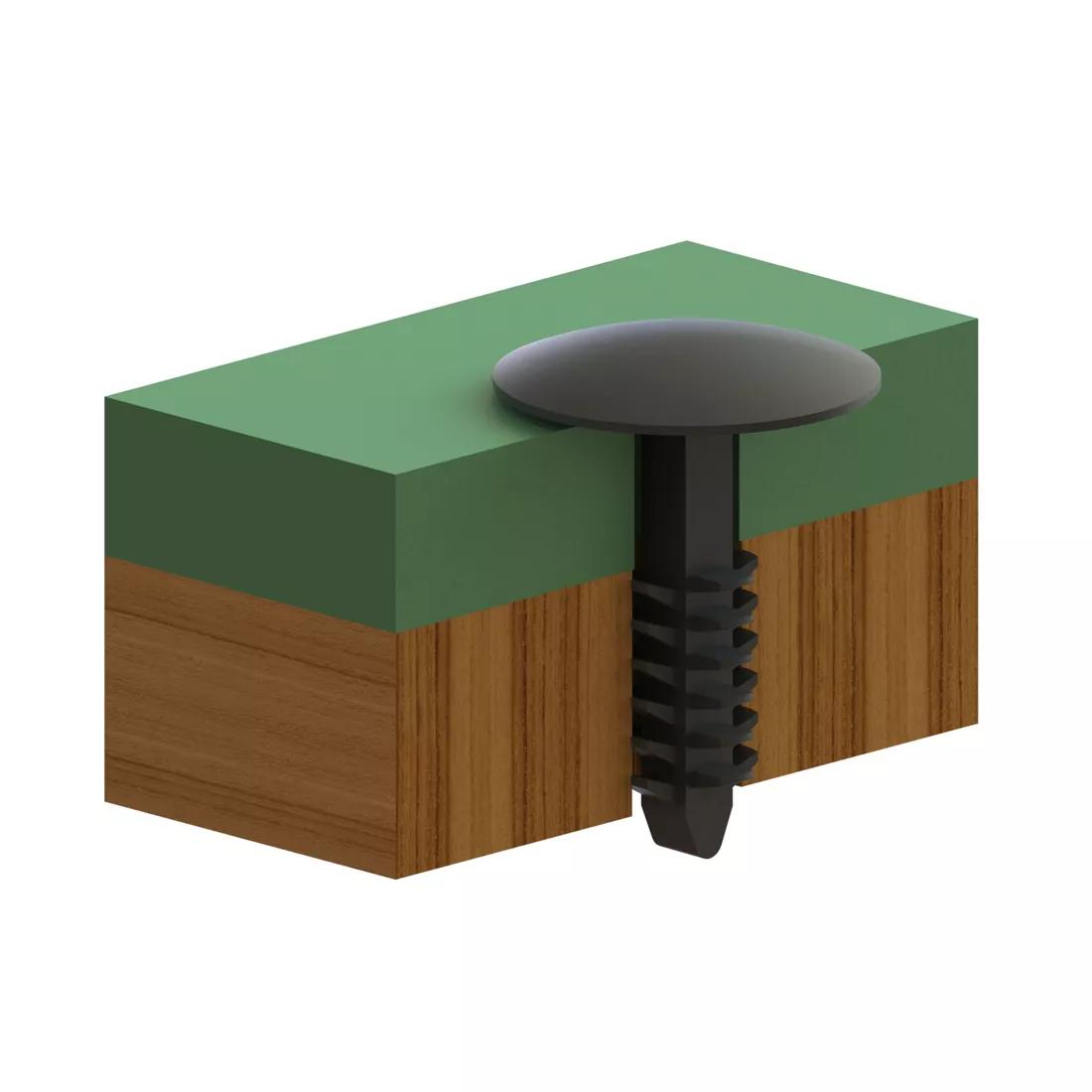

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Flame retardant properties.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.7921 |
| 5000 - 9999 | $0.6268 |
| 10000 - 24999 | $0.5398 |
| 25000 - 49999 | $0.4897 |
| 50000 + | $0.4263 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.972 in |
|---|---|
| Head Diameter | 0.701 in |
| Head Height | 0.102 in |
| Compatible Hole Diameter Range | 0.276 - 0.276 in |
| Compatible Panel Thickness Range | 0.079 - 0.591 in |
| Overall Height | 1.075 in |
| Color | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-0 |
| Rivet Type | Fir Tree |
| Type | Type 3 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
