Pawl Lock -; Compatible Hole Diameter 5.5 mm | 0.217 in; Compatible Panel Thickness Range 2.1 mm | 0.082 in;Natural;Nylon

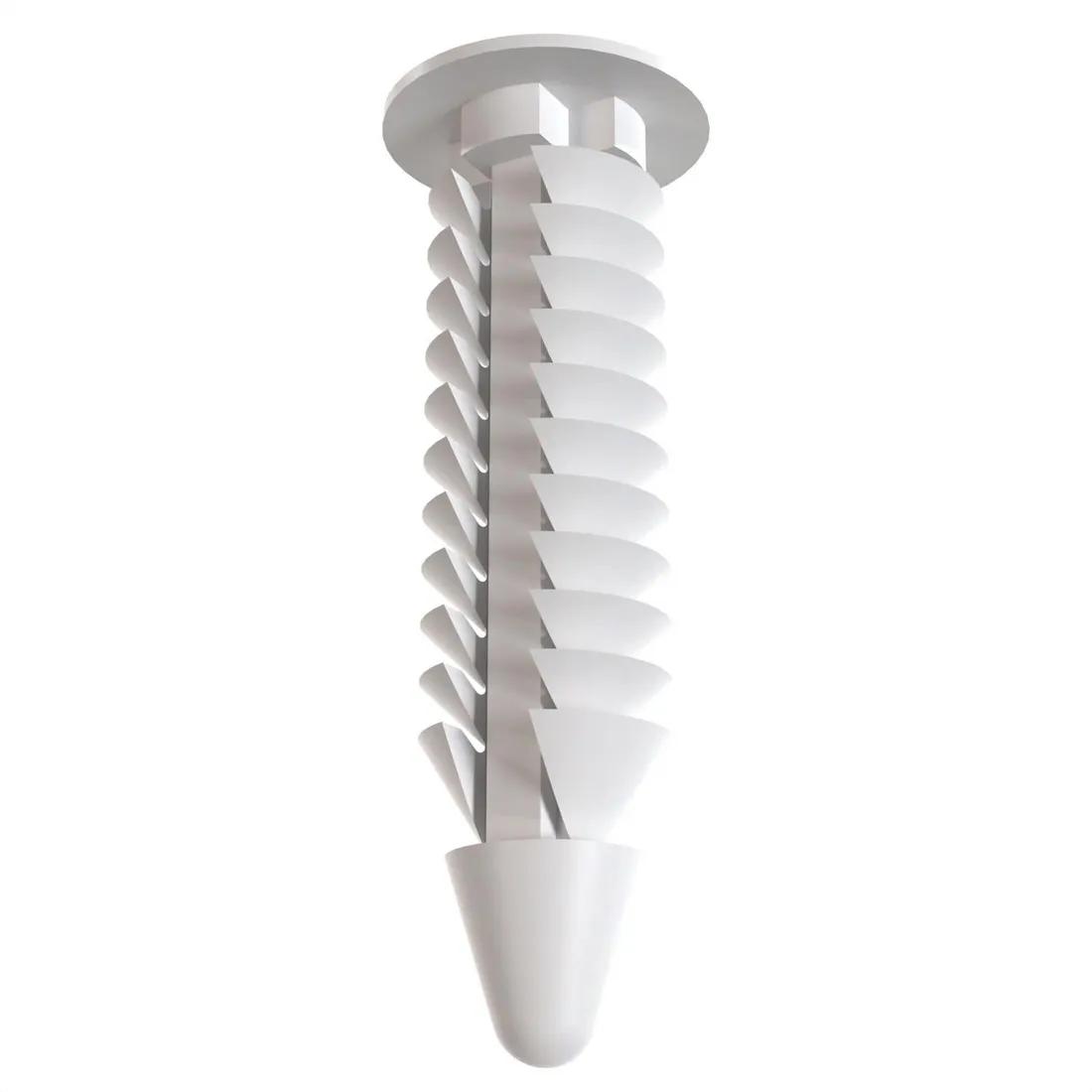

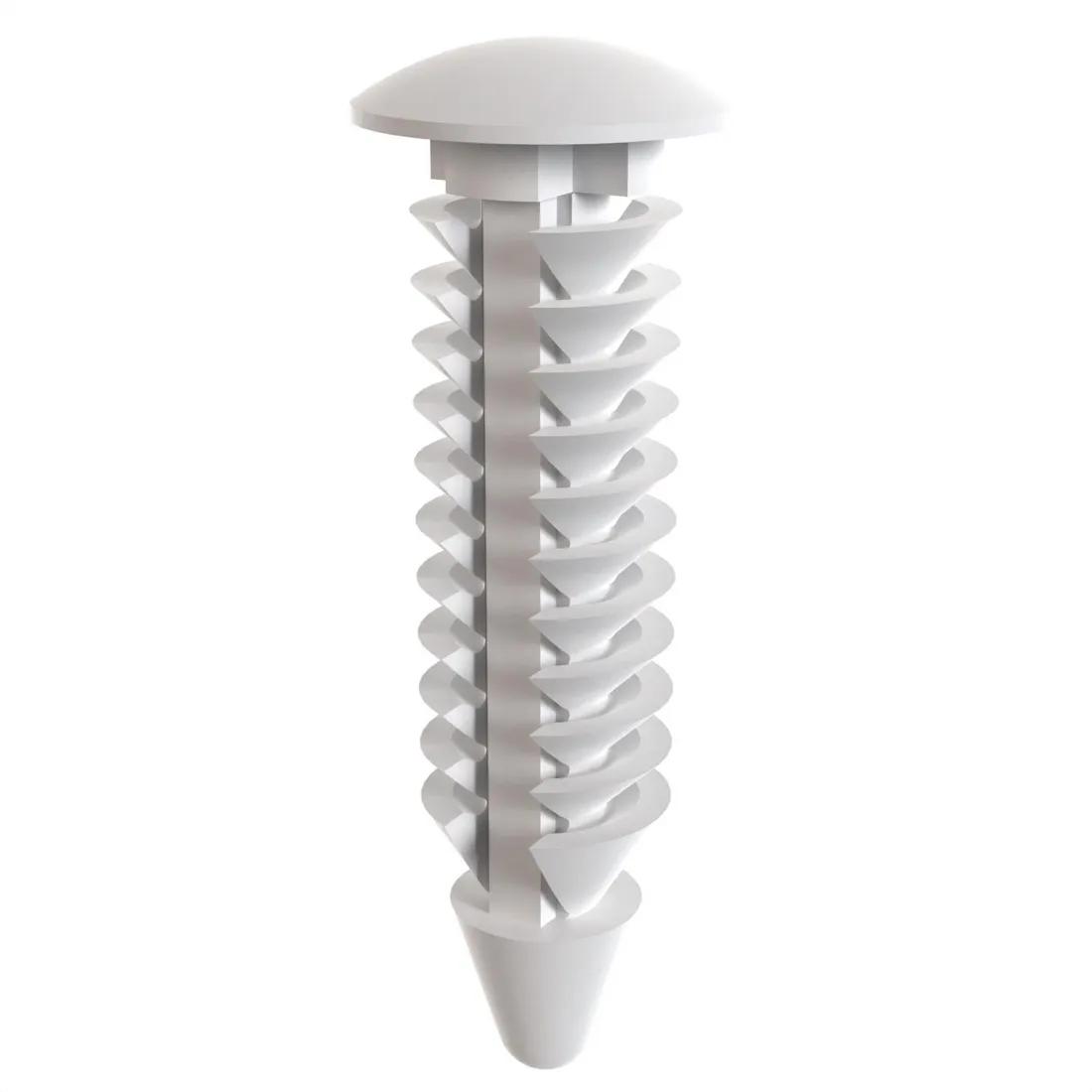

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.2421 |
| 5000 - 9999 | $0.1912 |
| 10000 - 24999 | $0.1647 |
| 25000 - 49999 | $0.1468 |
| 50000 + | $0.1275 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.197 in |
|---|---|
| Head Diameter | 0.354 in |
| Head Height | 0.071 in |
| Compatible Hole Diameter Range | 0.217 - 0.216 in |
| Compatible Panel Thickness Range | 0.083 in |
| Overall Height | 1.055 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Pawl Lock |
| Type | 2 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
