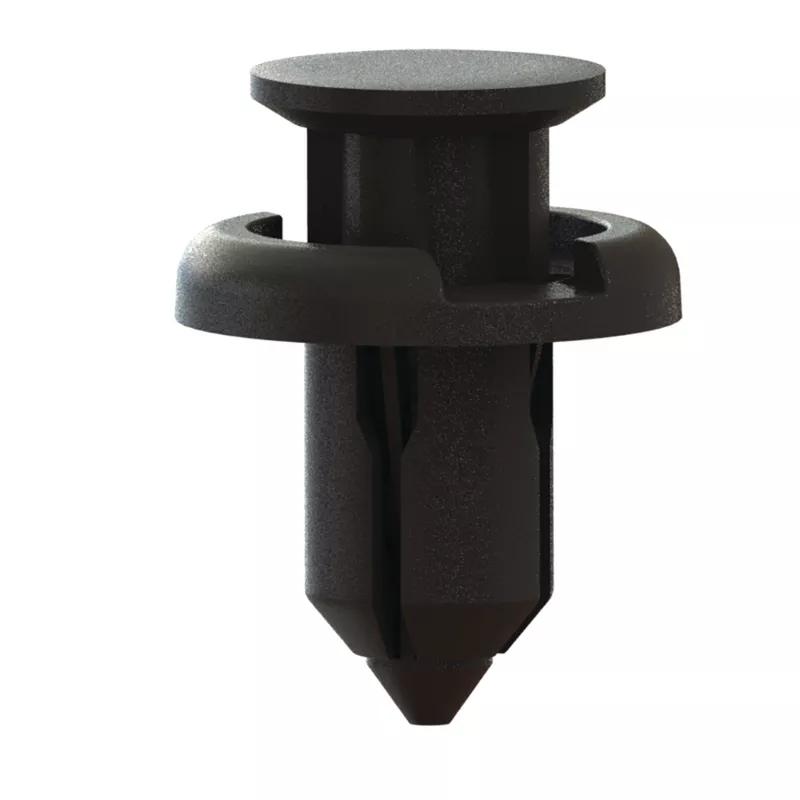

Push-In Rivet - Black; PP;Acetal; Compatible Panel Thickness Range 5.5 - 7 mm | 0.217 - 0.276 in
Snap-In Rivets can be quickly installed by hand. Pin is driven into the grommet, which expands as the pin is inserted. This provides a tight fit. Ideal for any application in need of a front-mount rivet.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.6166 |
| 10000 + | $0.4112 |
Useful Information
Documents
Specifications
Imperial
Metric
| Compatible Hole Diameter | 0.394 in |
|---|---|
| Compatible Panel Thickness Range | 0.217 - 0.276 in |
| Head Diameter | 0.787 in |
| Head Height | 0.142 in |
| Maximum Compatible Panel Thickness | 0.276 in |
| Maximum Operating Temperature | 149 °F |
| Minimum Compatible Panel Thickness | 0.217 in |
| Minimum Operating Temperature | 32 °F |
| Operating Temperature Range | 32 - 149 °F |
| Color | Black |
| Full Material | PP;Acetal |
| Material | PP;Acetal |
| Material Flammability Standard | UL94 HB |
| Rivet Fitting Style | Push-In |
| Rivet Head Shape | Pan |
| Rivet Type | Flush Top |
| Type | 3 |
