Retractable Spring Plungers Push Pull
In production
Push Pull Spring-Loaded Plunger Pins are available in standard thread sizes, and are an ideal choice for machining applications. These hand-retractable pins are used a fast and convenient way to make adjustment to equipment, and for the removal of accessories from equipment. Particularly good where space is limited. They can be used as indexing devices, alignment pins, loading pins and positioners.

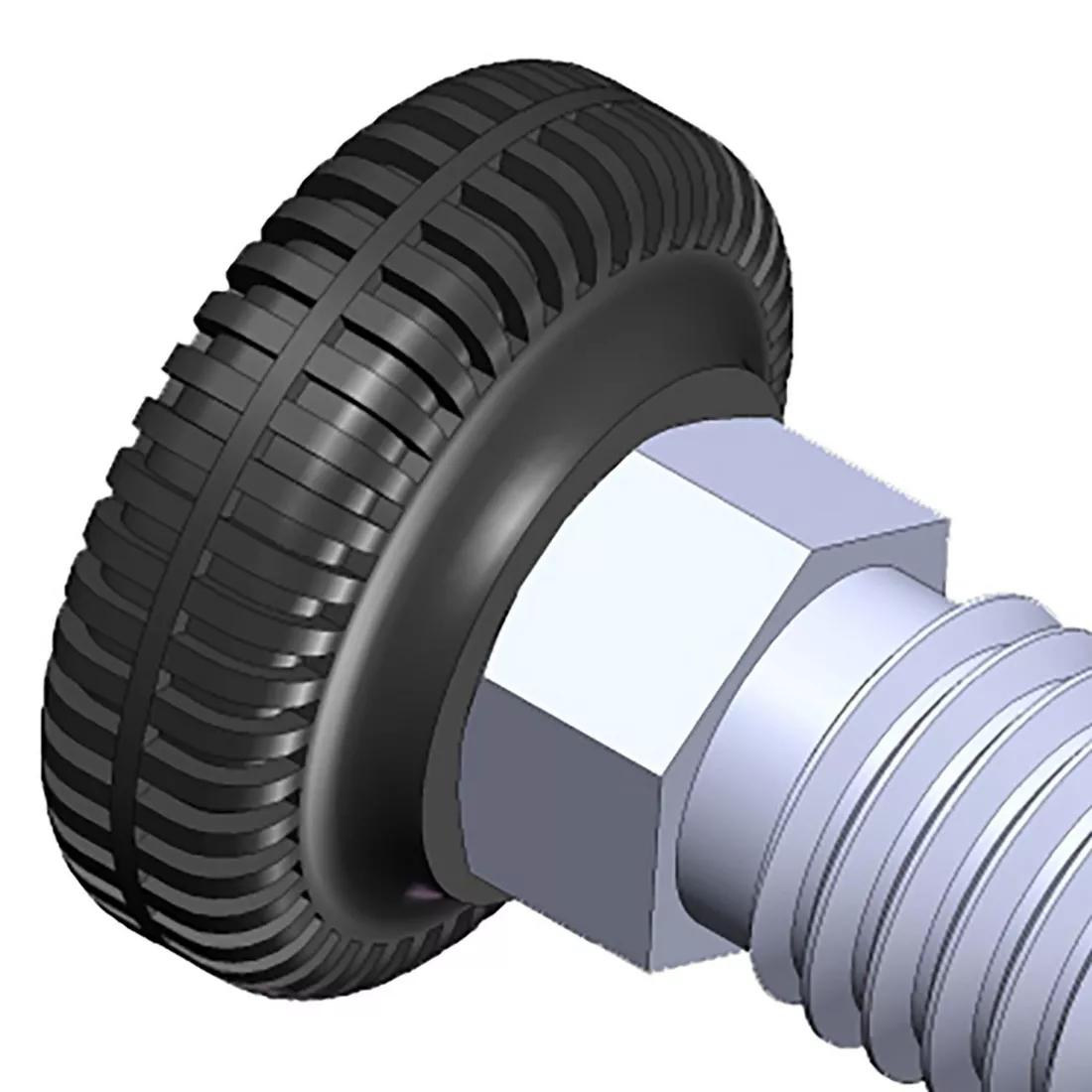

These Plastic Knob Plunger Pins are equipped with an easy to grasp push-pull knob, for withdrawing and engaging the plunger. To withdraw the plunger tip; the user must pull on the knob, adjust the work piece to re-align the perforated holes and then release to re-engage the plunger tip. An anti-vibration lock patch can be added on to the threads.
The pin material is made from Steel, which is an economical material providing good strength. Comes with a Clear Zinc Plating finish for added corrosion resistance.
Other configurations, materials and customizations are available upon request.
Request a quote
For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by

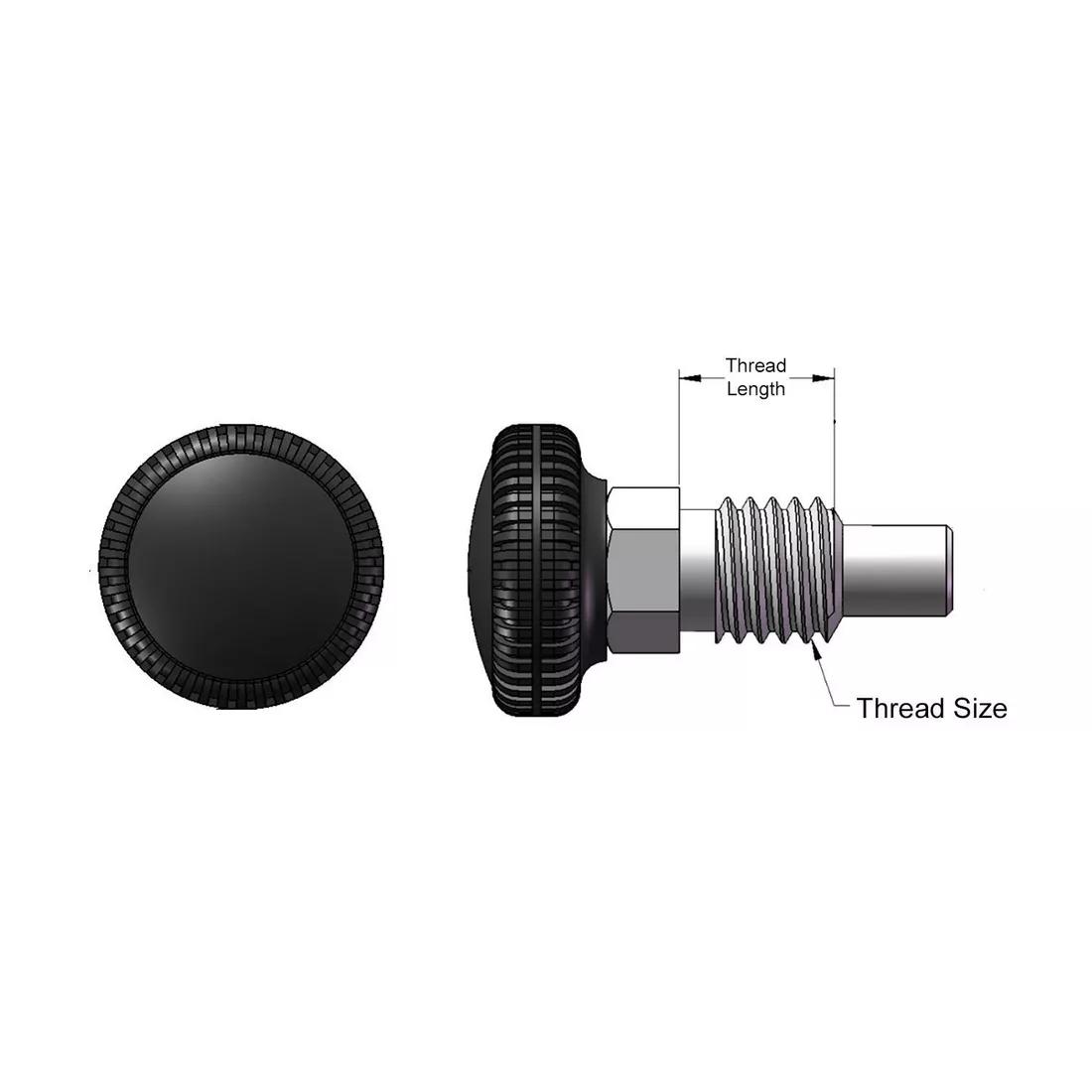

None| Price range | Availability | Thread Size | Threadlocker | Thread Length | View | |
|---|---|---|---|---|---|---|
| $6.89 - $9.01 | Request the lead time here |
1/4-20
|
No
|
0.310 in
|
||
| Request the lead time here |
1/4-20
|
Yes
|
0.310 in
|
|||
| $7.46 - $9.75 | Request the lead time here |
3/8-16
|
Yes
|
0.311 in
|
||
| $7.46 - $9.75 | Request the lead time here |
3/8-16
|
No
|
0.440 in
|
||
| $8.89 - $11.61 | Request the lead time here |
1/2-13
|
No
|
0.681 in
|
||
| $8.89 - $11.61 | Request the lead time here |
1/2-13
|
Yes
|
0.430 in
|
||
Retractable Spring Plunger - Push Pull; 1/4-20; Thread Length - 7.9 mm | 0.310 in; Non Lock-Out; Trivalent Zinc
- Price Range
- $9.01 - $6.89
- Stock Levels
- Request the lead time here
Attributes
-
Thread Size
1/4-20 -
Finish
Trivalent Zinc -
Material
Steel -
Thread Length
0.310 in -
Locking Function
Non Lock-Out
Retractable Spring Plunger - Push Pull; 1/4-20; Thread Length - 7.9 mm | 0.310 in; Non Lock-Out; Zinc-Plated
- Stock Levels
- Request the lead time here
Attributes
-
Thread Size
1/4-20 -
Finish
Zinc-Plated -
Material
Steel -
Thread Length
0.310 in -
Locking Function
Non Lock-Out
Retractable Spring Plunger - Push Pull; 3/8-16; Thread Length - 7.9 mm | 0.310 in; Non Lock-Out; Zinc-Plated
- Price Range
- $9.75 - $7.46
- Stock Levels
- Request the lead time here
Attributes
-
Thread Size
3/8-16 -
Finish
Zinc-Plated -
Material
Steel -
Thread Length
0.311 in -
Locking Function
Non Lock-Out
Retractable Spring Plunger - Push Pull; 3/8-16; Thread Length - 11.2 mm | 0.440 in; Non Lock-Out; Trivalent Zinc
- Price Range
- $9.75 - $7.46
- Stock Levels
- Request the lead time here
Attributes
-
Thread Size
3/8-16 -
Finish
Trivalent Zinc -
Material
Steel -
Thread Length
0.440 in -
Locking Function
Non Lock-Out
Retractable Spring Plunger - Push Pull; 1/2-13; Thread Length - 17.3 mm | 0.680 in; Non Lock-Out; Trivalent Zinc
- Price Range
- $11.61 - $8.89
- Stock Levels
- Request the lead time here
Attributes
-
Thread Size
1/2-13 -
Finish
Trivalent Zinc -
Material
Steel -
Thread Length
0.681 in -
Locking Function
Non Lock-Out
N/A - Push Pull; 1/2-13; Thread Length - 10.9 mm | 0.430 in; Non Lock-Out; Zinc-Plated
- Price Range
- $11.61 - $8.89
- Stock Levels
- Request the lead time here
Attributes
-
Thread Size
1/2-13 -
Finish
Zinc-Plated -
Material
Steel -
Thread Length
0.430 in -
Locking Function
Non Lock-Out
