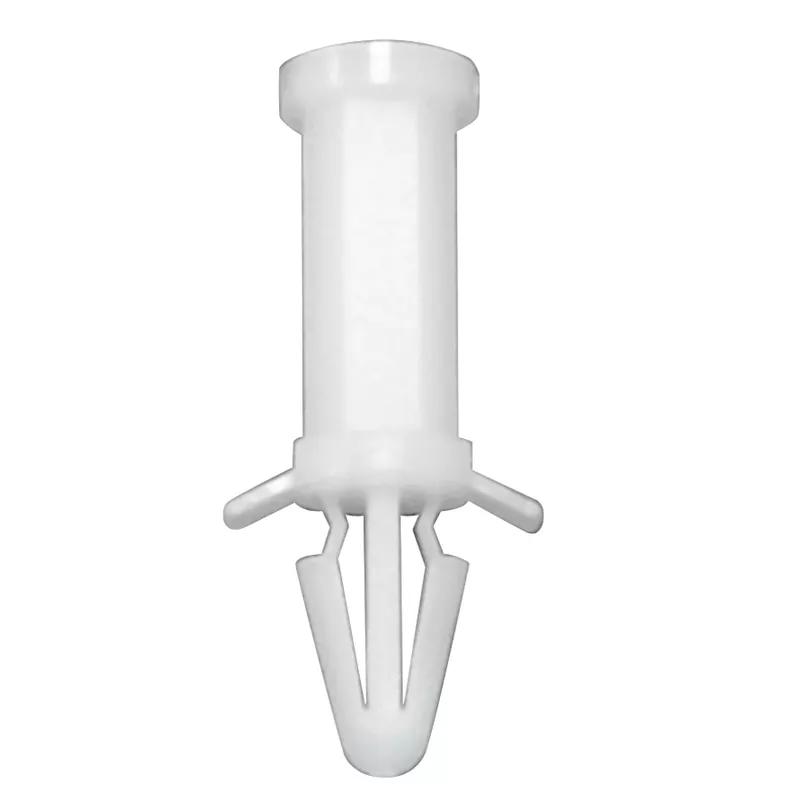

Screw Support - Compatible Thread Sizes M3; Spacer Length 20 mm | 0.787 in
This Natural UL94 V-2 Nylon spacer has a top fix that is Snap Lock, going into a diameter hole with maximum panel thickness of . The bottom hole is a M3 Self Tapping Screw female thread. It has a 20 mm | 0.787 in long spacer.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.3951 |
| 10000 - 24999 | $0.3591 |
| 25000 + | $0.3294 |
Useful Information
Documents
Specifications
Imperial
Metric

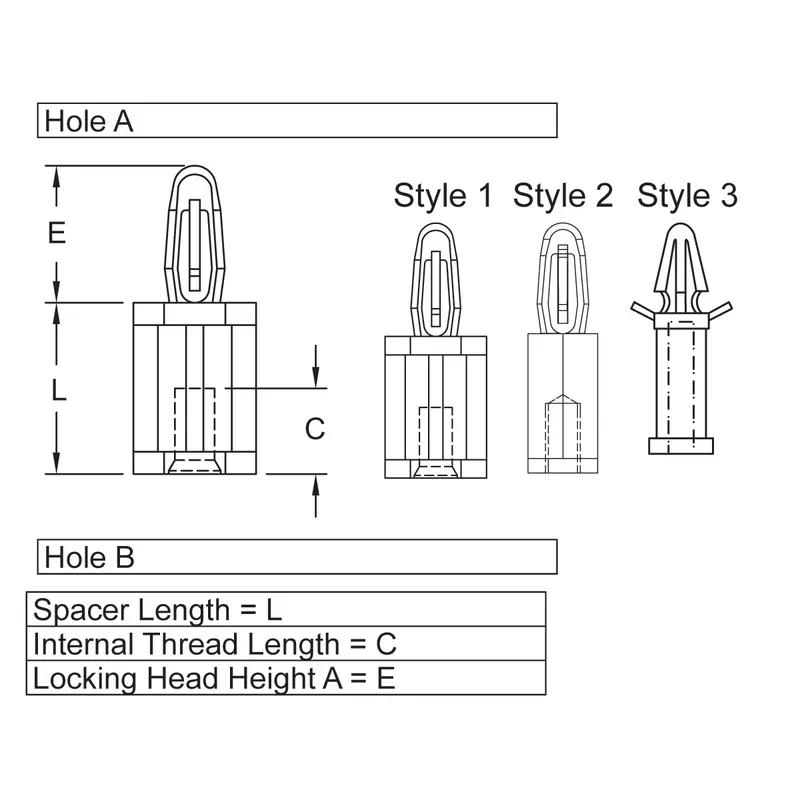

| Hole Diameter A | 0.157 in |
|---|---|
| Locking Head Height A | 0.290 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.047 in |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Panel Thickness A Range | 0.047 in |
| Spacer Length | 0.787 in |
| Color | Natural |
| Compatible Thread Sizes (All) | M3 |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Female Thread Fix |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
| Special Features | Self-Tapping Screw |
| Style | 3 |
