Natural Nylon Standard Washer Shoulder Washer - Outside Diameter 9.4 mm | 0.372 in; Base Height 9.8 mm | 0.387 in; Base Outside Diameter 5.1 mm | 0.201 in; Compatible Screw Sizes 8

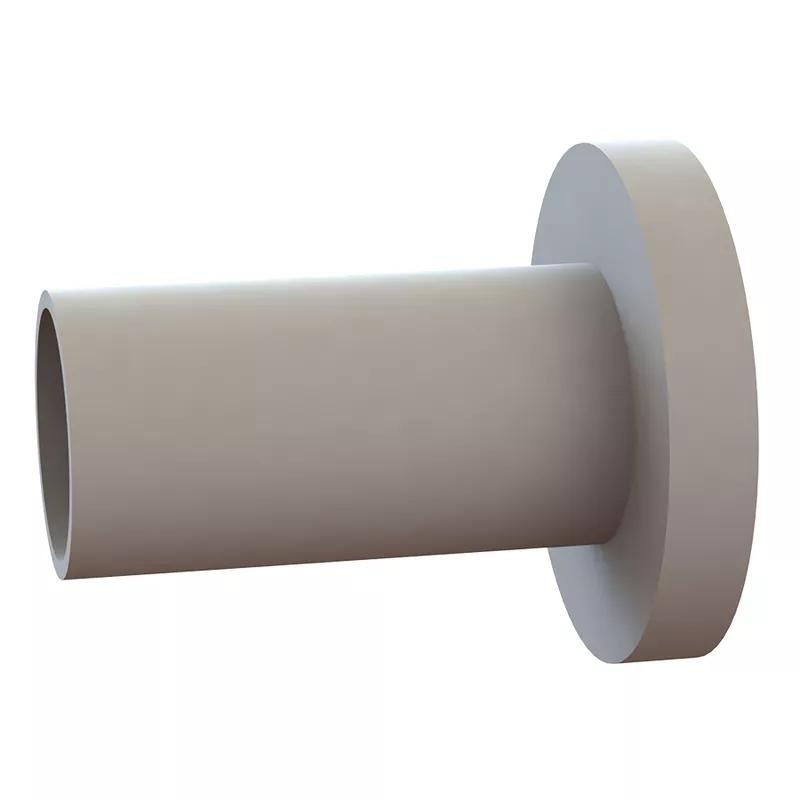

Cylindrical with Flange Shoulder Washer made from Nylon. It is designed to create interference on both the outside diameter of a hexagonal nut and the inside diameter of a bolt. It reduces friction and wear, preventing damage. It is a widely used product in a wide range of applications and industries. Material UL flame rated. Replaces Item No.(s): WS0780A
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.0274 |
| 5000 - 9999 | $0.0247 |
| 10000 - 24999 | $0.0222 |
| 25000 + | $0.02 |
Useful Information
Documents
Specifications
Imperial
Metric

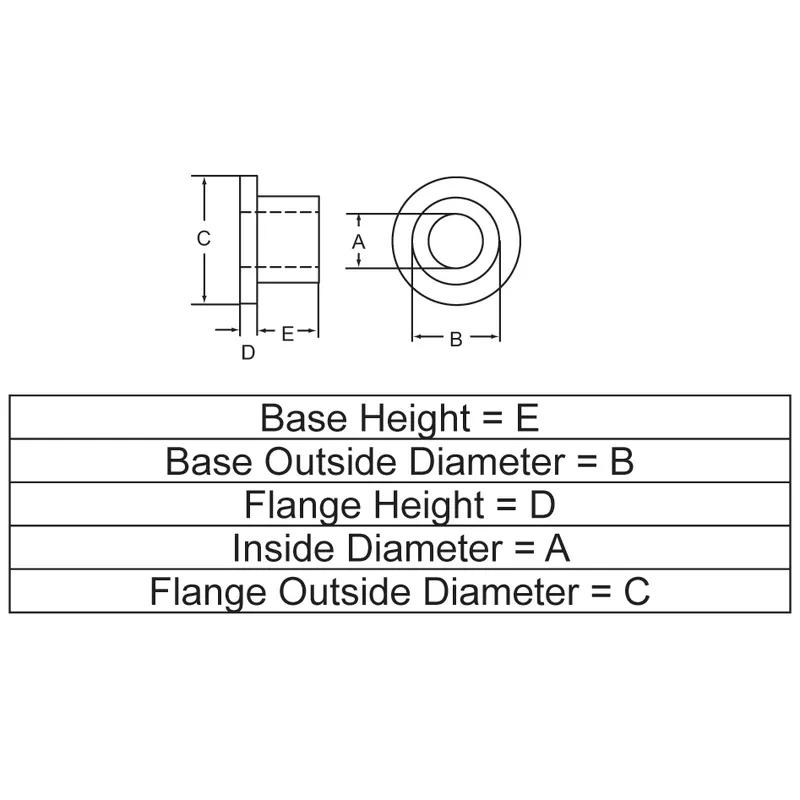

| Base Height | 0.387 in |
|---|---|
| Base Outside Diameter | 0.201 in |
| Flange Height | 0.062 in |
| Flange Outside Diameter | 0.372 in |
| Inside Diameter | 0.176 in |
| Operating Temperature Range | -40 - 185 °F |
| Full Material | Nylon 6/6 |
| Color | Natural |
| Compatible Screw Sizes (All) | 8. M4 |
| Washer Type | Standard Washer |
| Material Flammability Standard | UL94 V-2 |
