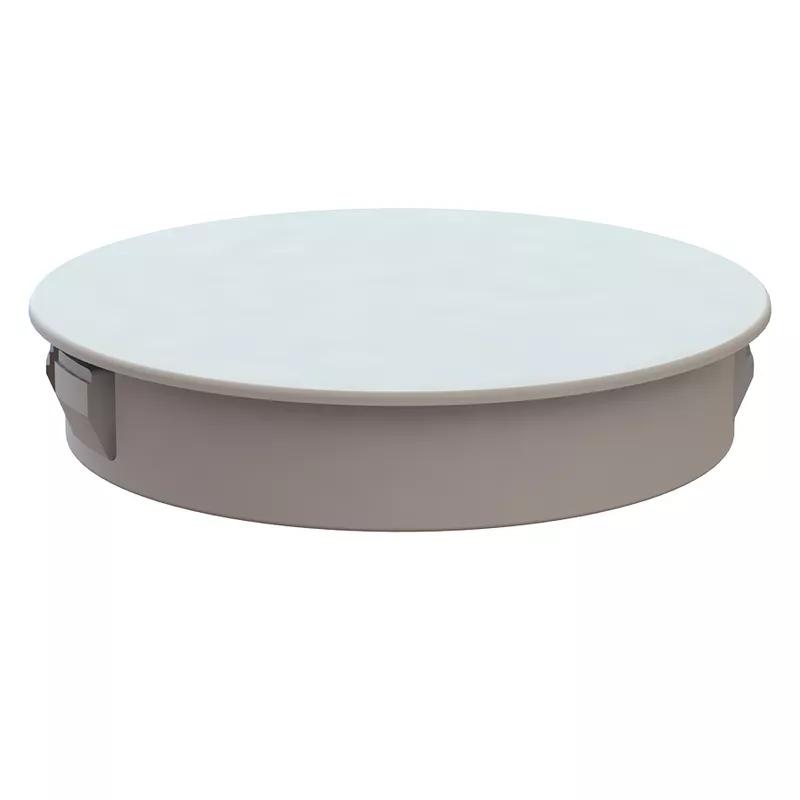

Solid Locking Plug - Compatible Hole Diameter - 85.7 mm | 3.375 in ; Compatible Panel Thickness Range - 6.4 mm | 0.250 in
This Solid Locking Plug is used to close off extra chassis holes, wire outlets, and access holes. It is dust, dirt, moisture resistant, corrosion, and vibration resistant. Designed to fit snugly with a finger and may be withdrawn and replaced as needed. White, made from Nylon and UL94 V-2 rated.
Loading...
| Quantity | Unit price |
|---|---|
| 100 - 999 | $3.2395 |
| 1000 - 4999 | $1.4446 |
| 5000 - 9999 | $1.4342 |
| 10000 - 24999 | $1.4227 |
| 25000 + | $1.3414 |
Useful Information
Documents
Specifications
Imperial
Metric
| Full Material | Heat-Stabilized Nylon 6/6 |
|---|---|
| Color | White |
| Material Flammability Standard | UL94 V-2 |
| Fitting Style | Push-Fit |
| Hole Type | Round Hole |
| Head Style | Dome |
| Overall Diameter | 3.656 in |
| Overall Height | 0.725 in |
| Compatible Hole Diameter | 3.375 in |
| Compatible Panel Thickness Range | 0.250 in |
