Spring Clip - Natural ; UL94 V-2 ; Nylon ; 4.7 mm | 0.187 in ; Style 1

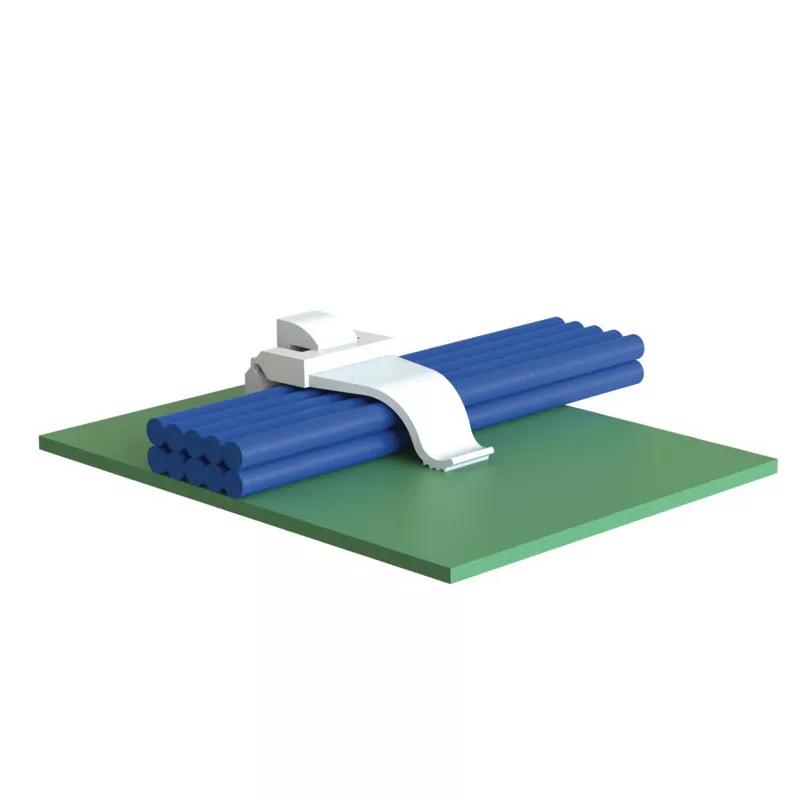

This cable clamp is made of natural nylon and is mounted with an arrowhead into a hole of 4.7 mm. the designed is hinges to allow the cables to be easy positioned into a panel thickness of 1.2 to 2.0 mm.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1693 |
| 10000 - 24999 | $0.1625 |
| 25000 + | $0.1564 |
Useful Information
Specifications
Imperial
Metric
| Base Length | 1.126 in |
|---|---|
| Compatible Hole Diameter | 0.185 in |
| Maximum Panel Thickness | 0.079 in |
| Minimum Panel Thickness | 0.047 in |
| Panel Thickness Range | 0.047 - 0.079 in |
| Color | Natural |
| Fitting Style | Arrowhead Mount |
| Full Material | Nylon 6/6 |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
| Style | 1 |
