Cable Clamps - Screw Mount, Wire Harness

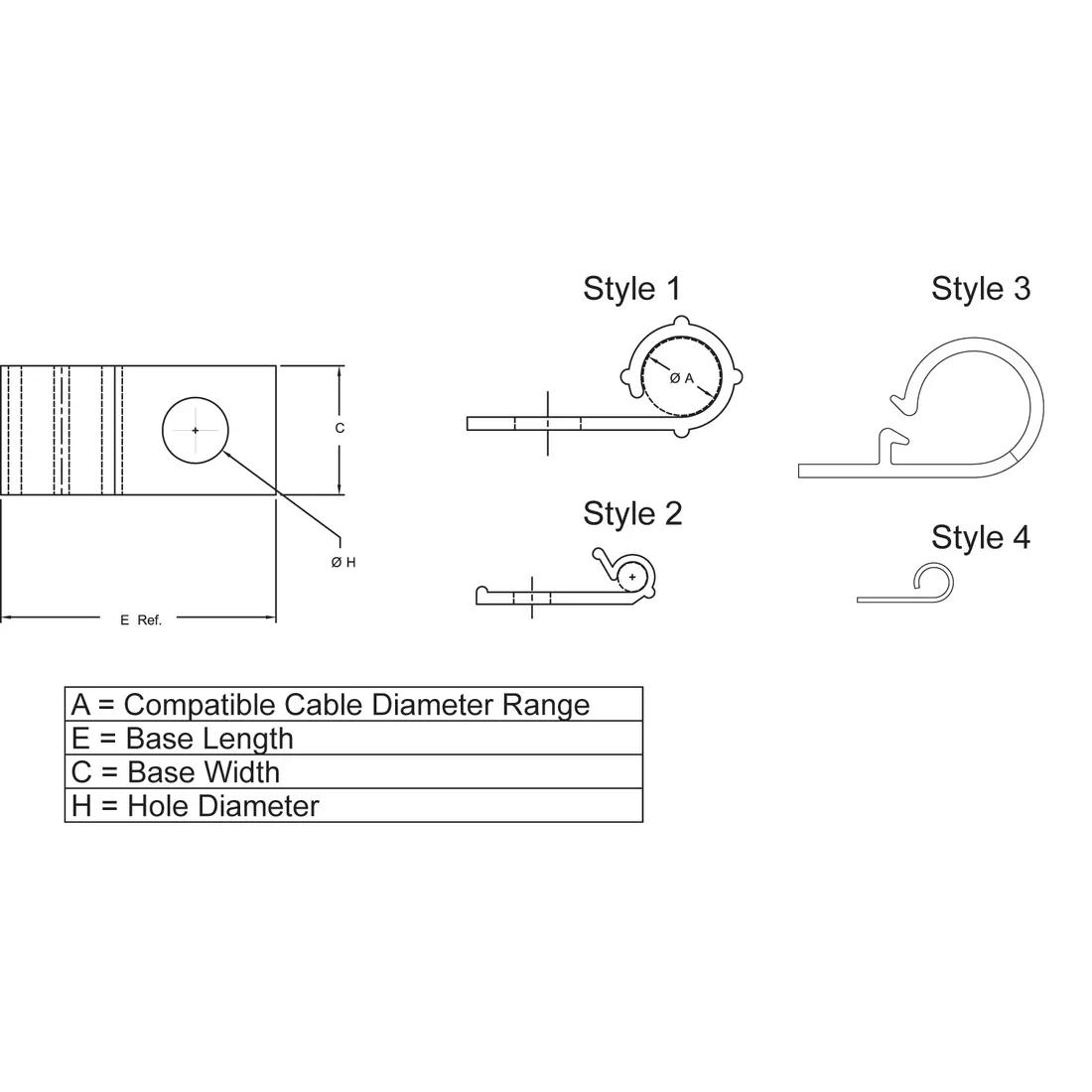

Cable Clamps - Screw Mount Wire Harness - Line Drawing

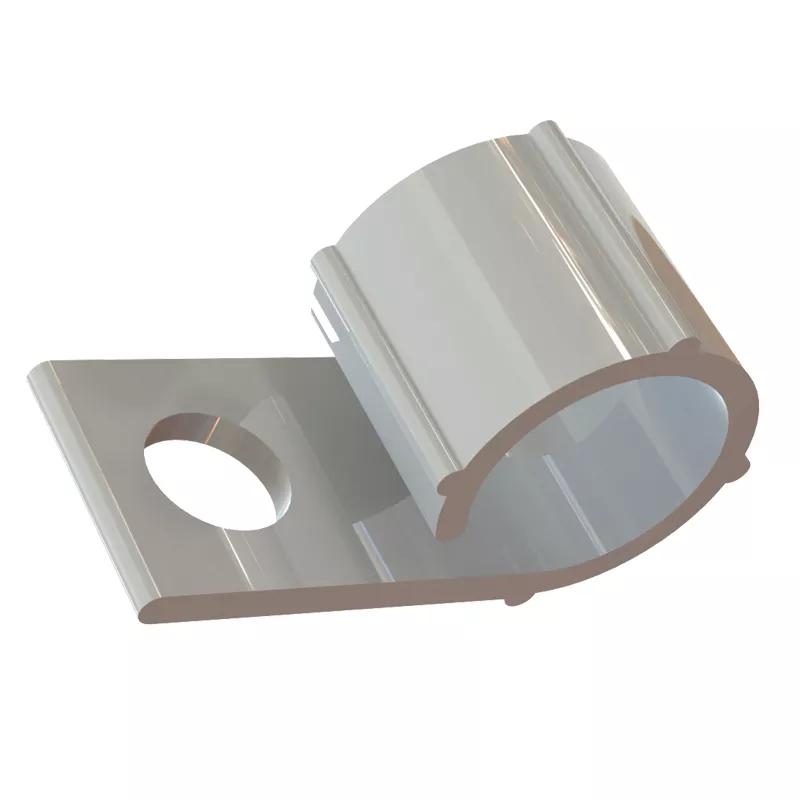

Wire Harness Clamp

In stock

Harness Clamps, also know as Wire Harness Clamps or Wire Harness Clips, gather and secure cables on printed circuit boards and other electronic applications. Cables are quickly and easily inserted into the clamp and then locked in place.

The wiring harness clamp can be installed in advance to the chassis, with cables added at a later time. Once installed, cables can be removed from the wire harness clamp for wiring changes, re-routing and replacements.

The Plastic Wire Harness Clip range has different style options to choose from, include options with a ridged design or smooth options. The range also features options without a latch feature.

  • Material: Nylon 6/6
  • Colours: Black and Natural
  • UL94 V2 flame rated.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
19 results

Sort by

None
Product SKUs information
Item Code Price range Availability Hole Diameter Compatible Cable Diameter View
WHC-250-01BK $0.1936 - $0.2723 18000 In stock
0.204 in
0.250 in
WHC-750-01BK $0.2656 - $0.3189 337000 In stock
0.204 in
0.750 in
$0.2637 - $0.5857 74000 In stock
0.204 in
1.000 in
WHC-375-01BK $0.2268 - $0.339 31000 In stock
0.204 in
0.375 in
WHC-1500-01BK $0.3309 - $0.397 Request the lead time here
0.204 in
1.500 in
$0.253 - $0.3037 Request the lead time here
0.204 in
0.625 in
WHC-125-01 $0.1811 - $0.2757 42000 In stock
0.157 in
0.126 in
EXWHC2-250-01 $0.1178 - $0.1415 27000 In stock
0.157 in
0.252 in
EXWHC2-500-01 $0.1624 - $0.2445 Request the lead time here
0.157 in
0.5 in
WHC-375-01 $0.2061 - $0.3197 25000 In stock
0.205 in
0.374 in
WHC-250-01 $0.1936 - $0.2724 124000 In stock
0.205 in
0.252 in
WHC-500-01 $0.2186 - $0.3345 245000 In stock
0.205 in
0.5 in
WHC-750-01 $0.2416 - $0.3754 15000 In stock
0.205 in
0.752 in
WHC-1500-01 $0.7672 - $0.9164 115000 In stock
0.205 in
1.5 in
WHC-1000-01 $0.2637 - $0.5899 365000 In stock
0.205 in
1 in
$0.2301 - $0.3437 24000 In stock
0.205 in
0.626 in
EXWHC2-750-01 $0.2798 - $0.3357 Request the lead time here
0.157 in
0.709 in
WHC-125-01BK $0.2028 - $0.2434 13000 In stock
0.156 in
0.125 in
WHC-500-01BK $0.2019 - $0.2173 60000 In stock
0.204 in
0.500 in
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-250-01BK

Price Range
$0.2723 - $0.1936

Stock Levels
18000 In stock
Attributes
  • Base Length
    0.830 in
  • Base Width
    0.394 in
  • Compatible Cable Diameter Range
    0.250 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.250 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-750-01BK

Price Range
$0.3189 - $0.2656

Stock Levels
337000 In stock
Attributes
  • Base Length
    1.281 in
  • Base Width
    0.500 in
  • Compatible Cable Diameter Range
    0.750 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.190 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-1000-01BK

Price Range
$0.5857 - $0.2637

Stock Levels
74000 In stock
Attributes
  • Base Length
    1.531 in
  • Base Width
    0.500 in
  • Compatible Cable Diameter Range
    1.000 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.190 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-375-01BK

Price Range
$0.339 - $0.2268

Stock Levels
31000 In stock
Attributes
  • Base Length
    0.830 in
  • Base Width
    0.394 in
  • Compatible Cable Diameter Range
    0.375 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.190 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-1500-01BK

Price Range
$0.397 - $0.3309

Stock Levels
Request the lead time here
Attributes
  • Base Length
    2.125 in
  • Base Width
    0.500 in
  • Compatible Cable Diameter Range
    1.500 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.190 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-625-01BK

Price Range
$0.3037 - $0.253

Stock Levels
Request the lead time here
Attributes
  • Base Length
    1.125 in
  • Base Width
    0.500 in
  • Compatible Cable Diameter Range
    0.625 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.190 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 3.2 mm | 0.126 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-125-01

Price Range
$0.2757 - $0.1811

Stock Levels
42000 In stock
Attributes
  • Base Length
    0.752 in
  • Base Width
    0.331 in
  • Compatible Cable Diameter Range
    0.126 in
  • Hole Diameter
    0.157 in
  • Maximum Compatible Cable Diameter
    0.126 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 6.4 mm | 0.252 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

EXWHC2-250-01

Price Range
$0.1415 - $0.1178

Stock Levels
27000 In stock
Attributes
  • Base Length
    0.827 in
  • Base Width
    0.394 in
  • Compatible Cable Diameter Range
    0.252 in
  • Hole Diameter
    0.157 in
  • Maximum Compatible Cable Diameter
    0.252 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 12.7 mm | 0.5 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

EXWHC2-500-01

Price Range
$0.2445 - $0.1624

Stock Levels
Request the lead time here
Attributes
  • Base Length
    1.181 in
  • Base Width
    0.394 in
  • Compatible Cable Diameter Range
    0.5 in
  • Hole Diameter
    0.157 in
  • Maximum Compatible Cable Diameter
    0.5 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 9.5 mm | 0.374 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-375-01

Price Range
$0.3197 - $0.2061

Stock Levels
25000 In stock
Attributes
  • Base Length
    0.831 in
  • Base Width
    0.402 in
  • Compatible Cable Diameter Range
    0.374 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    0.374 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 6.4 mm | 0.252 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-250-01

Price Range
$0.2724 - $0.1936

Stock Levels
124000 In stock
Attributes
  • Base Length
    0.831 in
  • Base Width
    0.402 in
  • Compatible Cable Diameter Range
    0.252 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    0.252 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 12.7 mm | 0.5 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-500-01

Price Range
$0.3345 - $0.2186

Stock Levels
245000 In stock
Attributes
  • Base Length
    1.157 in
  • Base Width
    0.402 in
  • Compatible Cable Diameter Range
    0.5 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    0.5 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 19.1 mm | 0.752 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-750-01

Price Range
$0.3754 - $0.2416

Stock Levels
15000 In stock
Attributes
  • Base Length
    1.28 in
  • Base Width
    0.5 in
  • Compatible Cable Diameter Range
    0.752 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    0.752 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 38.1 mm | 1.5 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-1500-01

Price Range
$0.9164 - $0.7672

Stock Levels
115000 In stock
Attributes
  • Base Length
    2.122 in
  • Base Width
    0.5 in
  • Compatible Cable Diameter Range
    1.5 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    1.5 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 25.4 mm | 1 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-1000-01

Price Range
$0.5899 - $0.2637

Stock Levels
365000 In stock
Attributes
  • Base Length
    1.531 in
  • Base Width
    0.5 in
  • Compatible Cable Diameter Range
    1 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    1 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 15.9 mm | 0.626 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-625-01

Price Range
$0.3437 - $0.2301

Stock Levels
24000 In stock
Attributes
  • Base Length
    1.126 in
  • Base Width
    0.5 in
  • Compatible Cable Diameter Range
    0.626 in
  • Hole Diameter
    0.205 in
  • Maximum Compatible Cable Diameter
    0.626 in
Quick View
View Product >
P-Style Cable Clamp - Natural ; Compatible Cable Diameter - 18.0 mm | 0.709 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

EXWHC2-750-01

Price Range
$0.3357 - $0.2798

Stock Levels
Request the lead time here
Attributes
  • Base Length
    1.378 in
  • Base Width
    0.5 in
  • Compatible Cable Diameter Range
    0.709 in
  • Hole Diameter
    0.157 in
  • Maximum Compatible Cable Diameter
    0.709 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 4 mm | 0.156 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-125-01BK

Price Range
$0.2434 - $0.2028

Stock Levels
13000 In stock
Attributes
  • Base Length
    0.750 in
  • Base Width
    0.330 in
  • Compatible Cable Diameter Range
    0.125 in
  • Hole Diameter
    0.156 in
  • Length to Hole Center
    0.230 in
Quick View
View Product >
Cable Clamp - Screw Mount, Wire Harness - Black ; Hole Diameter - 5.2 mm | 0.204 in ; Material Flammability Standard - UL94 V-2 ; Nylon 6/6

WHC-500-01BK

Price Range
$0.2173 - $0.2019

Stock Levels
60000 In stock
Attributes
  • Base Length
    1.156 in
  • Base Width
    0.394 in
  • Compatible Cable Diameter Range
    0.500 in
  • Hole Diameter
    0.204 in
  • Length to Hole Center
    0.250 in
Quick View
View Product >
