Non-Locking Wire Saddles - Line Drawing

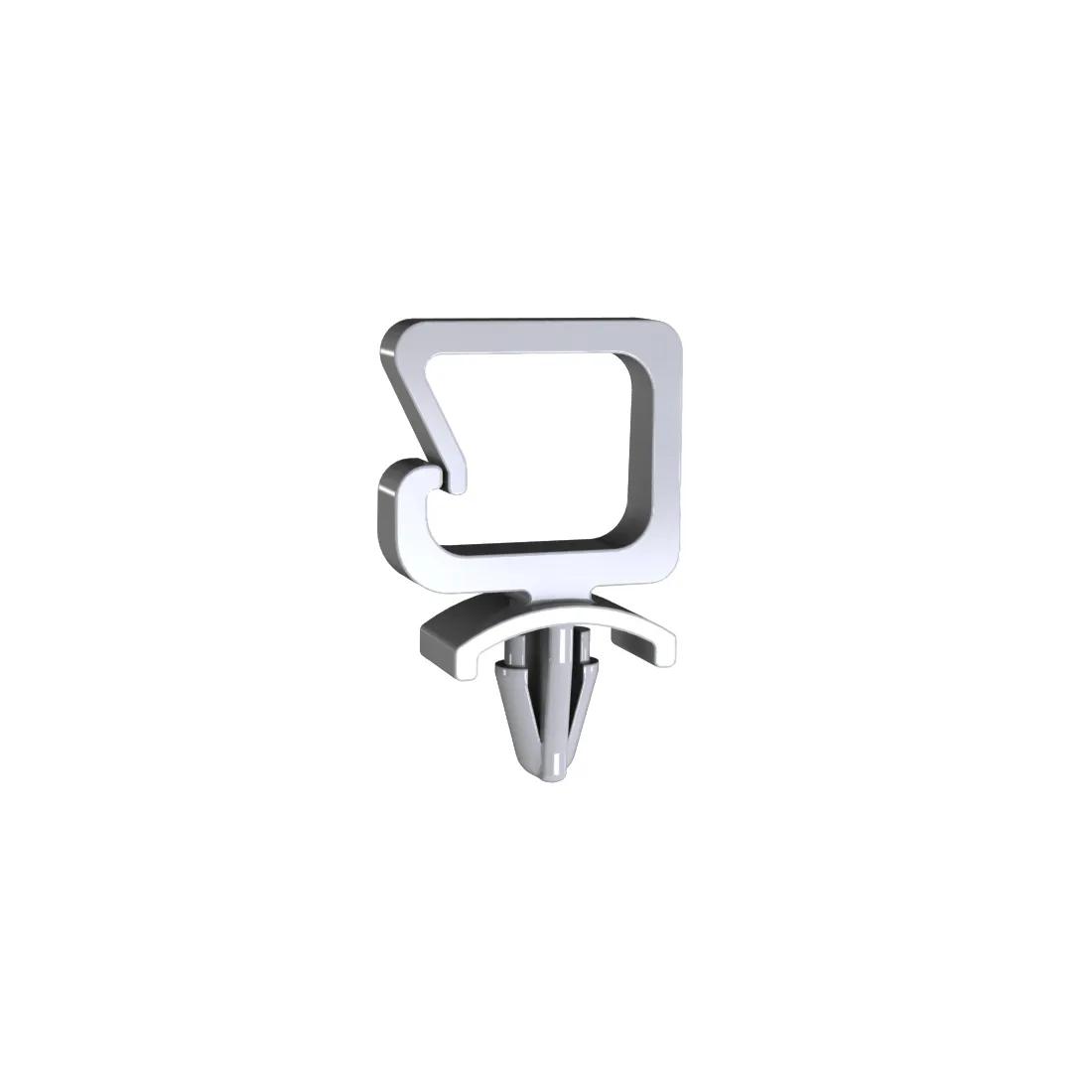

Wire Saddle - Arrowhead, Winged ; Inside Height - 11.9 mm | 0.470 in ; Inside Width - 11.9 mm | 0.470 in ; Compatible Hole Diameter - 4.8 mm | 0.189 in; PA

Non-locking wire saddle gathers and routes wires to keep them clear of other sensitive components and provide a clean build for electrical and electronic applications.
Item code:

WS-SE-A-3-01
Request the lead time here For more information Delivery & returns
Loading...
SKU price information
Quantity Unit price
1000 - 9999 $0.1046
10000 - 24999 $0.0951
25000 + $0.0873
Standard pack: 1000

Order in multiple of 1000

Total price:

$104.60

1000 x $0.1046

Add to cart
Add sample +
Download CAD
Print page

Useful Information

Documents

Specifications

Imperial
Metric
SKU attributes
Compatible Hole Diameter 0.189 in
Mounting Hole Diameter 0.189 in
Inside Height 0.472 in
Inside Width 0.472 in
Maximum Compatible Panel Thickness 0.071 in
Maximum Panel Thickness 0.071 in
Minimum Compatible Panel Thickness 0.024 in
Minimum Panel Thickness 0.024 in
Overall Width 0.724 in
Panel Thickness Range 0.024 - 0.071 in
Color Natural
Fitting Style Arrowhead, Winged
Full Material Polyamide 6/6
Material PA
Material Flammability Standard UL94 V-2
Saddle Type Side Entry
