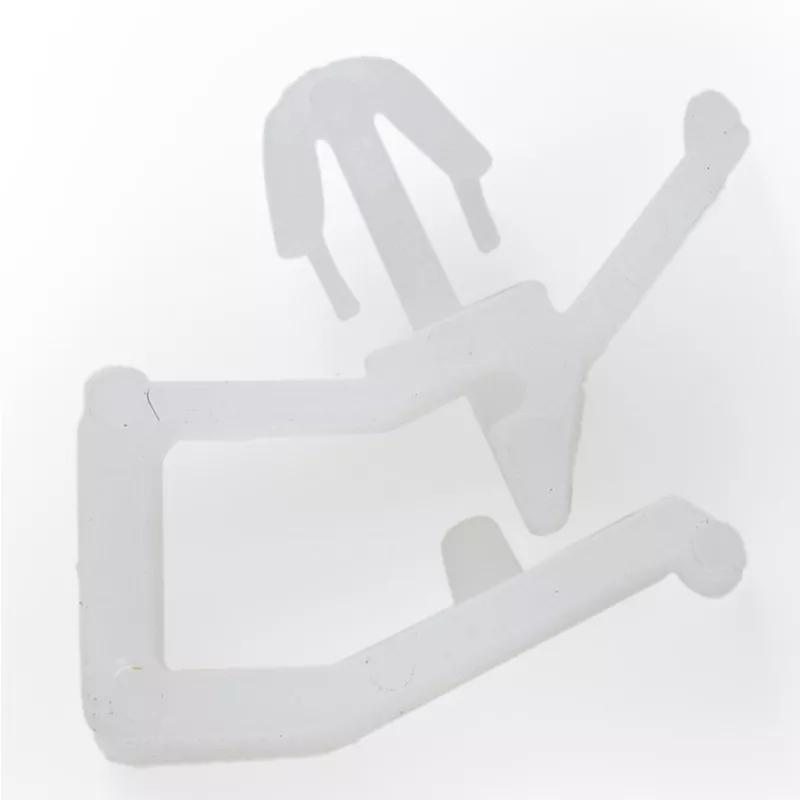

Wire Saddle - Arrowhead, Winged ; Inside Height - 2.3 mm | 0.090 in ; Inside Width - 5.6 mm | 0.220 in ; Compatible Hole Diameter - 3.5 mm | 0.138 in; PA
Non-locking wire saddle gathers and routes wires to keep them clear of other sensitive components and provide a clean build for electrical and electronic applications.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.212 |
| 10000 - 24999 | $0.1927 |
| 25000 + | $0.1768 |
Useful Information
Specifications
Imperial
Metric
| Compatible Hole Diameter | 0.138 in |
|---|---|
| Mounting Hole Diameter | 0.138 in |
| Inside Height | 0.094 in |
| Inside Width | 0.22 in |
| Maximum Compatible Panel Thickness | 0.063 in |
| Maximum Panel Thickness | 0.063 in |
| Minimum Compatible Panel Thickness | 0.02 in |
| Minimum Panel Thickness | 0.02 in |
| Overall Width | 0.5 in |
| Panel Thickness Range | 0.02 - 0.063 in |
| Color | Natural |
| Fitting Style | Arrowhead, Winged |
| Full Material | Polyamide 6/6 |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Saddle Type | Side Entry |
