Rotary Dampers - With Gear

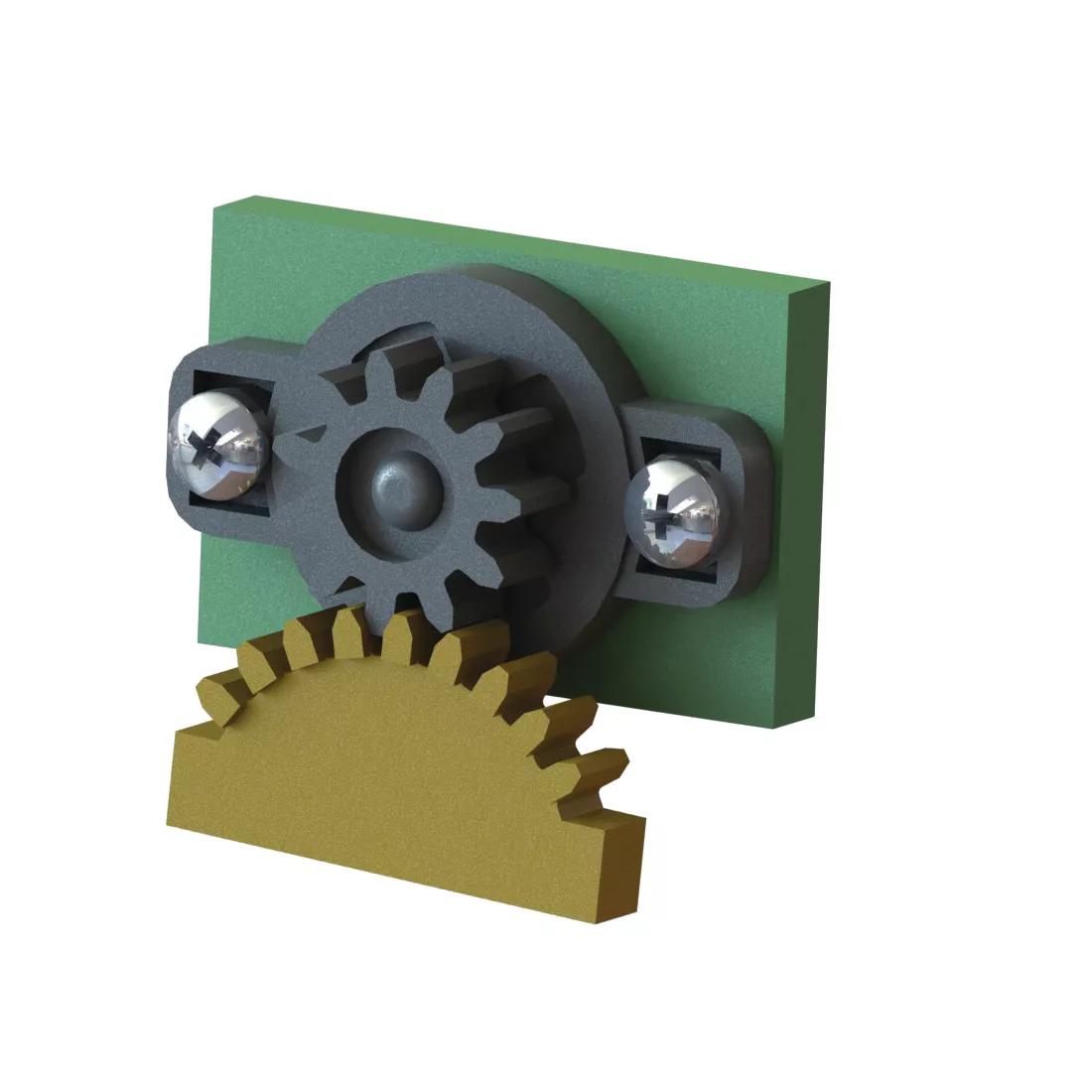

Rotary Dampers - With Gear - High Torque - Primary Photo

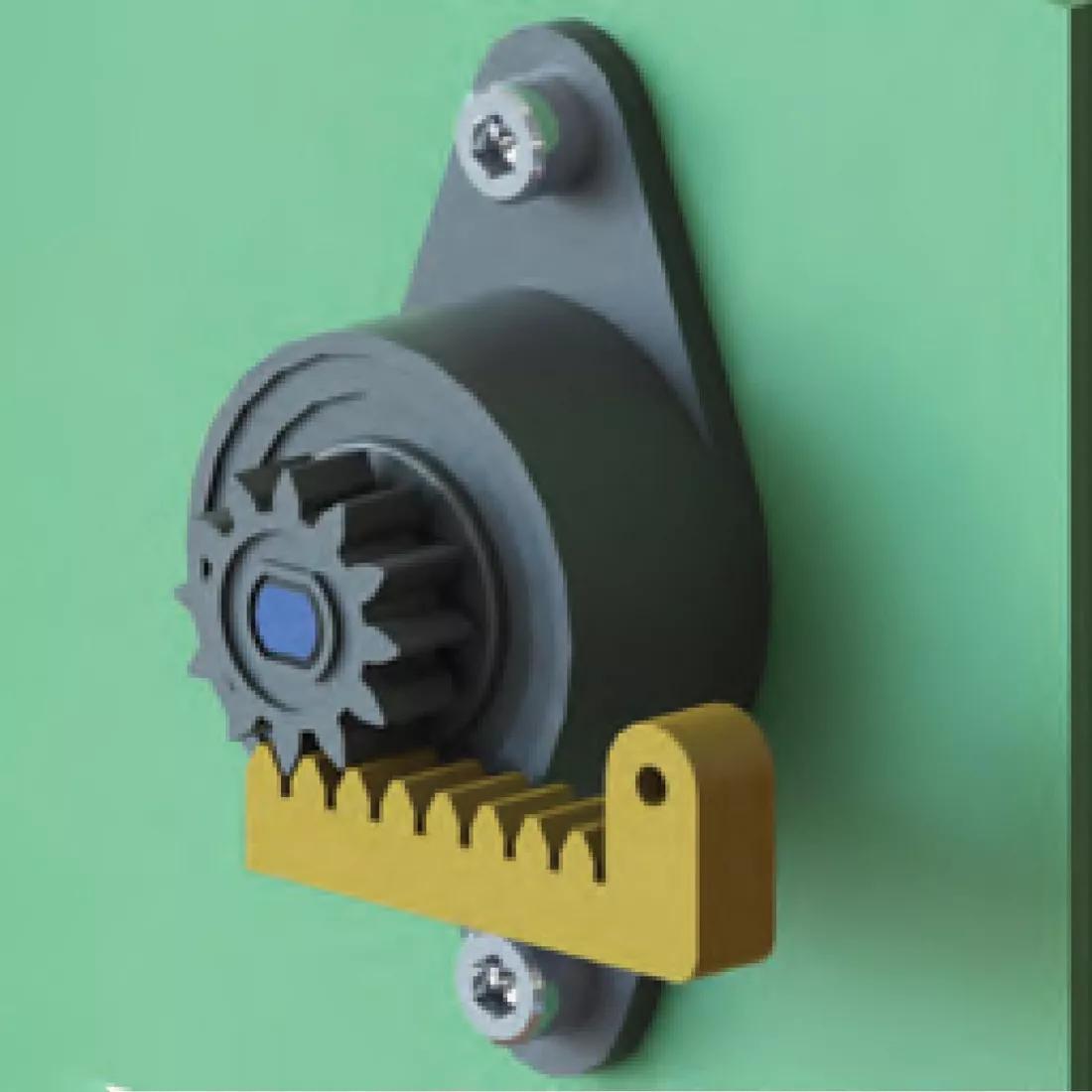

Rotary Dampers - With Gear - Additional Image
Rotary Dampers - With Gear - Additional Image

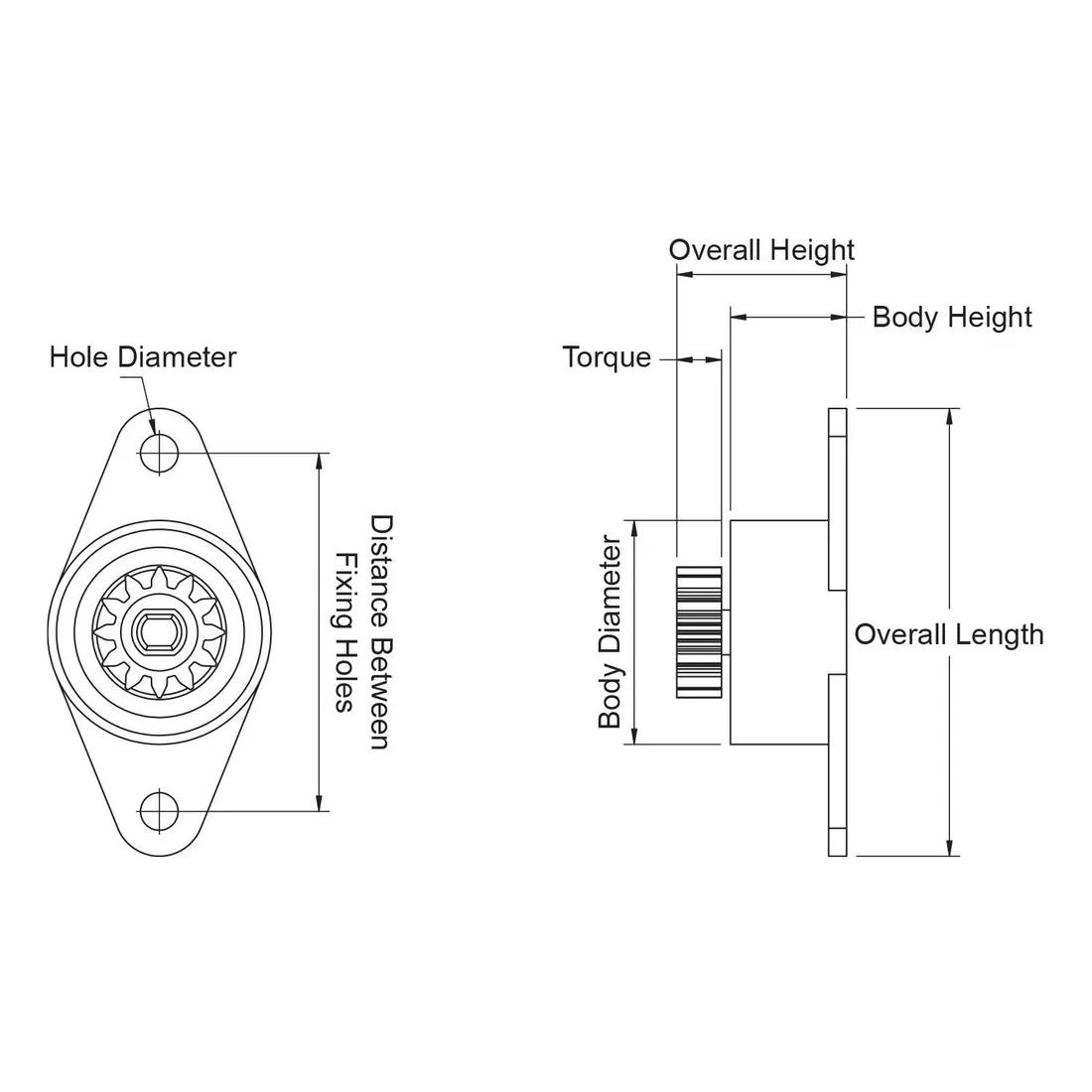

Rotary Dampers - With Gear - Line Drawing

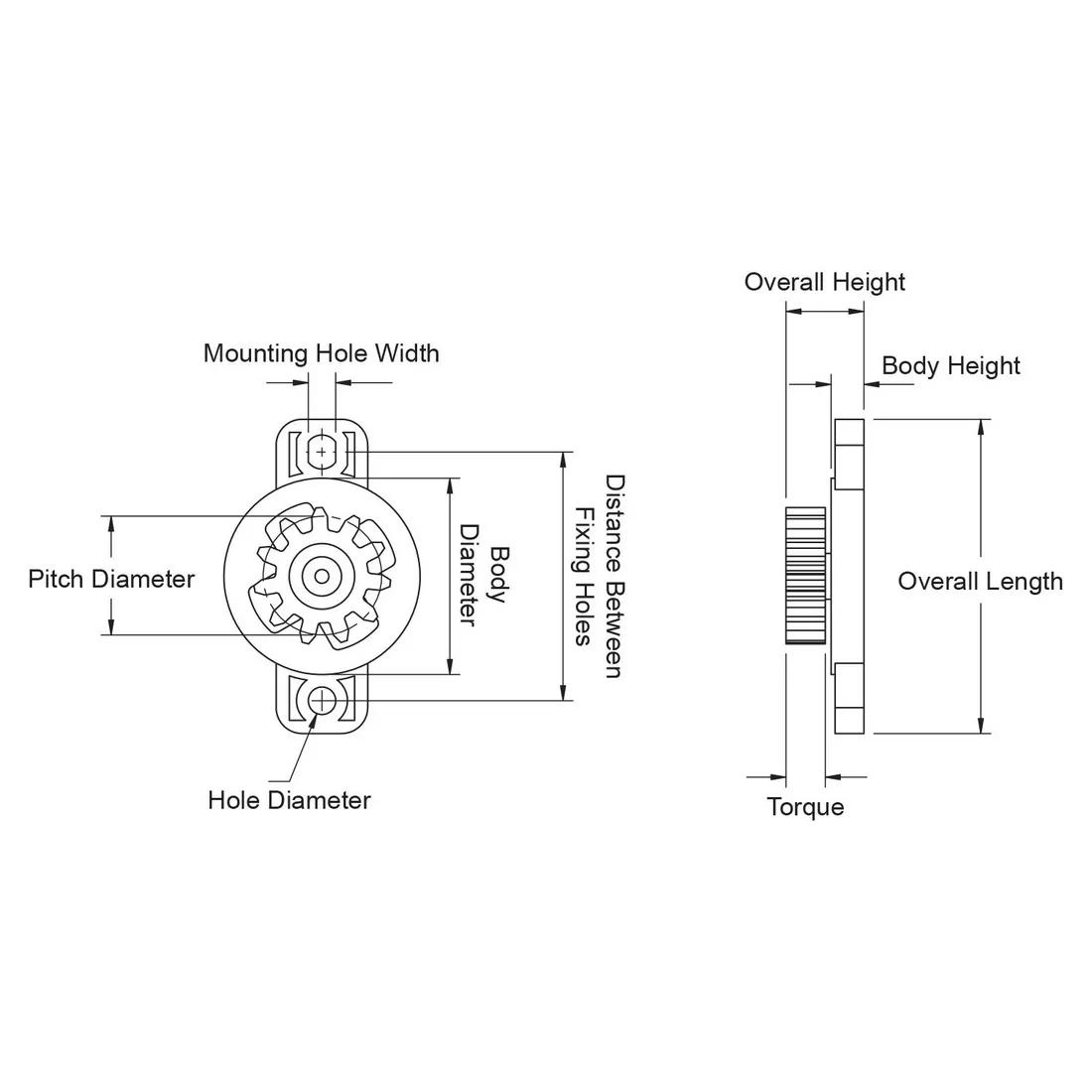

Rotary Dampers - With Gear - Line Drawing

Rotary Dampers With Gear

In stock

Simple to install, the job of these rotary dampers is to control the speed and acceleration of a movement in a traveling body using the standard spur gear. Our range is manufactured from polycarbonate acetal and is stocked in various styles depending on you project requirements.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
16 results

Sort by

None
Product SKUs information
Item Code Price range Availability Style Torque View
300 In stock
Two-Way
2000 In stock
Two-Way
RFRT-G2-450-G3 100 In stock
Two-Way
500 In stock
Two-Way
Request the lead time here
Two-Way
RFRT-G2-300-G1 Request the lead time here
Two-Way
700 In stock
100.0 N
300 In stock
Two-Way
RFRT-G2-200-G2 Request the lead time here
RFRT-G2-600-G1 900 In stock
500 In stock
1000 In stock
RFRT-G2-200-G1 400 In stock
RFRT-D2-152-G2 Request the lead time here
RFRT-G2-200-G3 1000 In stock
100 In stock
Rotary Damper - With Gear - Black; PC;Acetal; Torque 60; Pitch Diameter 9.9 mm | 0.390 in; Number of Teeth 10

RFRT-G2-600-G2


Stock Levels
300 In stock
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 100; Pitch Diameter 8.9 mm | 0.350 in; Number of Teeth 11

RFRT-G2-101-G3


Stock Levels
2000 In stock
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 45; Pitch Diameter 8.9 mm | 0.350 in; Number of Teeth 11

RFRT-G2-450-G3


Stock Levels
100 In stock
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 45; Pitch Diameter 7.1 mm | 0.280 in; Number of Teeth 14

RFRT-G2-450-G1


Stock Levels
500 In stock
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 60; Pitch Diameter 8.9 mm | 0.350 in; Number of Teeth 11

RFRT-G2-600-G3


Stock Levels
Request the lead time here
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 30; Pitch Diameter 7.1 mm | 0.280 in; Number of Teeth 14

RFRT-G2-300-G1


Stock Levels
Request the lead time here
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 100.0 N; Pitch Diameter 7.1 mm | 0.28 in; Number of Teeth 11

RFRT-G2-101-G1


Stock Levels
700 In stock
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 45; Pitch Diameter 9.9 mm | 0.390 in; Number of Teeth 10

RFRT-G2-450-G2


Stock Levels
300 In stock
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Operating Temperature Range
    -40 - 257 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 20.0 N; Pitch Diameter 9.9 mm | 0.39 in; Number of Teeth 11

RFRT-G2-200-G2


Stock Levels
Request the lead time here
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 60.0 N; Pitch Diameter 7.1 mm | 0.28 in; Number of Teeth 11

RFRT-G2-600-G1


Stock Levels
900 In stock
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 30.0 N; Pitch Diameter 9.9 mm | 0.39 in; Number of Teeth 11

RFRT-G2-300-G2


Stock Levels
500 In stock
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 100.0 N; Pitch Diameter 9.9 mm | 0.39 in; Number of Teeth 11

RFRT-G2-101-G2


Stock Levels
1000 In stock
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 20.0 N; Pitch Diameter 7.1 mm | 0.28 in; Number of Teeth 11

RFRT-G2-200-G1


Stock Levels
400 In stock
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 1500.0 N; Pitch Diameter 40 mm | 1.575 in; Number of Teeth 12

RFRT-D2-152-G2


Stock Levels
Request the lead time here
Attributes
  • Maximum Operating Temperature
    257 °F
  • Minimum Operating Temperature
    -40 °F
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 20.0 N; Pitch Diameter 8.9 mm | 0.35 in; Number of Teeth 11

RFRT-G2-200-G3


Stock Levels
1000 In stock
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
Rotary Damper - With Gear - Black; PC;Acetal; Torque 30.0 N; Pitch Diameter 8.9 mm | 0.35 in; Number of Teeth 11

RFRT-G2-300-G3


Stock Levels
100 In stock
Attributes
  • Color
    Black
  • Full Material
    Polycarbonate;Acetal
  • Gear Type
    Standard Spur Gear
  • Material
    PC;Acetal
  • Material Flammability Standard
    UL94 HB
Quick View
View Product >
