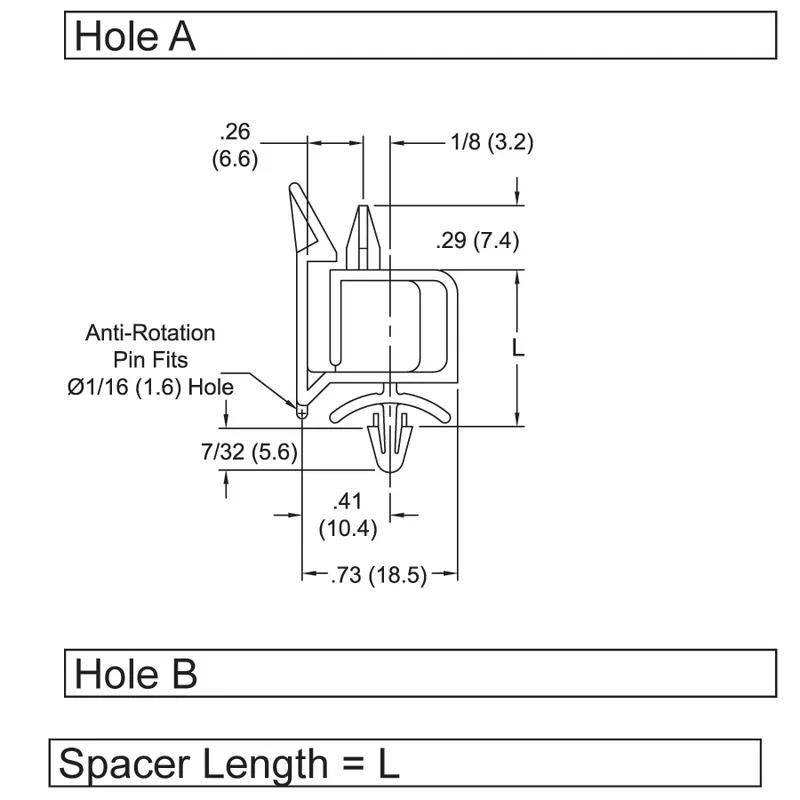

Edge Locking Support - Spacer Length 11.9 mm | 0.470 in
Edge Locking Support - Snap In, Anti-Rotation, Locating Nose - Flexible are used to hold the edges of circuit boards to keep them well positioned.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.6218 |
| 10000 - 24999 | $0.5651 |
| 25000 + | $0.518 |
Useful Information
Specifications
Imperial
Metric
| Hole Diameter A | 0.157 in |
|---|---|
| Locking Head Height A | 0.290 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.661 in |
| Maximum Panel Thickness B | 0.661 in |
| Minimum Operating Temperature | -40 °F |
| Panel Thickness A Range | 0.661 in |
| Panel Thickness B Range | 0.661 in |
| Spacer Length | 0.469 in |
| Colour | Natural |
| Hole A Fix Type | Unlocking Fix |
| Hole B Fix Type | Clip Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
