PCB Support - Flat Rest Fix ; Locking Arrowhead Fix ; Spacer Length 3.5 mm | 0.138 in ; Style 2 ; -40 - 85 °C | -40 - 185 °F

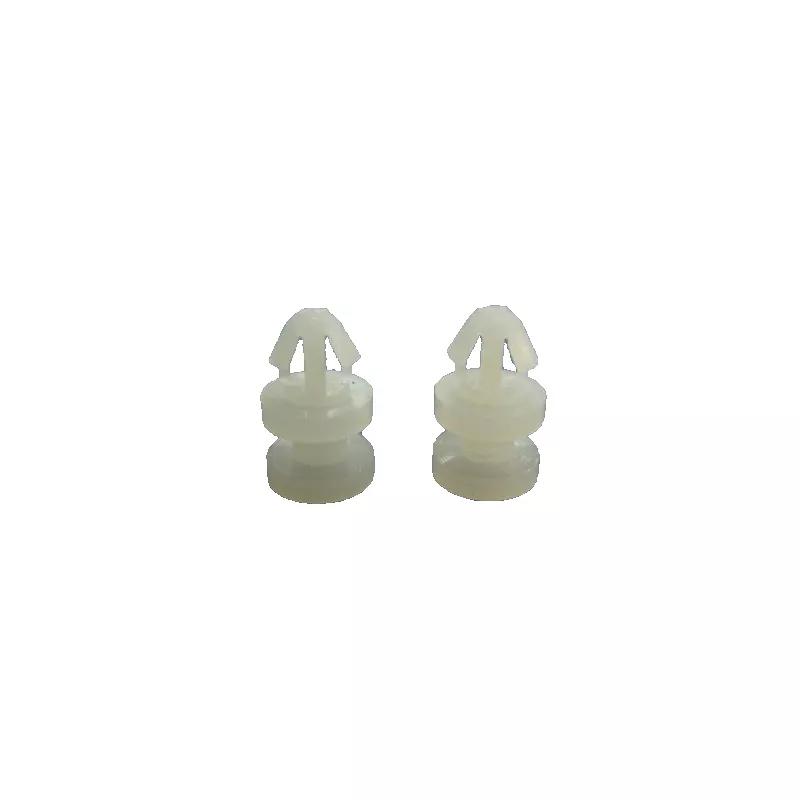

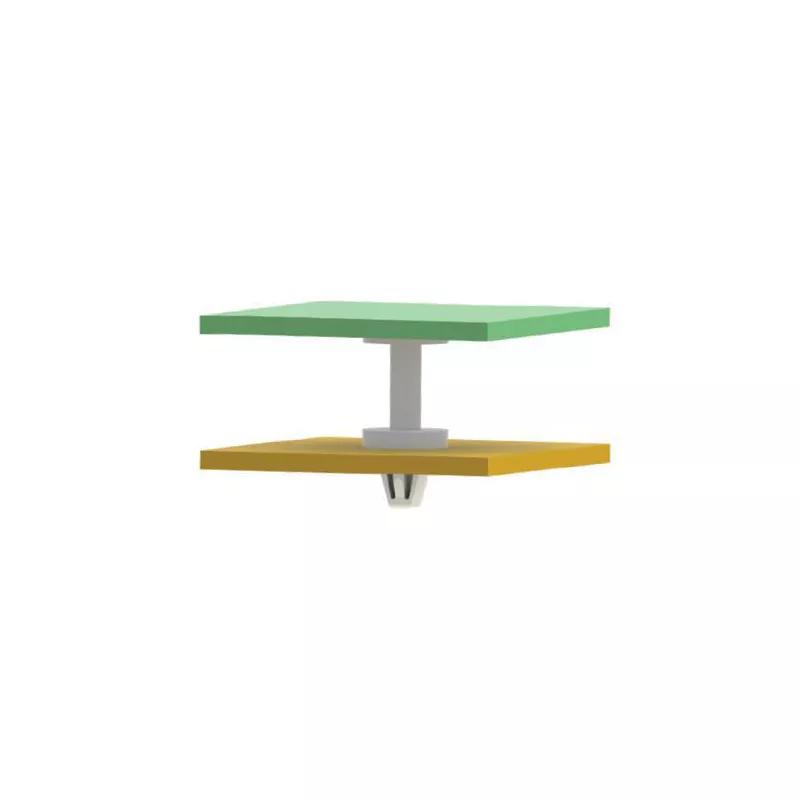

CBPSW010A has a Flat Rest on one side and a Locking Arrowhead on the opposite side. It is made from Natural Nylon 6/6 and is compatible with circuit boards up to thick. The spacer length is 3.5 mm | 0.138 in
Loading...
| Quantity | Unit price |
|---|---|
| 2000 - 9999 | $0.3977 |
| 10000 - 24999 | $0.3617 |
| 25000 + | $0.3315 |
Useful Information
Documents
Specifications
Imperial
Metric
| Flange Diameter | 0.236 in |
|---|---|
| Hole Diameter B | 0.138 in |
| Locking Head Height B | 0.11 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness B | 0.067 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness B | 0.047 in |
| Panel Thickness B Range | 0.047 - 0.067 in |
| Spacer Length | 0.138 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Flat Rest Fix |
| Hole B Fix Type | Locking Arrowhead Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Style | 2 |
