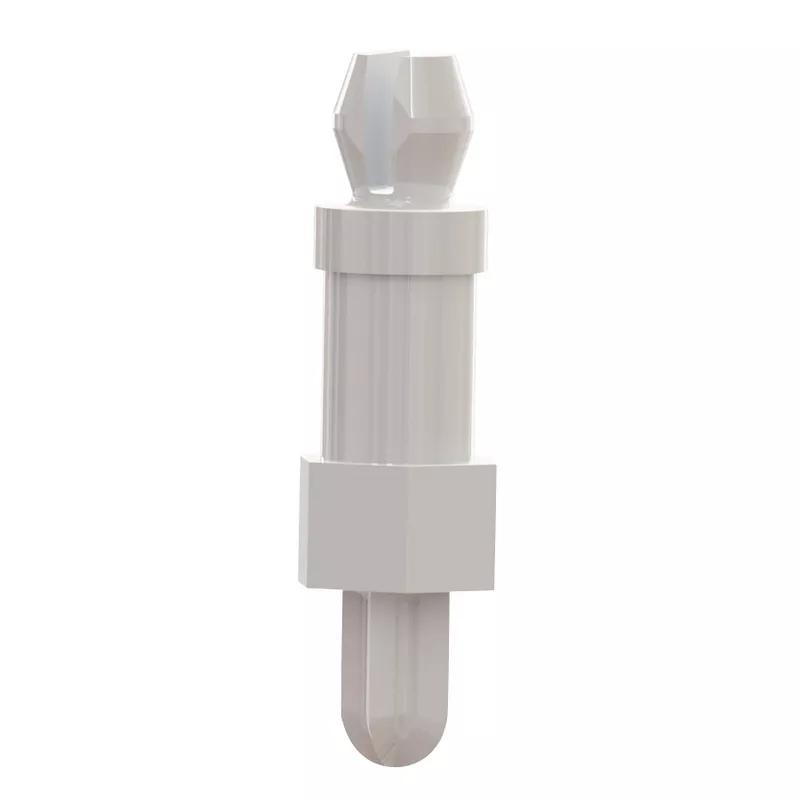

Screw & Lock Support - Non-Locking, Two Prong, Self-Threading Male

PCB Support Pillars - Non Locking/Two Prong/Self Threading Male

In stock

These spacers have a unique self-threading bottom fixing. The threaded hole that they go into acts as a die and threads the bottom end when screwed in. They can be used in either a #4 or M3 threaded hole. They are easily installed by hand with minimal force. The top fix is removable and has a low profile.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
9 results

Sort by

None
Product SKUs information
Item Code Price range Availability Hole Diameter A Panel Thickness A Range Thread Length Compatible Thread Sizes (All) Spacer Length View
$0.2972 - $0.3375 Request the lead time here
0.125 in
0.180 in
#4,M3
0.625 in
$0.2865 - $0.3251 Request the lead time here
0.126 in
0.181 in
0.126 in
Request the lead time here
0.126 in
0.181 in
0.189 in
$0.2927 - $0.3326 1000 In stock
0.126 in
0.181 in
0.437 in
$0.2918 - $0.3315 13000 In stock
0.126 in
0.181 in
0.374 in
$0.2904 - $0.3297 7000 In stock
0.126 in
0.181 in
0.311 in
$0.2945 - $0.3348 1000 In stock
0.126 in
0.181 in
0.563 in
$0.2939 - $0.3338 11000 In stock
0.126 in
0.181 in
0.5 in
MSPMST-4-01 $0.2891 - $0.3288 3000 In stock
0.126 in
0.181 in
0.252 in
Screw Support - Snap Lock ; 3.2 mm | 0.125 in ; 1.6 mm | 0.062 in ; #4, M3 ; 15.9 mm | 0.625 in

MSPMST-10-01

Price Range
$0.3375 - $0.2972

Stock Levels
Request the lead time here
Attributes
  • Distance Across Flats
    0.187 in
  • Hole Diameter A
    0.125 in
  • Locking Head Height A
    0.150 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.062 in
Quick View
View Product >
Screw Support - 3.2 mm | 0.125 in

MSPMST-2-01

Price Range
$0.3251 - $0.2865

Stock Levels
Request the lead time here
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 4.7 mm | 0.187 in

MSPMST-3-01


Stock Levels
Request the lead time here
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 11.1 mm | 0.438 in

MSPMST-7-01

Price Range
$0.3326 - $0.2927

Stock Levels
1000 In stock
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 9.5 mm | 0.375 in

MSPMST-6-01

Price Range
$0.3315 - $0.2918

Stock Levels
13000 In stock
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 8 mm | 0.313 in

MSPMST-5-01

Price Range
$0.3297 - $0.2904

Stock Levels
7000 In stock
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 14.3 mm | 0.563 in

MSPMST-9-01

Price Range
$0.3348 - $0.2945

Stock Levels
1000 In stock
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 12.7 mm | 0.500 in

MSPMST-8-01

Price Range
$0.3338 - $0.2939

Stock Levels
11000 In stock
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
Screw Support - 6.4 mm | 0.250 in

MSPMST-4-01

Price Range
$0.3288 - $0.2891

Stock Levels
3000 In stock
Attributes
  • Distance Across Flats
    0.185 in
  • Hole Diameter A
    0.126 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
  • Minimum Operating Temperature
    -40 °F
Quick View
View Product >
