Home // PCB Mounting Pillars // PCB Support Pillars - Reverse Dual Locking/Snap Fit/Two Prong

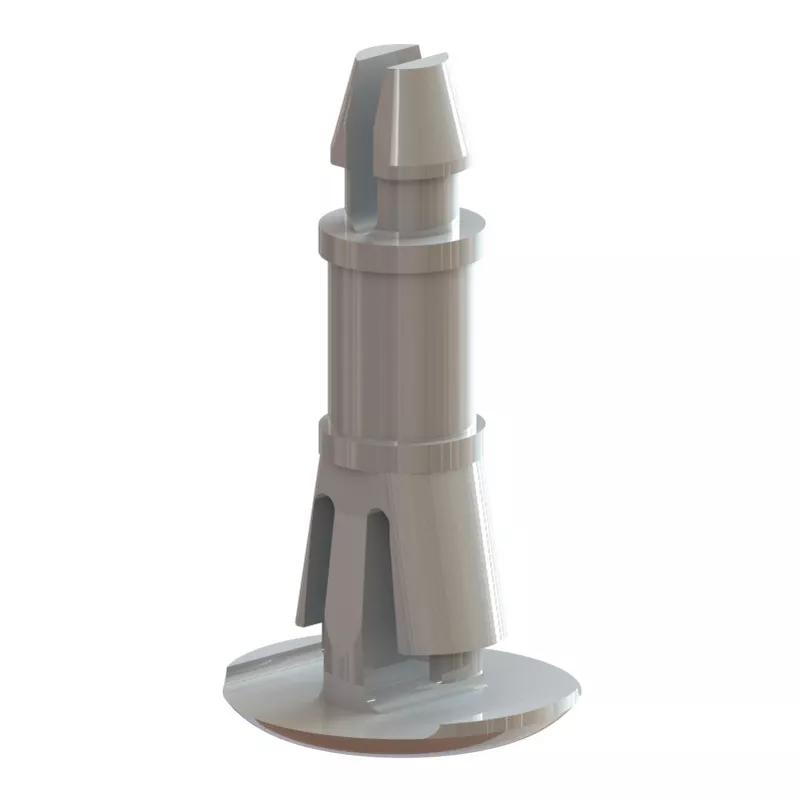

P160211_Reverse_Locking_Support_-_Snap_Locking_Two-Prong_Photo1

PCB Support Pillars - Reverse Dual Locking/Snap Fit/Two Prong

In stock

These reverse mount supports re installed from the underside of the chassis. They have a thin buttonhead for minimal protrusion under the chassis.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond in 24 hours or next business day

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
7 results

Sort by

None
Product SKUs information
Item Code Price range Availability Hole Diameter A Hole Diameter B Panel Thickness A Range Panel Thickness B Range Spacer Length View
$0.3843 - $0.4611 1000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.626 in
$0.3266 - $0.3921 1000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.311 in
$0.3594 - $0.4314 8000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.5 in
$0.3719 - $0.4461 1000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.563 in
$0.3186 - $0.3822 33000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.252 in
$0.3468 - $0.4161 1000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.437 in
$0.3344 - $0.4011 18000 In stock
0.126 in
0.189 in
0.063 in
0.059 - 0.063 in
0.374 in
Reverse Locking Support - 15.9 mm | 0.625 in ; UL94 V-2 ; PA6

RLCBSPR-10-01

Price Range
$0.4611 - $0.3843

Stock Levels
1000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
Reverse Locking Support - 8 mm | 0.313 in ; UL94 V-2 ; PA6

RLCBSPR-5-01

Price Range
$0.3921 - $0.3266

Stock Levels
1000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
Reverse Locking Support - 12.7 mm | 0.500 in ; UL94 V-2 ; PA6

RLCBSPR-8-01

Price Range
$0.4314 - $0.3594

Stock Levels
8000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
Reverse Locking Support - 14.3 mm | 0.563 in ; UL94 V-2 ; PA6

RLCBSPR-9-01

Price Range
$0.4461 - $0.3719

Stock Levels
1000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
Reverse Locking Support - 6.4 mm | 0.250 in ; UL94 V-2 ; PA6

RLCBSPR-4-01

Price Range
$0.3822 - $0.3186

Stock Levels
33000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
Reverse Locking Support - 11.1 mm | 0.438 in ; UL94 V-2 ; PA6

RLCBSPR-7-01

Price Range
$0.4161 - $0.3468

Stock Levels
1000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
Reverse Locking Support - 9.5 mm | 0.375 in ; UL94 V-2 ; PA6

RLCBSPR-6-01

Price Range
$0.4011 - $0.3344

Stock Levels
18000 In stock
Attributes
  • Hole Diameter A
    0.126 in
  • Hole Diameter B
    0.189 in
  • Locking Head Height A
    0.189 in
  • Maximum Operating Temperature
    185 °F
  • Maximum Panel Thickness A
    0.063 in
Quick View
View Product >
