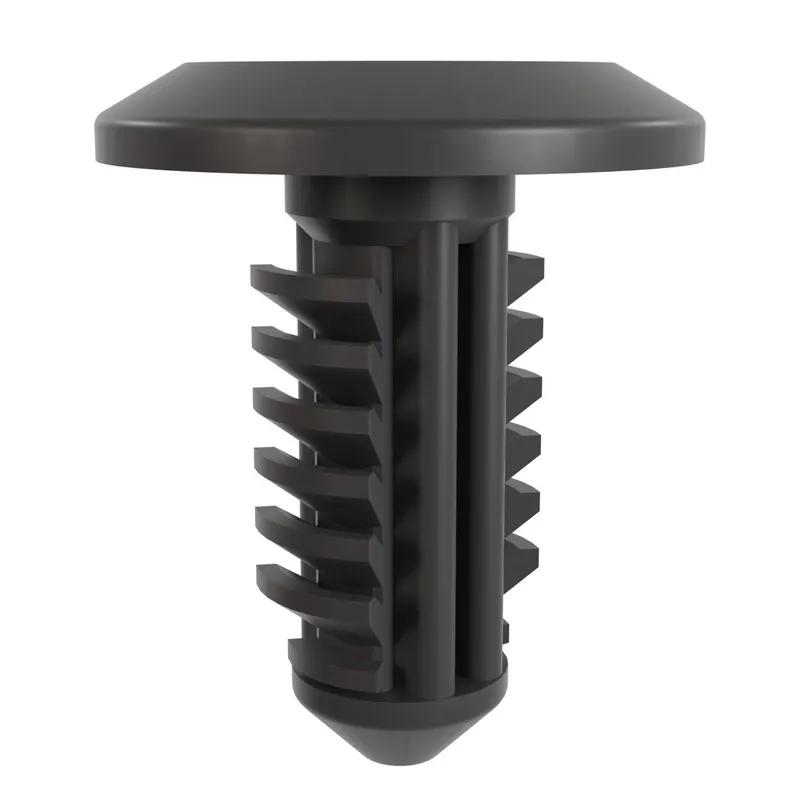

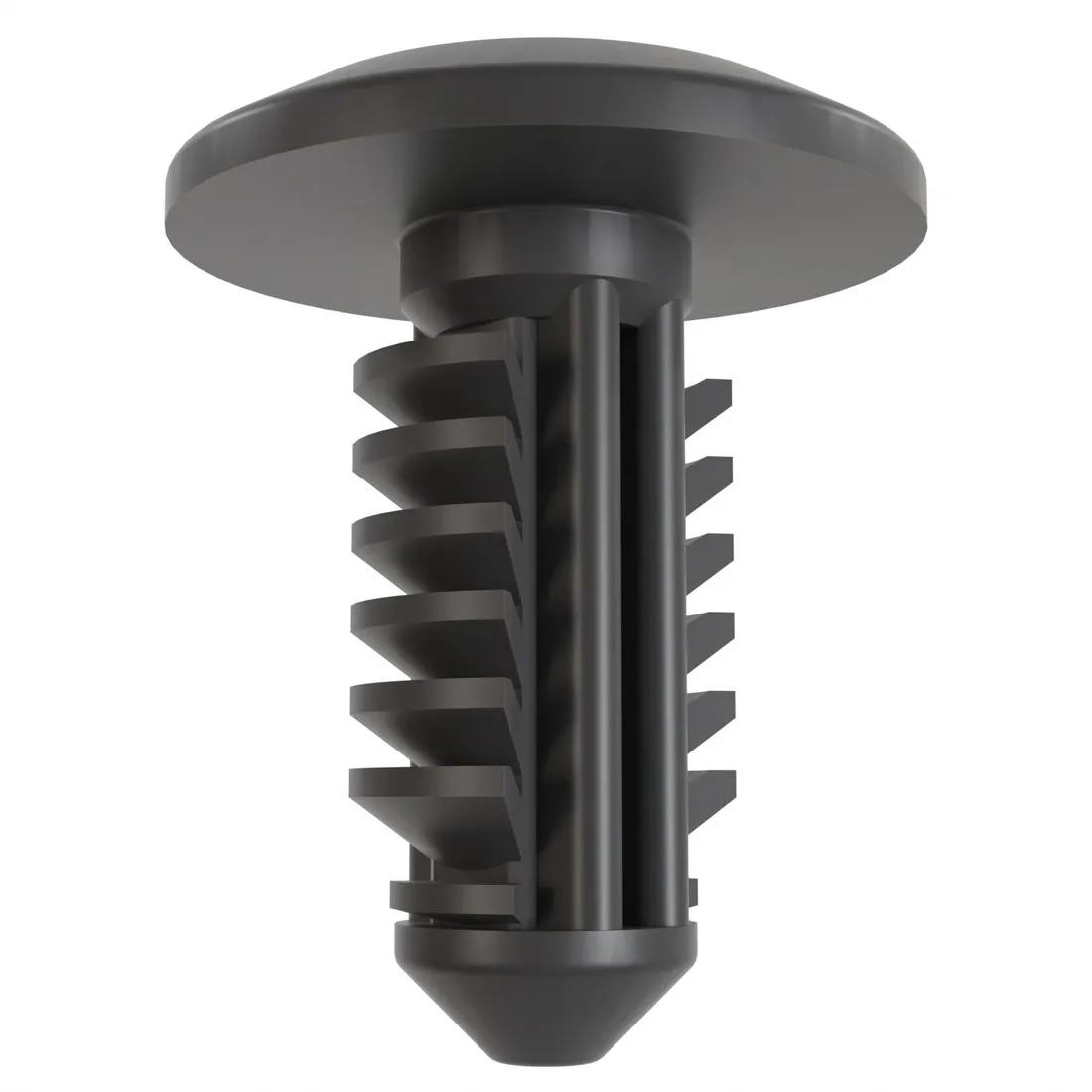

Fir Tree -; Compatible Hole Diameter 4.7 mm | 0.185 in; Compatible Panel Thickness Range 0.8 - 3 mm | 0.031 - 0.118 in;Black;Nylon
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Flame retardant properties.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.7974 |
| 5000 - 9999 | $0.6291 |
| 10000 - 24999 | $0.5417 |
| 25000 - 49999 | $0.4914 |
| 50000 + | $0.4262 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.48 in |
|---|---|
| Head Diameter | 0.453 in |
| Head Height | 0.071 in |
| Compatible Hole Diameter Range | 0.185 in |
| Compatible Panel Thickness Range | 0.031 - 0.118 in |
| Overall Height | 0.551 in |
| Colour | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-0 |
| Rivet Type | Fir Tree |
| Type | Type 2 |
| Rivet Head Shape | Pan |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
