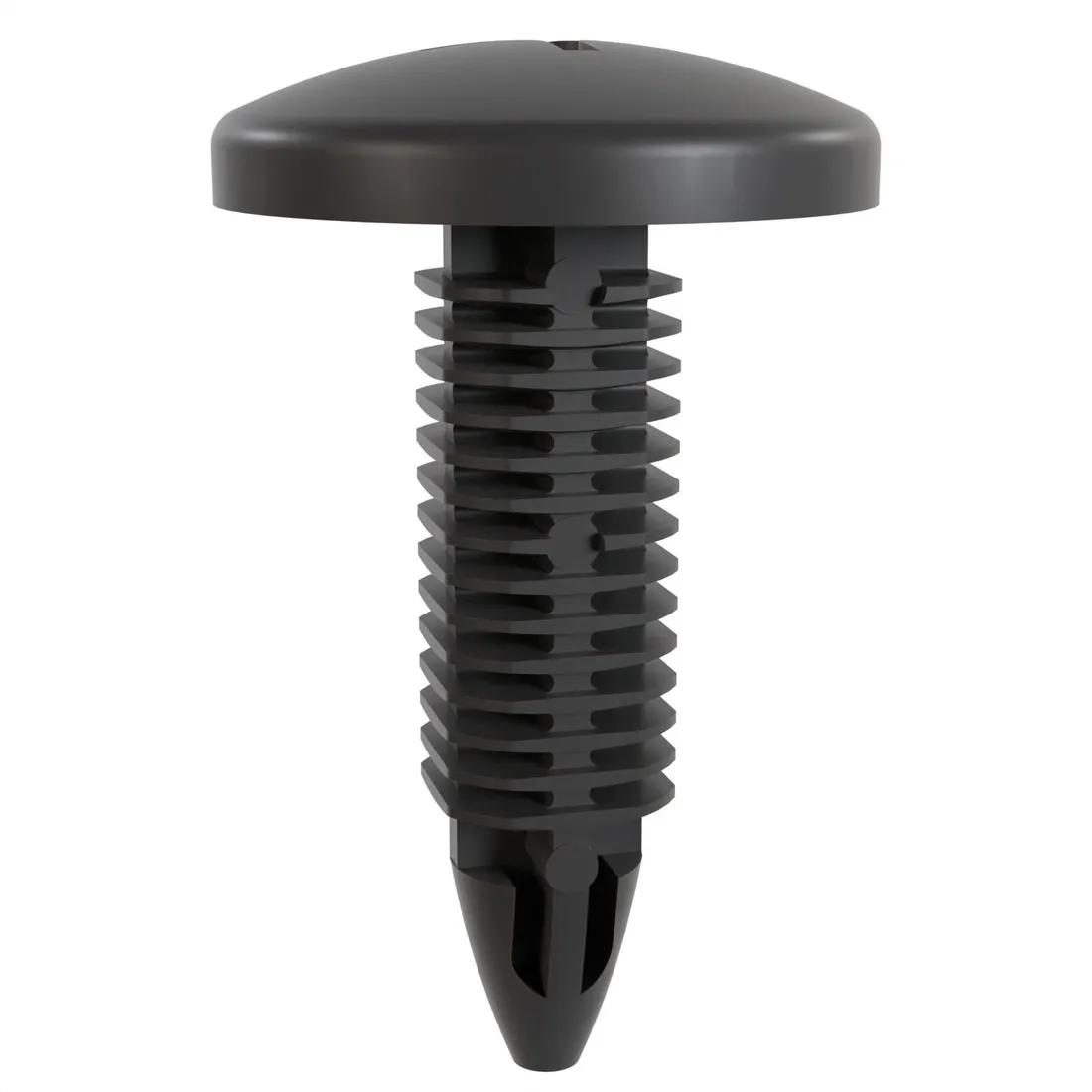

Fir Tree -; Compatible Hole Diameter 7.9 mm | 0.311 in; Compatible Panel Thickness Range 6.0 mm | 0.236 in;Black;Nylon

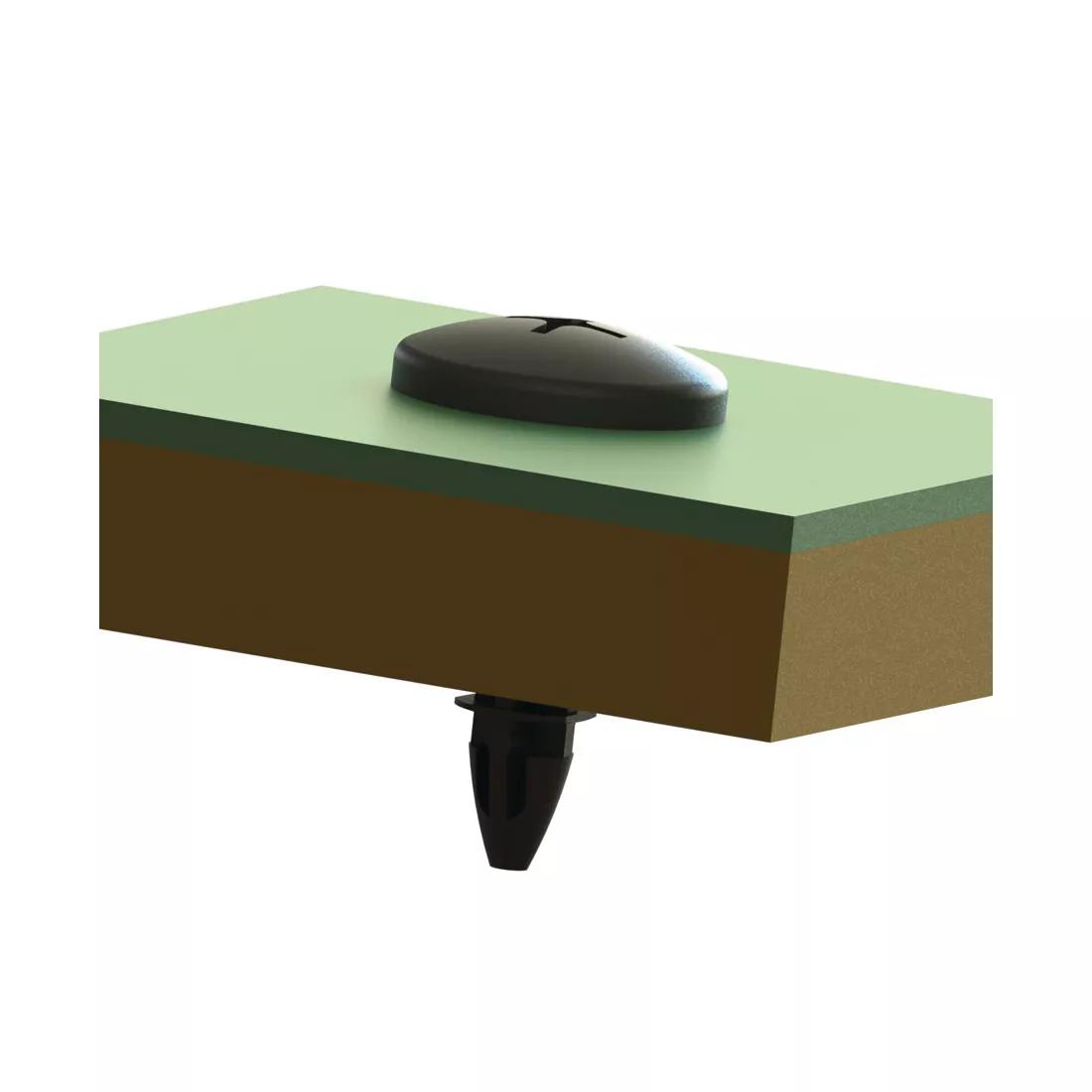

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly. Flame retardant properties.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.9183 |
| 5000 - 9999 | $0.7275 |
| 10000 - 24999 | $0.6264 |
| 25000 - 49999 | $0.5582 |
| 50000 + | $0.485 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.988 in |
|---|---|
| Head Diameter | 0.701 in |
| Head Height | 0.169 in |
| Compatible Hole Diameter Range | 0.276 in |
| Compatible Panel Thickness Range | 0.236 in |
| Overall Height | 1.157 in |
| Colour | Black |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-0 |
| Rivet Type | Fir Tree |
| Type | Type 3 |
| Rivet Head Shape | Truss |
| Drive Type | Cross Recess Drive |
| Rivet Fitting Style | Push-In |
