Fir Tree -; Compatible Hole Diameter 3.5 mm | 0.138 in; Compatible Panel Thickness Range 6.4 - 6.35 mm | 0.252 - 0.25 in;Natural;Nylon

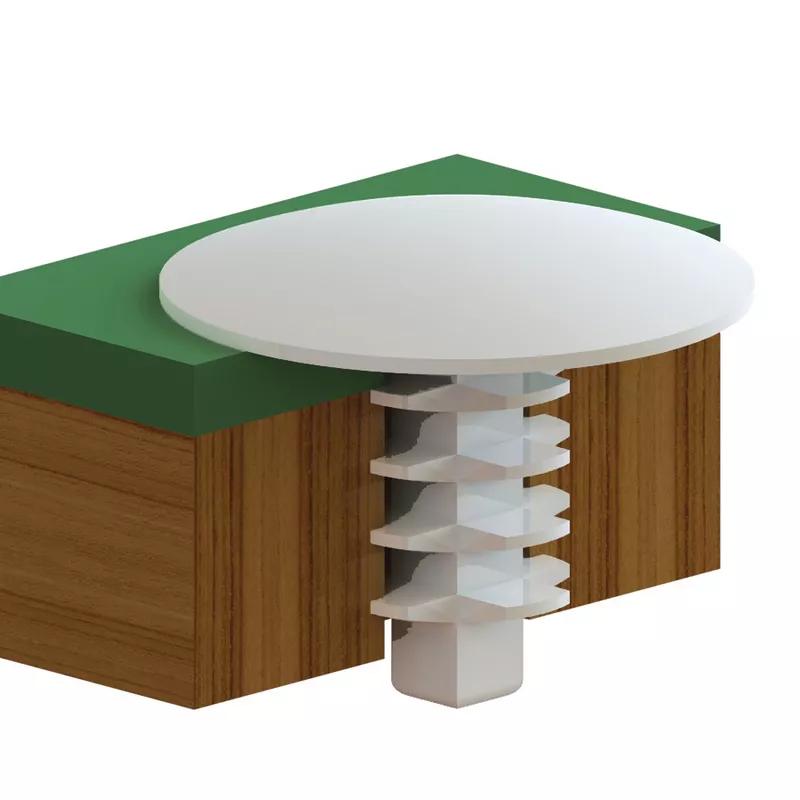

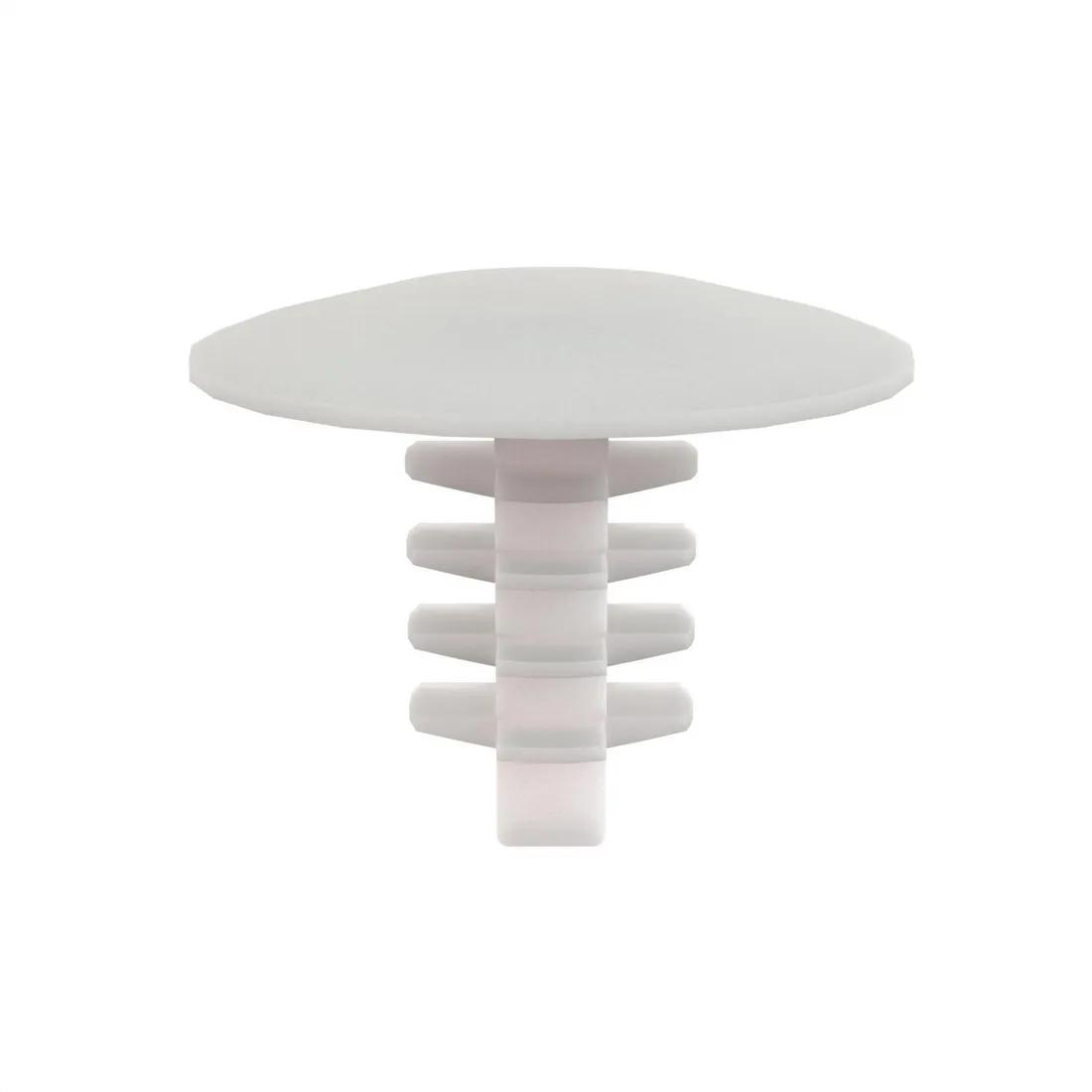

Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.29 |
| 10000 - 24999 | $0.2639 |
| 25000 + | $0.2418 |
Useful Information
Specifications
Imperial
Metric
| Anchor Length | 0.28 in |
|---|---|
| Head Diameter | 0.402 in |
| Head Height | 0.051 in |
| Compatible Hole Diameter Range | 0.138 in |
| Compatible Panel Thickness Range | 0.252 - 0.25 in |
| Overall Height | 0.331 in |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Rivet Type | Fir Tree |
| Type | Type 2 |
| Rivet Head Shape | Truss |
| Drive Type | Non Slotted Drive |
| Rivet Fitting Style | Push-In |
