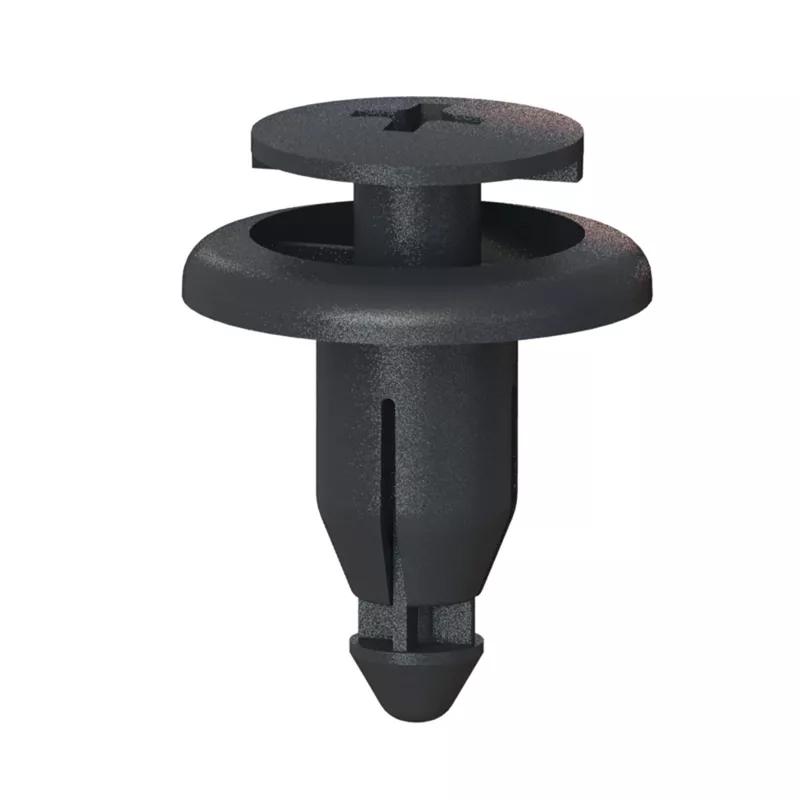

N/A - Black; Acetal; Compatible Panel Thickness Range 2 - 4.5 mm | 0.079 - 0.177 in
Snap-In Rivets can be quickly installed by hand. Pin is driven into the grommet, which expands as the pin is inserted. This provides a tight fit. Ideal for any application in need of a front-mount rivet.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.6398 |
| 10000 + | $0.4265 |
Useful Information
Documents
Specifications
Imperial
Metric
| Compatible Hole Diameter | 0.242 in |
|---|---|
| Compatible Panel Thickness Range | 0.079 - 0.177 in |
| Head Diameter | 0.551 in |
| Head Height | 0.075 in |
| Maximum Compatible Panel Thickness | 0.177 in |
| Maximum Operating Temperature | 212 °F |
| Minimum Compatible Panel Thickness | 0.079 in |
| Minimum Operating Temperature | -58 °F |
| Operating Temperature Range | -58 - 212 °F |
| Colour | Black |
| Full Material | Acetal |
| Material | Acetal |
| Material Flammability Standard | UL94 HB |
| Rivet Fitting Style | Push-In |
| Rivet Head Shape | Pan |
| Rivet Type | Flush Top |
| Type | 1 |
