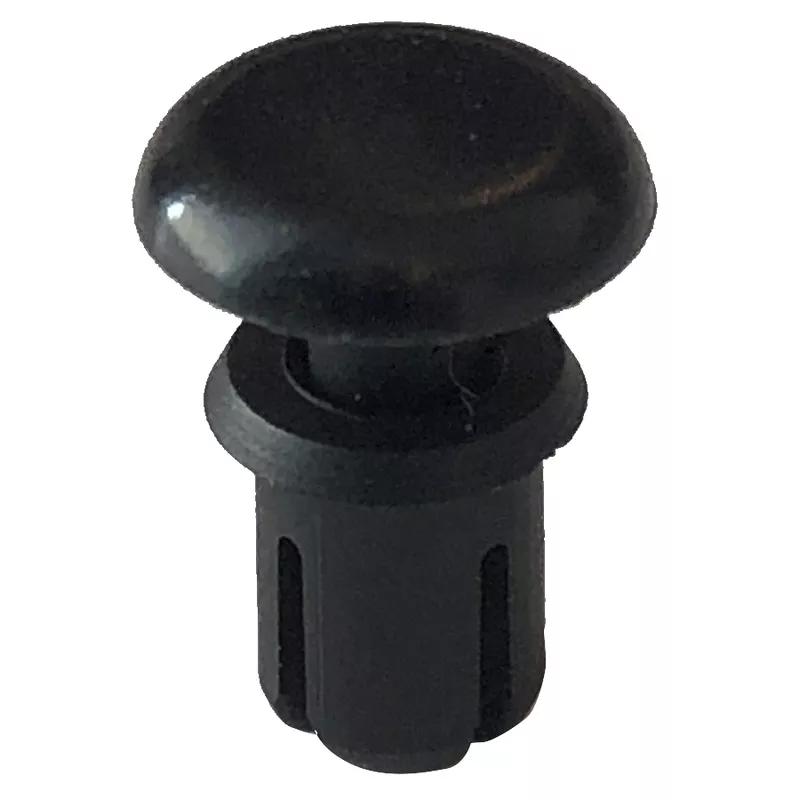

Snap Rivet - Black; Nylon; Compatible Hole Diameter Range 5.1 - 5.2 mm | 0.201 - 0.205 in

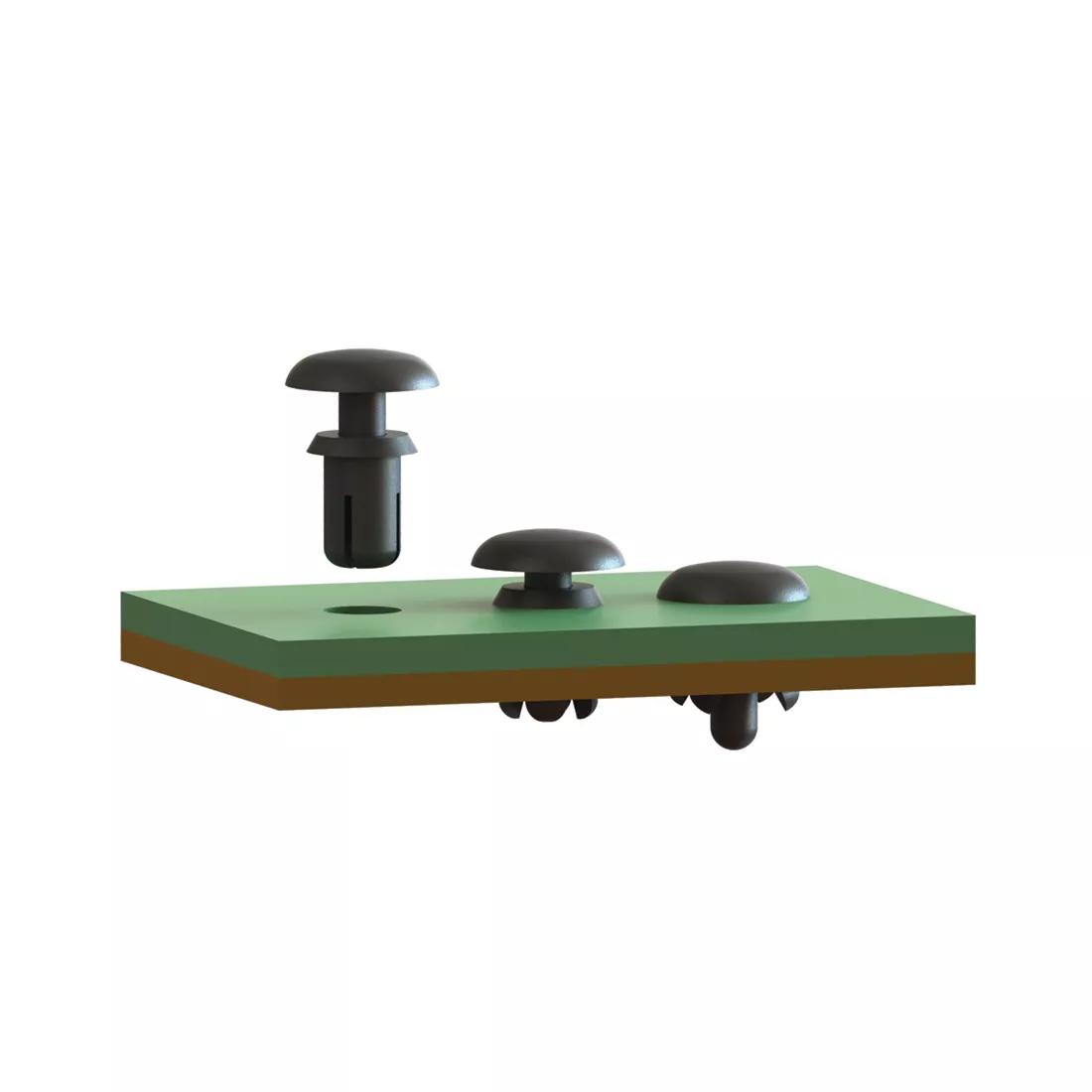

Snap Rivets are a quick and easy fastener solution that can be installed without tools! Fast and economical, they have specially designed legs that expand and firmly lock the component parts permanently in place. They fit with a simple push, and have a tidy and smooth finish. Ideal for panel fastening and server rack applications. They provide a solid connections by means of blind fixing.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.4527 |
| 5000 - 9999 | $0.3596 |
| 10000 - 24999 | $0.3083 |
| 25000 - 49999 | $0.279 |
| 50000 + | $0.2436 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 0.252 in |
|---|---|
| Pin Length | 0.256 in |
| Pin Head Diameter | 0.354 in |
| Pin Head Height | 0.087 in |
| Head Diameter | 0.197 in |
| Head Height | 0.055 in |
| Compatible Hole Diameter Range | 0.201 - 0.205 in |
| Compatible Panel Thickness Range | 0.098 - 0.138 in |
| Extraction Force | 25.0 kg |
| Colour | Black |
| Full Material | Nylon 6 |
| Rivet Type | Snap |
| Rivet Head Shape | Round |
| Rivet Fitting Style | Push-In |
| Material Flammability Standard | UL94 V-2 |
| Commodity Code | 3926909790 |
Product SR-5055B replaces:
Snap Rivet - Black;Nylon; Compatible Panel Thickness Range 2.5 - 3.5 mm | 0.098 - 0.138 in
Item code:
27SR197220
