Side Hinges

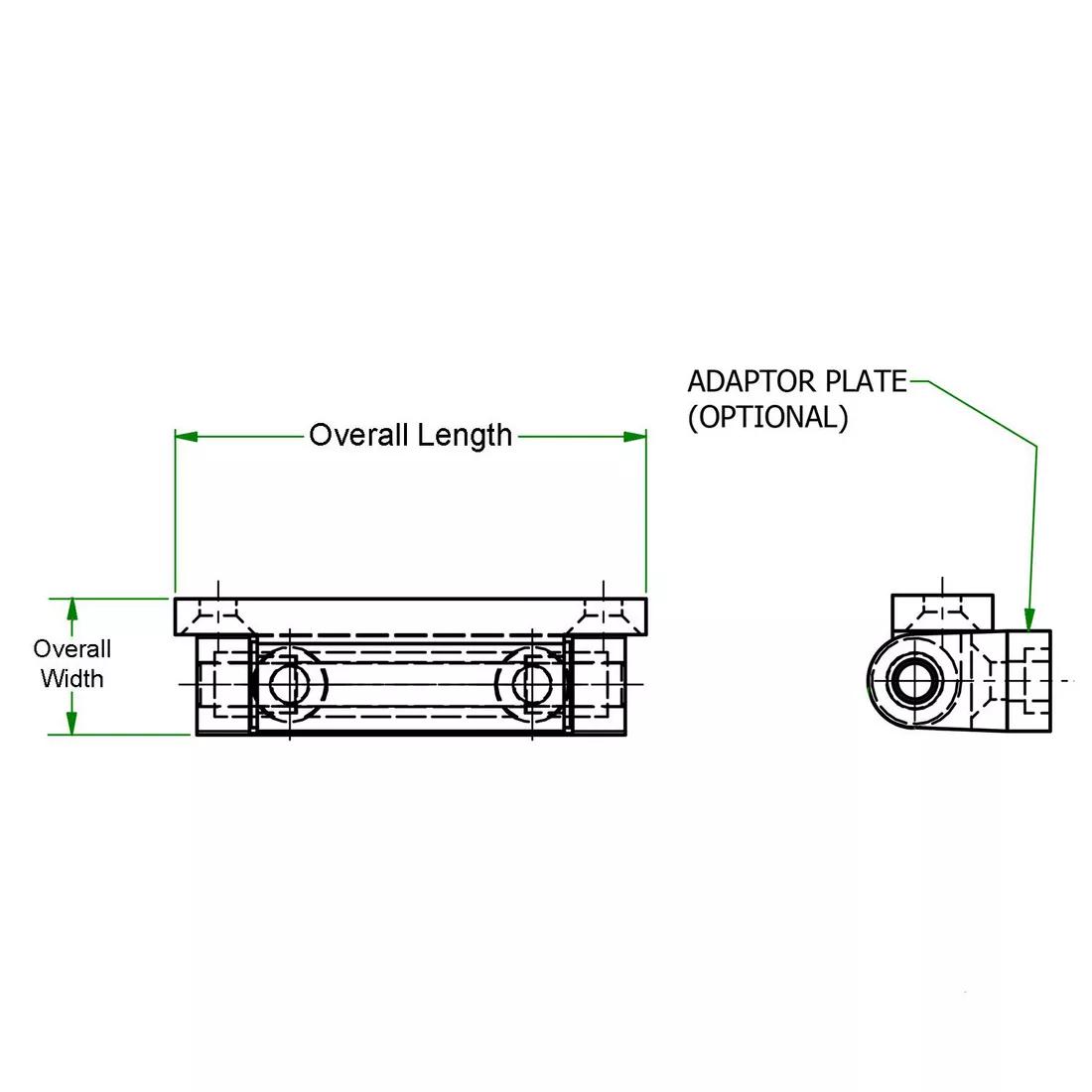

Side Hinges - Line Drawing

Side Hinges

In stock

Side Hinges offer a rotational angle of 180 degrees. Types 1 and 2 are high resistance hinges for medium and heavy door panels. They also offer high security and are assembled using the special screws provided. Type 3 is a lower cost, lower security alternative.

Print page
Request a quote

For large volumes and customized products, add to your cart and click request a quote orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
35 results

Sort by

None
Product SKUs information
Item Code Price range Availability Color Finish Overall Width View
$7.16 - $8.05 446 In stock
Silver
Nickel-Plated
0.551 in
$6.34 - $7.14 200 In stock
Brass
0.61 in
$13.75 - $15.48 278 In stock
Silver
Chrome Plated
0.63 in
$13.75 - $15.48 334 In stock
Silver
Chrome Plated
0.63 in
$10.79 - $12.14 340 In stock
Brass
0.63 in
$10.79 - $12.14 346 In stock
Brass
0.63 in
$5.92 - $6.64 582 In stock
Brass
0.551 in
$10.79 - $12.14 340 In stock
Brass
0.63 in
$10.79 - $12.14 102 In stock
Brass
0.63 in
$18.87 - $21.22 90 In stock
Silver
Chrome Plated
0.787 in
$10.79 - $12.14 403 In stock
Silver
Chrome Plated
0.591 in
$20.86 - $23.83 199 In stock
Silver
Zinc-Plated
0.709 in
$18.87 - $21.22 99 In stock
Brass
0.787 in
$10.79 - $12.14 340 In stock
Silver
Chrome Plated
0.63 in
$13.75 - $15.48 336 In stock
Silver
Chrome Plated
0.63 in
$6.17 - $7.03 50 In stock
Silver
Chrome Plated
0.669 in
$6.17 - $7.03 33 In stock
Black
Black Powder-Coated
0.669 in
$14.29 - $16.08 79 In stock
Silver
Chrome Plated
0.591 in
$7.94 - $8.90 31 In stock
Silver
Chrome Plated
0.551 in
$19.70 - $22.48 176 In stock
Silver
Chrome Plated
0.787 in
    • of 2
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 14.0 mm | 0.551 in ; Brass ; Nickel-Plated

09034

Price Range
$8.05 - $7.16

Stock Levels
446 In stock
Attributes
  • Leaf Thickness
    0.394 in
  • Overall Thickness
    0.551 in
  • Overall Width
    0.551 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 15.5 mm | 0.61 in ; Brass ;

09130

Price Range
$7.14 - $6.34

Stock Levels
200 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.61 in
  • Overall Width
    0.61 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 90 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ; Chrome Plated

09231890

Price Range
$15.48 - $13.75

Stock Levels
278 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ; Chrome Plated

092318180

Price Range
$15.48 - $13.75

Stock Levels
334 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 90 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ;

09230690

Price Range
$12.14 - $10.79

Stock Levels
340 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ;

092306180

Price Range
$12.14 - $10.79

Stock Levels
346 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 14.0 mm | 0.551 in ; Brass ;

09030

Price Range
$6.64 - $5.92

Stock Levels
582 In stock
Attributes
  • Leaf Thickness
    0.394 in
  • Overall Thickness
    0.551 in
  • Overall Width
    0.551 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 90 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ;

09230890

Price Range
$12.14 - $10.79

Stock Levels
340 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ;

092308180

Price Range
$12.14 - $10.79

Stock Levels
102 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 100 ° ; Overall Width - 20.0 mm | 0.787 in ; Brass ; Chrome Plated

09331

Price Range
$21.22 - $18.87

Stock Levels
90 In stock
Attributes
  • Leaf Thickness
    0.63 in
  • Overall Thickness
    0.787 in
  • Overall Width
    0.787 in
  • Body Material
    Brass
  • Color
    Silver
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 15.0 mm | 0.591 in ; Brass ; Chrome Plated

19231

Price Range
$12.14 - $10.79

Stock Levels
403 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.787 in
  • Overall Width
    0.591 in
  • Body Material
    Brass
  • Color
    Silver
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 18.0 mm | 0.709 in ; Steel ; Zinc-Plated

89363M

Price Range
$23.83 - $20.86

Stock Levels
199 In stock
Attributes
  • Leaf Thickness
    0.63 in
  • Overall Length
    1.929 in
  • Overall Thickness
    0.709 in
  • Overall Width
    0.709 in
  • Stud Length
    0.551 in
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 100 ° ; Overall Width - 20.0 mm | 0.787 in ; Brass ;

09330

Price Range
$21.22 - $18.87

Stock Levels
99 In stock
Attributes
  • Leaf Thickness
    0.63 in
  • Overall Thickness
    0.787 in
  • Overall Width
    0.787 in
  • Body Material
    Brass
  • Color
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 90 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ; Chrome Plated

09231690

Price Range
$12.14 - $10.79

Stock Levels
340 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 16.0 mm | 0.63 in ; Brass ; Chrome Plated

092316180

Price Range
$15.48 - $13.75

Stock Levels
336 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.63 in
  • Overall Width
    0.63 in
  • Stud Length
    0.394 in
  • Body Material
    Brass
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 17.0 mm | 0.669 in ; Zinc Alloy ; Chrome-Plated

493111M

Price Range
$7.03 - $6.17

Stock Levels
50 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Length
    2.539 in
  • Overall Thickness
    0.669 in
  • Overall Width
    0.669 in
  • Body Material
    Zinc Alloy
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 17.0 mm | 0.669 in ; Zinc Alloy ; Black Powder-Coated

493121M

Price Range
$7.03 - $6.17

Stock Levels
33 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Length
    2.539 in
  • Overall Thickness
    0.669 in
  • Overall Width
    0.669 in
  • Body Material
    Zinc Alloy
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 15.0 mm | 0.591 in ; Brass ; Chrome Plated

19331

Price Range
$16.08 - $14.29

Stock Levels
79 In stock
Attributes
  • Leaf Thickness
    0.472 in
  • Overall Thickness
    0.787 in
  • Overall Width
    0.591 in
  • Body Material
    Brass
  • Color
    Silver
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 14.0 mm | 0.551 in ; Zinc Alloy ; Chrome Plated

5931125

Price Range
$8.90 - $7.94

Stock Levels
31 In stock
Attributes
  • Leaf Thickness
    0.551 in
  • Overall Length
    2.598 in
  • Overall Thickness
    1.004 in
  • Overall Width
    0.551 in
  • Body Material
    Zinc Alloy
Quick View
View Product >
Side Mount Hinge - Maximum Rotation - 180 ° ; Overall Width - 20.0 mm | 0.787 in ; Brass ; Chrome Plated

39331

Price Range
$22.48 - $19.70

Stock Levels
176 In stock
Attributes
  • Overall Length
    3.15 in
  • Overall Thickness
    0.787 in
  • Overall Width
    0.787 in
  • Body Material
    Brass
  • Color
    Silver
Quick View
View Product >
