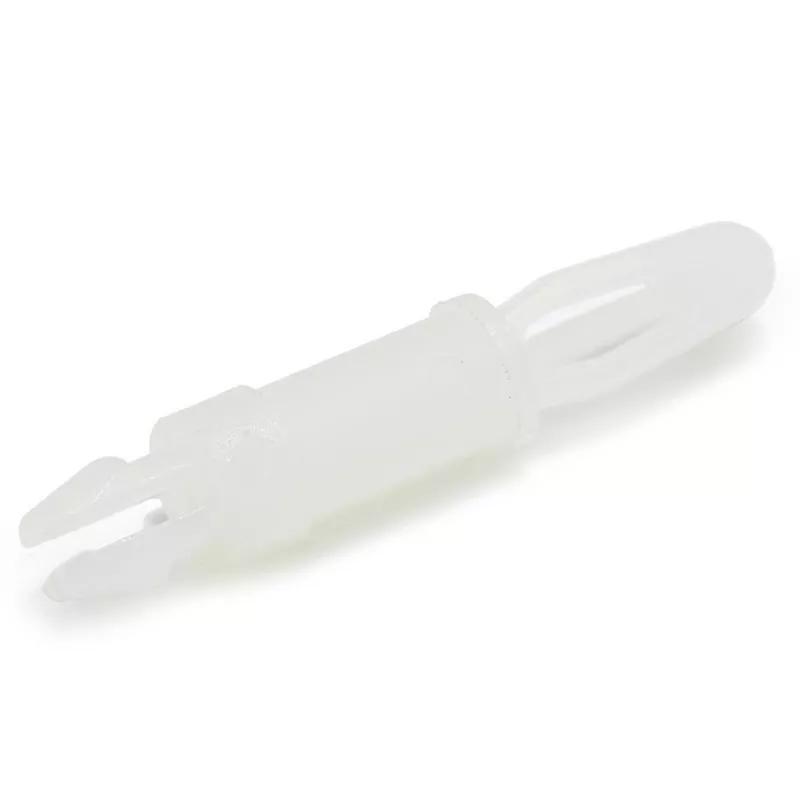

Snap Lock Support 6.4 mm PA UL94 V-2 Natural
Type 1 LCBST. This solid body locking circuit board support provides the necessary safety to your application and is a tool-free installation component. The winged base gives extra stability. Made from natural Nylon 6/6, RMS-01 that is rated UL94 V-2.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 2,4234 |
| 5000 - 9999 | R 1,8702 |
| 10000 - 24999 | R 1,6469 |
| 25000 + | R 1,4515 |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Hole A Fix Type | Locking Bayonet Fix |
| Hole B Fix Type | Locking Teardrop Fix |
| Body Diameter | 4.4 mm |
| Hole Diameter A | 3.2 mm |
| Hole Diameter B | 2.5 mm |
| Locking Head Height B | 2.0 mm |
| Panel Thickness A Range | 1.6 - 1.6 mm |
| Panel Thickness B Range | 1.6 - 1.6 mm |
| Spacer Length | 6.4 mm |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Commodity Code | 3926909790 |
